Century Spring

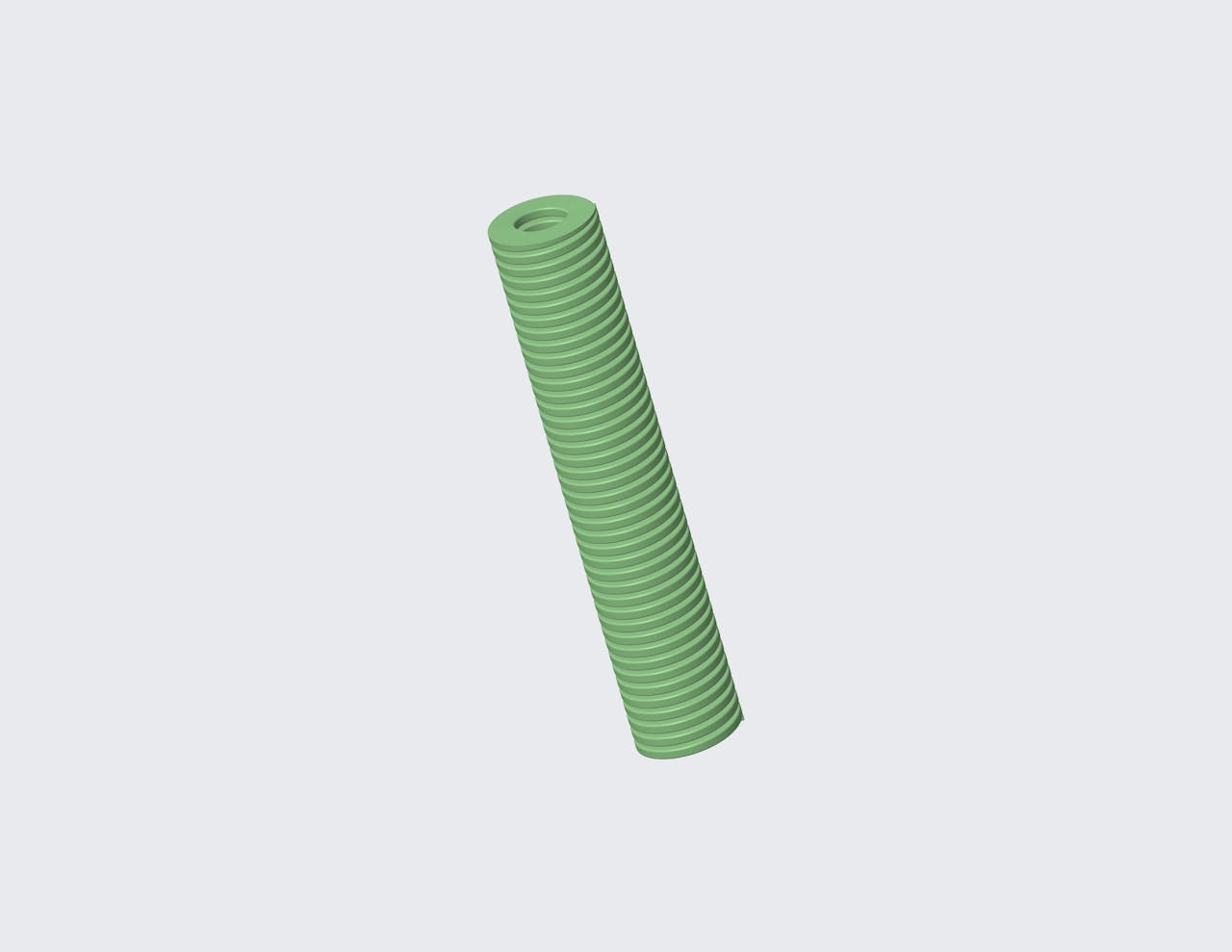

D-305524CS - 152 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 152 Millimeter long and has a 53.1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.1969 in
Deflection 2 1.4961 in
Deflection 3 1.7953 in
Display Name D-305524
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 5.9843 in
Hole Size 0.9843 in
Load 1 362.6349 lbf
Load 2 453.2374 lbf
Load 3 544.0647 lbf
Load At Max Deflection 658.4982 lbf
Material Chrome Silicon
Max Deflection 2.1732 in
Measurement Units Metric
Rate 303.2553 lbs/in
Rod Size 0.4921 in
SKU D-305524CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 30.4 mm
Deflection 2 38 mm
Deflection 3 45.6 mm
Display Name D-305524
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 152 mm
Hole Size 25 mm
Load 1 1613 N
Load 2 2016 N
Load 3 2420 N
Load At Max Deflection 2929 N
Material Chrome Silicon
Max Deflection 55.2 mm
Measurement Units Metric
Rate 53.1 N/mm
Rod Size 12.5 mm
SKU D-305524CS
