Century Spring

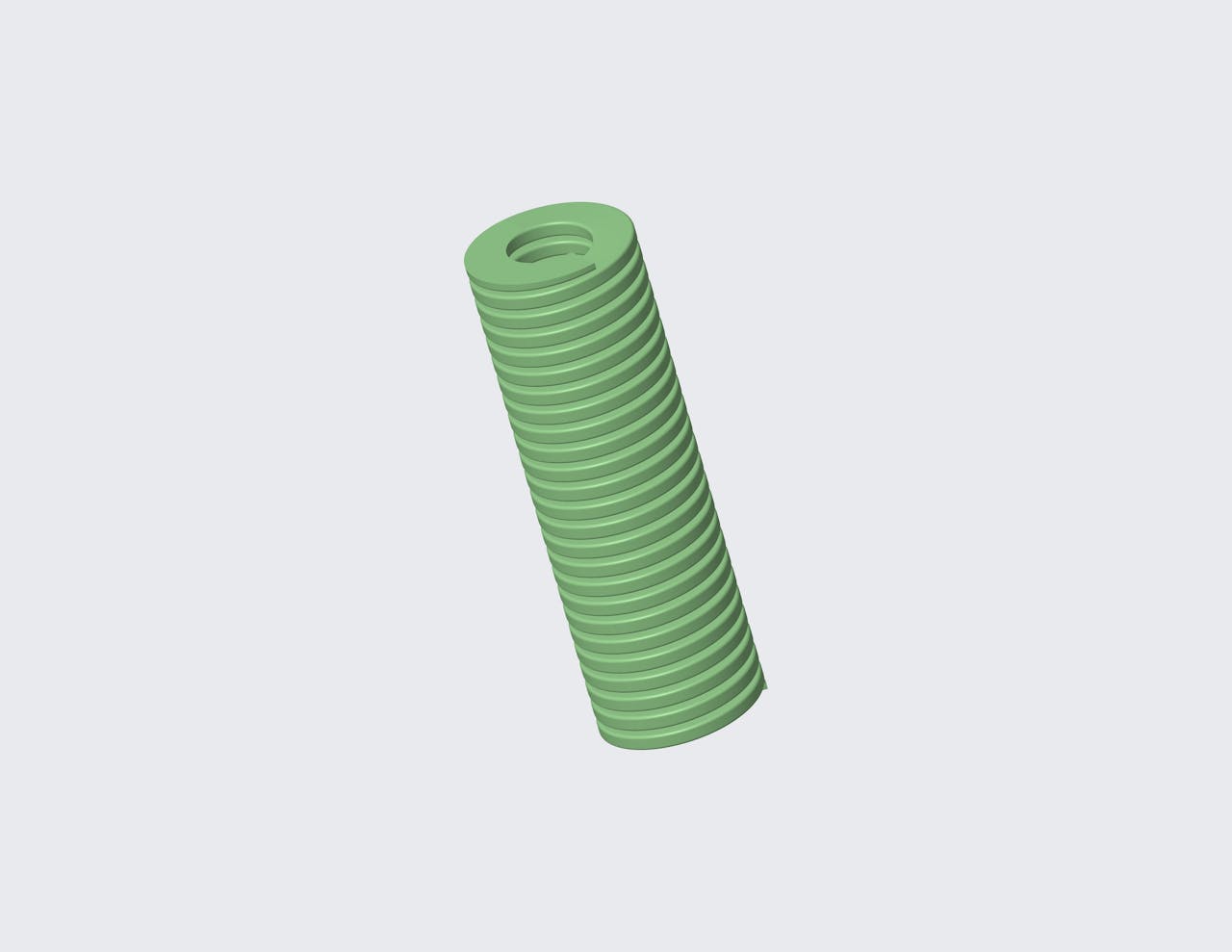

D-305514CS - 89 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 89 Millimeter long and has a 90.1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.7008 in
Deflection 2 0.878 in
Deflection 3 1.0512 in
Display Name D-305514
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 3.5039 in
Hole Size 0.9843 in
Load 1 360.3867 lbf
Load 2 450.5396 lbf
Load 3 540.6924 lbf
Load At Max Deflection 611.5108 lbf
Material Chrome Silicon
Max Deflection 1.189 in
Measurement Units Metric
Rate 514.5631 lbs/in
Rod Size 0.4921 in
SKU D-305514CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 17.8 mm
Deflection 2 22.3 mm
Deflection 3 26.7 mm
Display Name D-305514
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 89 mm
Hole Size 25 mm
Load 1 1603 N
Load 2 2004 N
Load 3 2405 N
Load At Max Deflection 2720 N
Material Chrome Silicon
Max Deflection 30.2 mm
Measurement Units Metric
Rate 90.1 N/mm
Rod Size 12.5 mm
SKU D-305514CS
