Century Spring

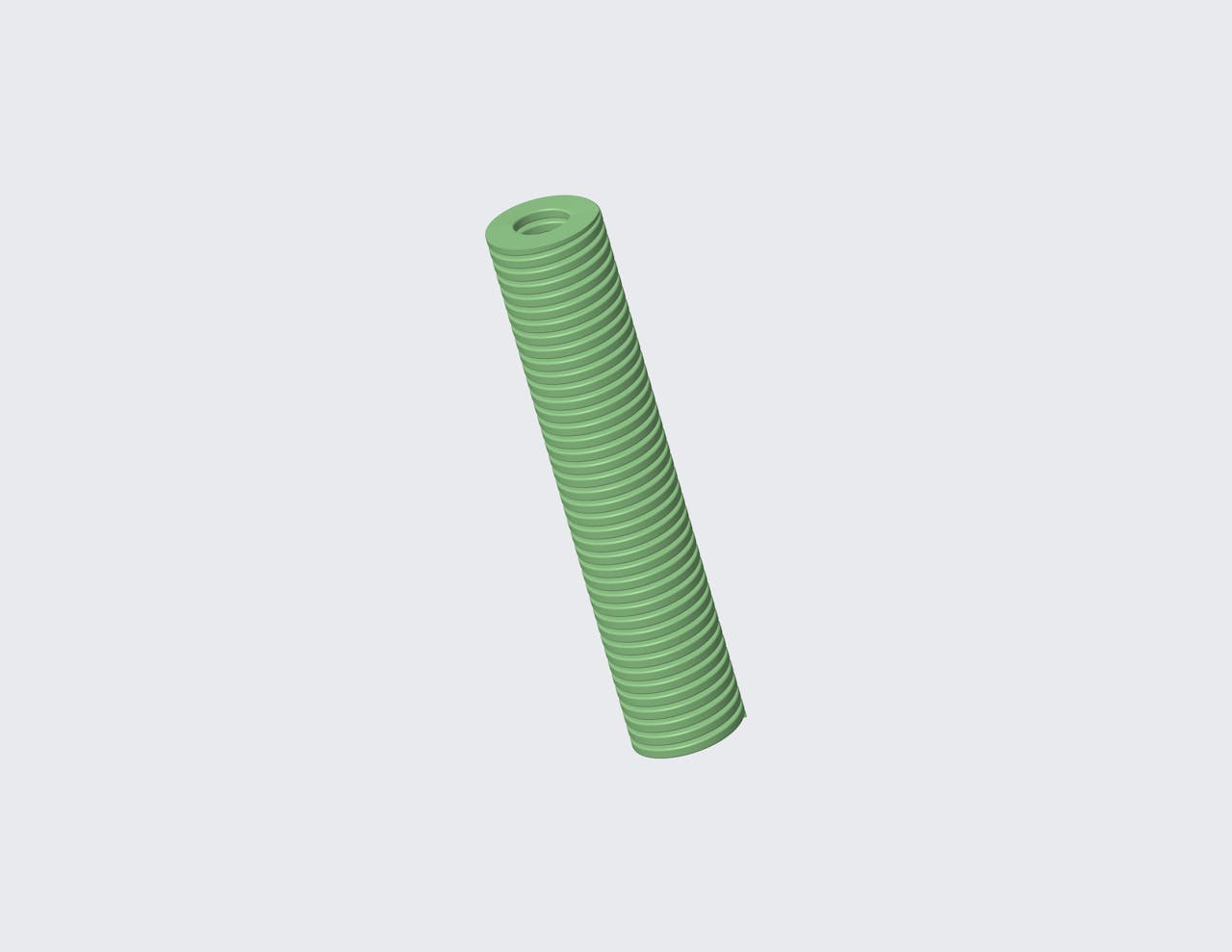

D-305418CS - 114 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 114 Millimeter long and has a 41.9 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.8976 in
Deflection 2 1.122 in
Deflection 3 1.3465 in
Display Name D-305418
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 4.4882 in
Hole Size 0.7874 in
Load 1 216.5018 lbf
Load 2 270.6835 lbf
Load 3 324.8651 lbf
Load At Max Deflection 372.7518 lbf
Material Chrome Silicon
Max Deflection 1.5591 in
Measurement Units Metric
Rate 239.2918 lbs/in
Rod Size 0.3937 in
SKU D-305418CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 22.8 mm
Deflection 2 28.5 mm
Deflection 3 34.2 mm
Display Name D-305418
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 114 mm
Hole Size 20 mm
Load 1 963 N
Load 2 1204 N
Load 3 1445 N
Load At Max Deflection 1658 N
Material Chrome Silicon
Max Deflection 39.6 mm
Measurement Units Metric
Rate 41.9 N/mm
Rod Size 10 mm
SKU D-305418CS
