Century Spring

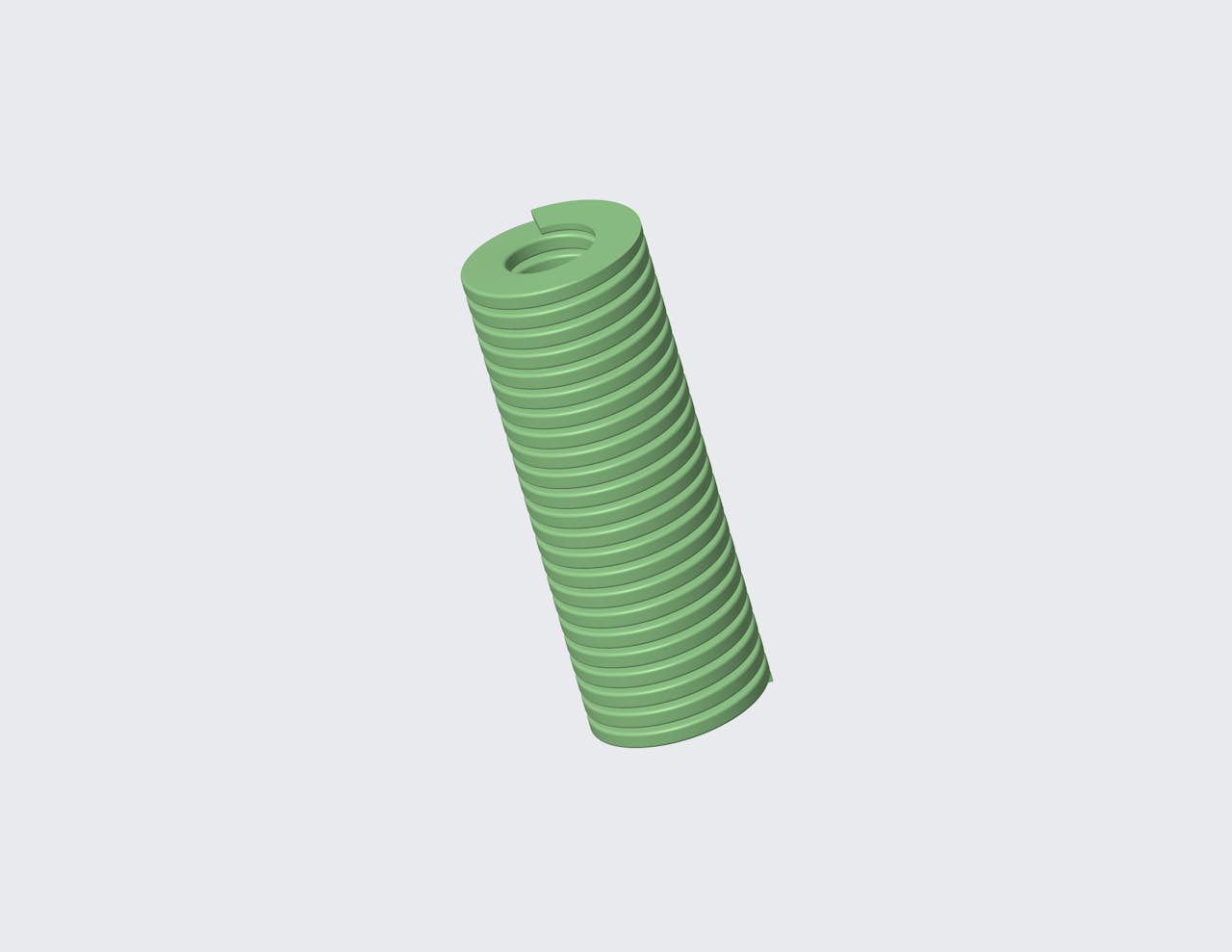

D-305410CS - 64 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 64 Millimeter long and has a 74.2 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5039 in
Deflection 2 0.6299 in
Deflection 3 0.7559 in
Display Name D-305410
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 2.5197 in
Hole Size 0.7874 in
Load 1 213.5791 lbf
Load 2 266.8615 lbf
Load 3 320.3687 lbf
Load At Max Deflection 333.6331 lbf
Material Chrome Silicon
Max Deflection 0.7874 in
Measurement Units Metric
Rate 423.7579 lbs/in
Rod Size 0.3937 in
SKU D-305410CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 12.8 mm
Deflection 2 16 mm
Deflection 3 19.2 mm
Display Name D-305410
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 64 mm
Hole Size 20 mm
Load 1 950 N
Load 2 1187 N
Load 3 1425 N
Load At Max Deflection 1484 N
Material Chrome Silicon
Max Deflection 20 mm
Measurement Units Metric
Rate 74.2 N/mm
Rod Size 10 mm
SKU D-305410CS
