Century Spring

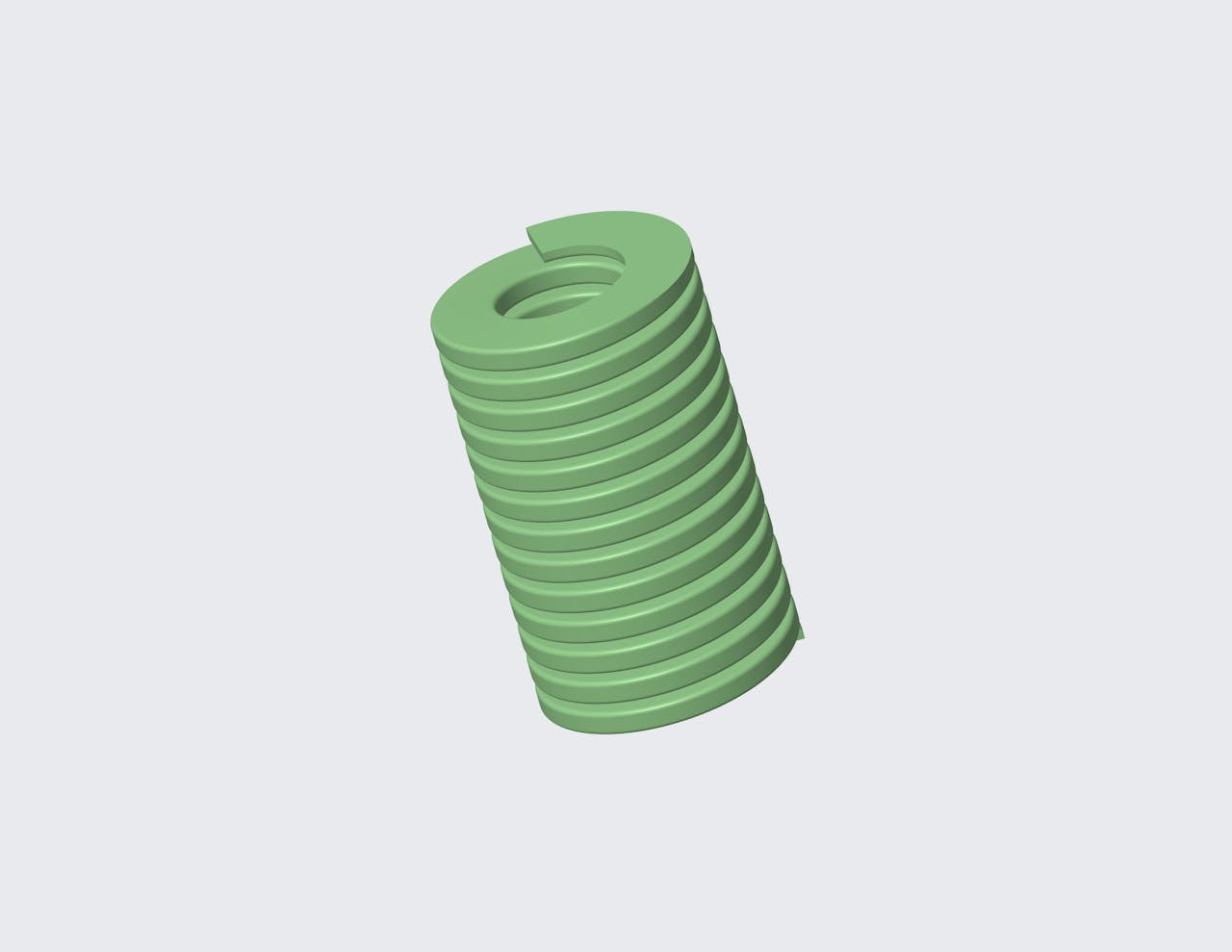

D-305406CS - 38 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 38 Millimeter long and has a 136.6 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.2992 in
Deflection 2 0.374 in
Deflection 3 0.4488 in
Display Name D-305406
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 1.4961 in
Hole Size 0.7874 in
Load 1 233.3633 lbf
Load 2 291.8165 lbf
Load 3 350.045 lbf
Load At Max Deflection 386.9155 lbf
Material Chrome Silicon
Max Deflection 0.4961 in
Measurement Units Metric
Rate 780.1256 lbs/in
Rod Size 0.3937 in
SKU D-305406CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 7.6 mm
Deflection 2 9.5 mm
Deflection 3 11.4 mm
Display Name D-305406
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 38 mm
Hole Size 20 mm
Load 1 1038 N
Load 2 1298 N
Load 3 1557 N
Load At Max Deflection 1721 N
Material Chrome Silicon
Max Deflection 12.6 mm
Measurement Units Metric
Rate 136.6 N/mm
Rod Size 10 mm
SKU D-305406CS
