Century Spring

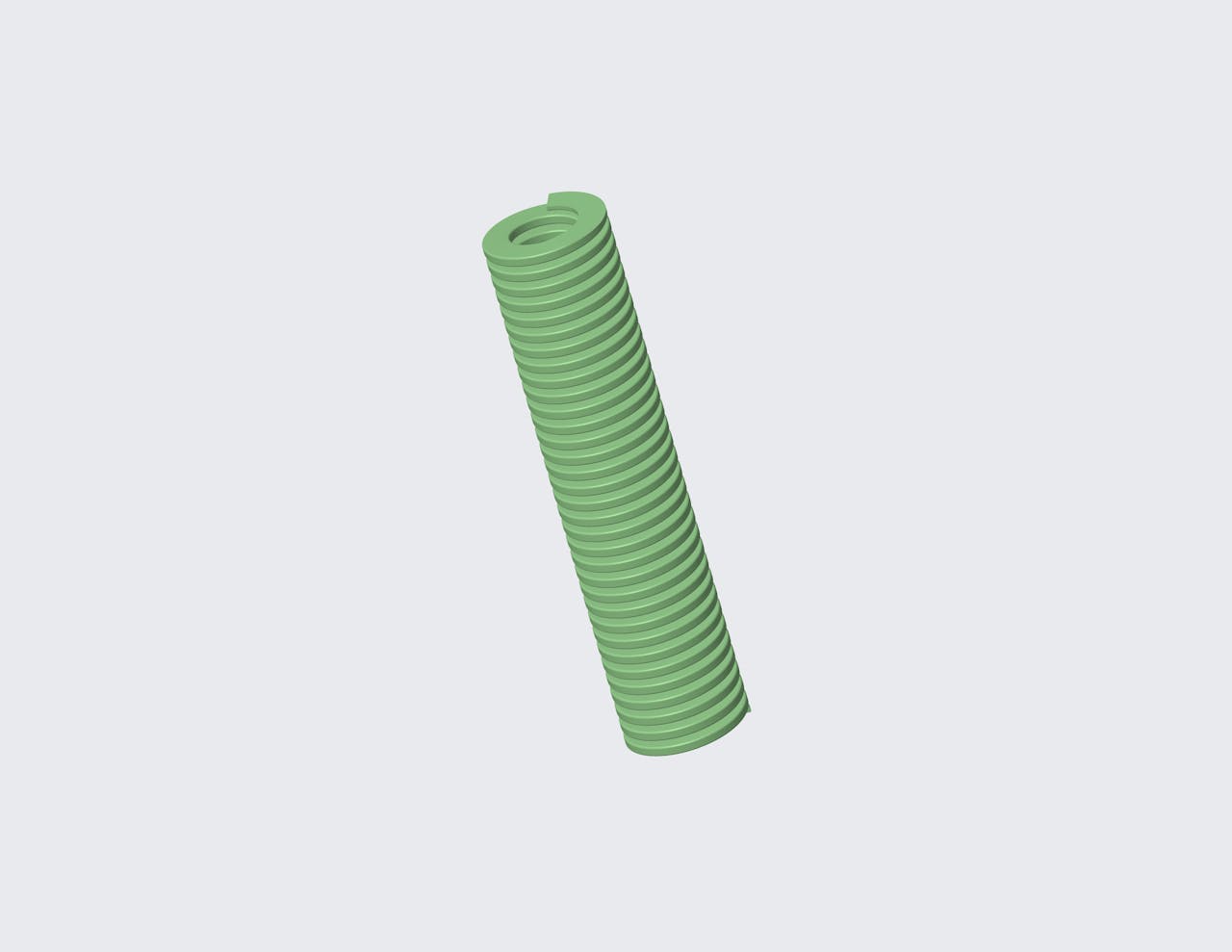

D-305310CS - 64 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 64 Millimeter long and has a 29.4 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5039 in
Deflection 2 0.6299 in
Deflection 3 0.7559 in
Display Name D-305310
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 2.5197 in
Hole Size 0.6299 in
Load 1 84.7572 lbf
Load 2 105.8903 lbf
Load 3 127.0234 lbf
Load At Max Deflection 179.4065 lbf
Material Chrome Silicon
Max Deflection 1.0669 in
Measurement Units Metric
Rate 167.9041 lbs/in
Rod Size 0.3346 in
SKU D-305310CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 12.8 mm
Deflection 2 16 mm
Deflection 3 19.2 mm
Display Name D-305310
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 64 mm
Hole Size 16 mm
Load 1 377 N
Load 2 471 N
Load 3 565 N
Load At Max Deflection 798 N
Material Chrome Silicon
Max Deflection 27.1 mm
Measurement Units Metric
Rate 29.4 N/mm
Rod Size 8.5 mm
SKU D-305310CS
