Century Spring

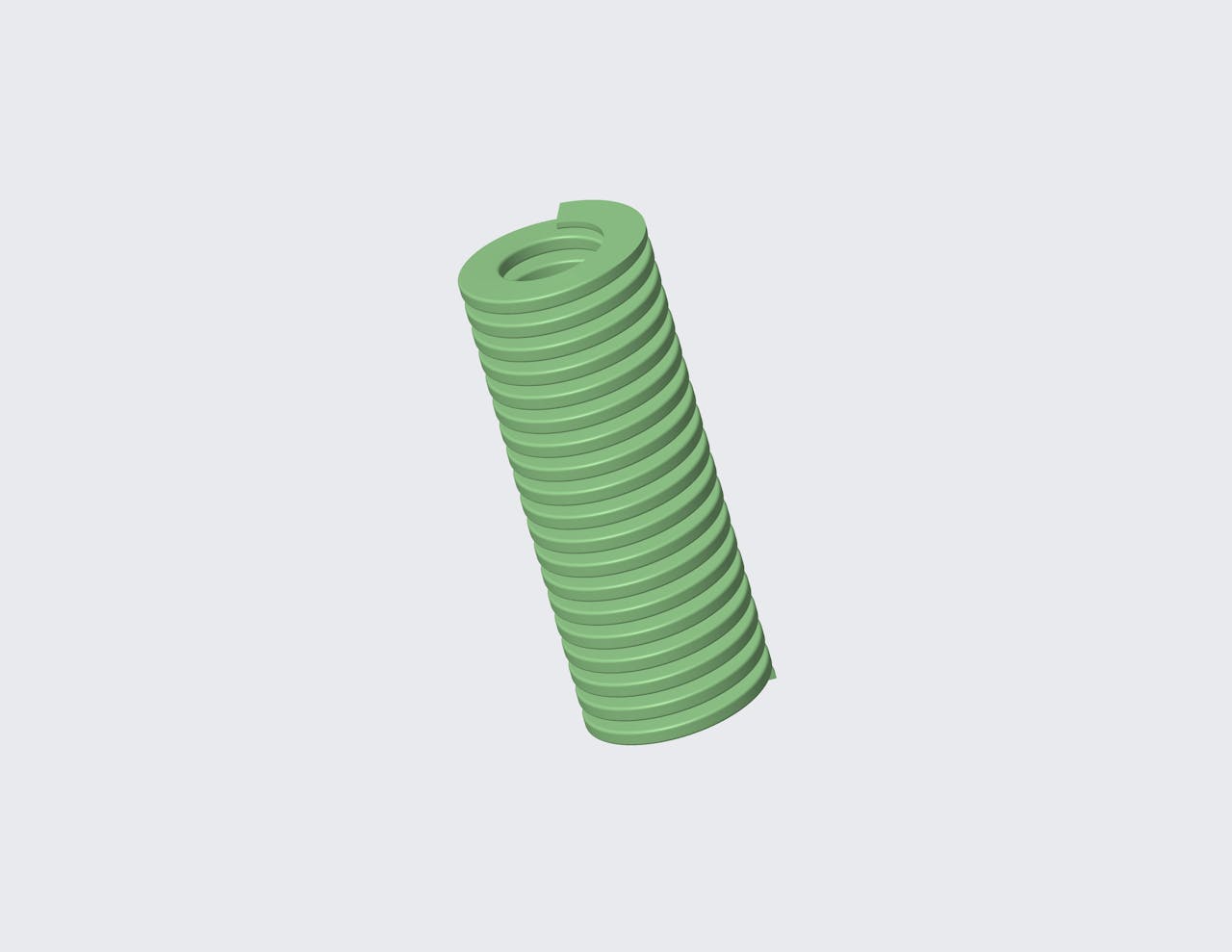

D-305306CS - 38 Millimeter Heavy Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Heavy duty. This spring is 38 Millimeter long and has a 50.7 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.2992 in
Deflection 2 0.374 in
Deflection 3 0.4488 in
Display Name D-305306
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 1.4961 in
Hole Size 0.6299 in
Load 1 86.5558 lbf
Load 2 108.3633 lbf
Load 3 129.946 lbf
Load At Max Deflection 176.7086 lbf
Material Chrome Silicon
Max Deflection 0.6102 in
Measurement Units Metric
Rate 289.5488 lbs/in
Rod Size 0.3346 in
SKU D-305306CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 7.6 mm
Deflection 2 9.5 mm
Deflection 3 11.4 mm
Display Name D-305306
Duty Load Heavy
Finish Powder Coat
Finish Color Red
Free Length 38 mm
Hole Size 16 mm
Load 1 385 N
Load 2 482 N
Load 3 578 N
Load At Max Deflection 786 N
Material Chrome Silicon
Max Deflection 15.5 mm
Measurement Units Metric
Rate 50.7 N/mm
Rod Size 8.5 mm
SKU D-305306CS
