Century Spring

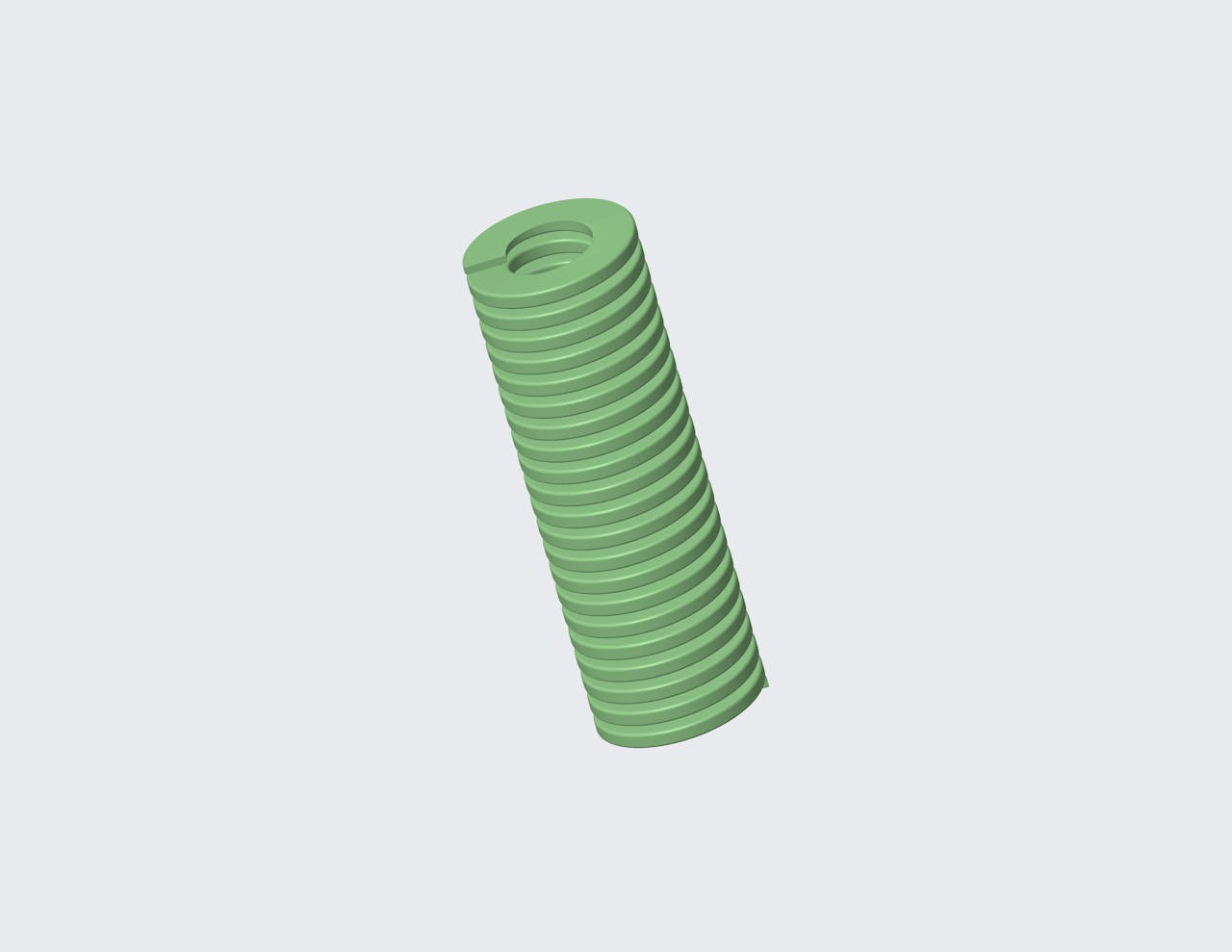

D-304828CS - 178 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 178 Millimeter long and has a 65.9 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.752 in
Deflection 2 2.1024 in
Deflection 3 2.8031 in
Display Name D-304828
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 7.0079 in
Hole Size 1.9685 in
Load 1 658.9478 lbf
Load 2 790.6924 lbf
Load 3 1054.4065 lbf
Load At Max Deflection 1113.5342 lbf
Material Chrome Silicon
Max Deflection 2.9606 in
Measurement Units Metric
Rate 376.3564 lbs/in
Rod Size 0.9843 in
SKU D-304828CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 44.5 mm
Deflection 2 53.4 mm
Deflection 3 71.2 mm
Display Name D-304828
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 178 mm
Hole Size 50 mm
Load 1 2931 N
Load 2 3517 N
Load 3 4690 N
Load At Max Deflection 4953 N
Material Chrome Silicon
Max Deflection 75.2 mm
Measurement Units Metric
Rate 65.9 N/mm
Rod Size 25 mm
SKU D-304828CS
