Century Spring

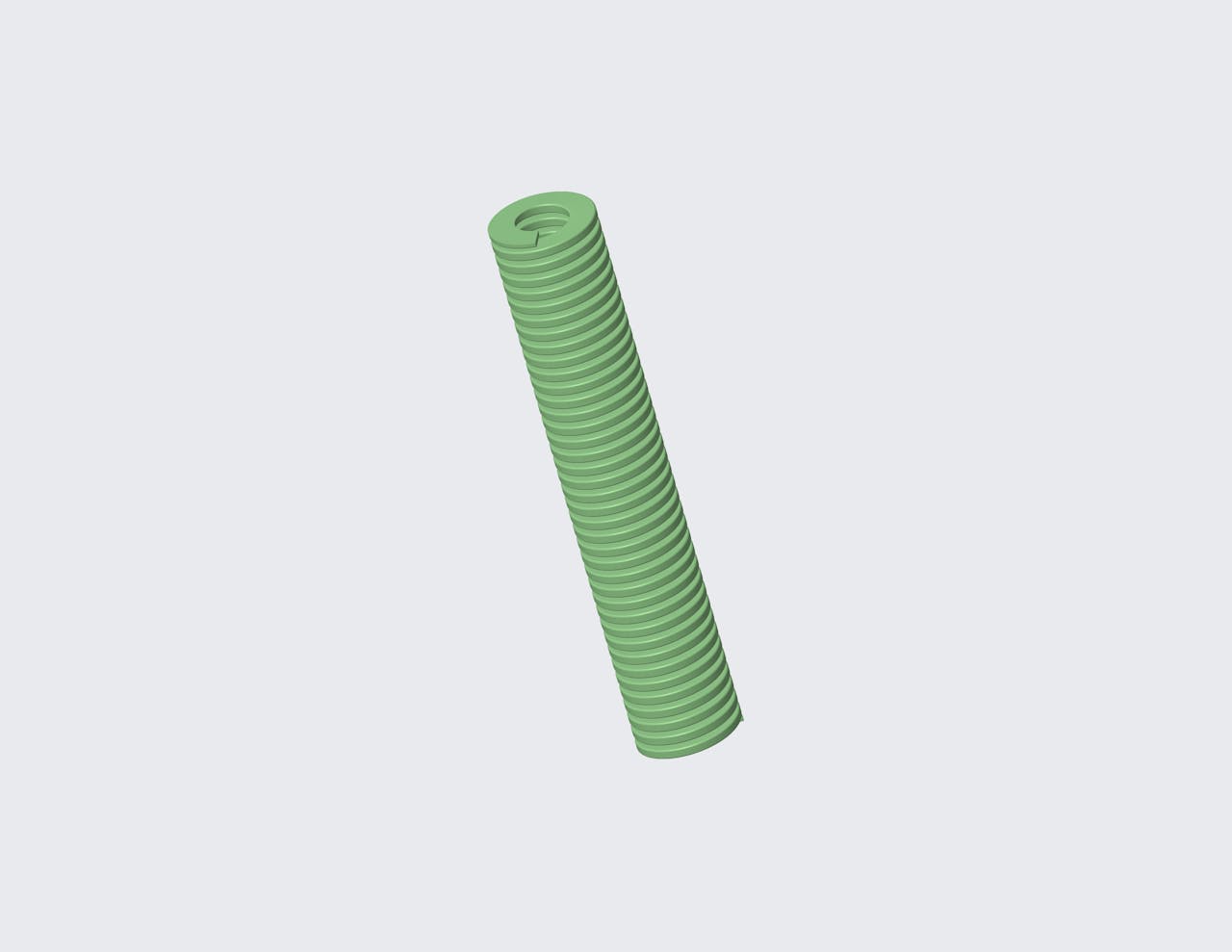

D-304740CS - 254 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 254 Millimeter long and has a 30.1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2.5 in
Deflection 2 3 in
Deflection 3 4 in
Display Name D-304740
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 10 in
Hole Size 1.5748 in
Load 1 429.1817 lbf
Load 2 515.0629 lbf
Load 3 686.6007 lbf
Load At Max Deflection 725.045 lbf
Material Chrome Silicon
Max Deflection 4.2244 in
Measurement Units Metric
Rate 171.9018 lbs/in
Rod Size 0.7874 in
SKU D-304740CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 63.5 mm
Deflection 2 76.2 mm
Deflection 3 101.6 mm
Display Name D-304740
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 254 mm
Hole Size 40 mm
Load 1 1909 N
Load 2 2291 N
Load 3 3054 N
Load At Max Deflection 3225 N
Material Chrome Silicon
Max Deflection 107.3 mm
Measurement Units Metric
Rate 30.1 N/mm
Rod Size 20 mm
SKU D-304740CS
