Century Spring

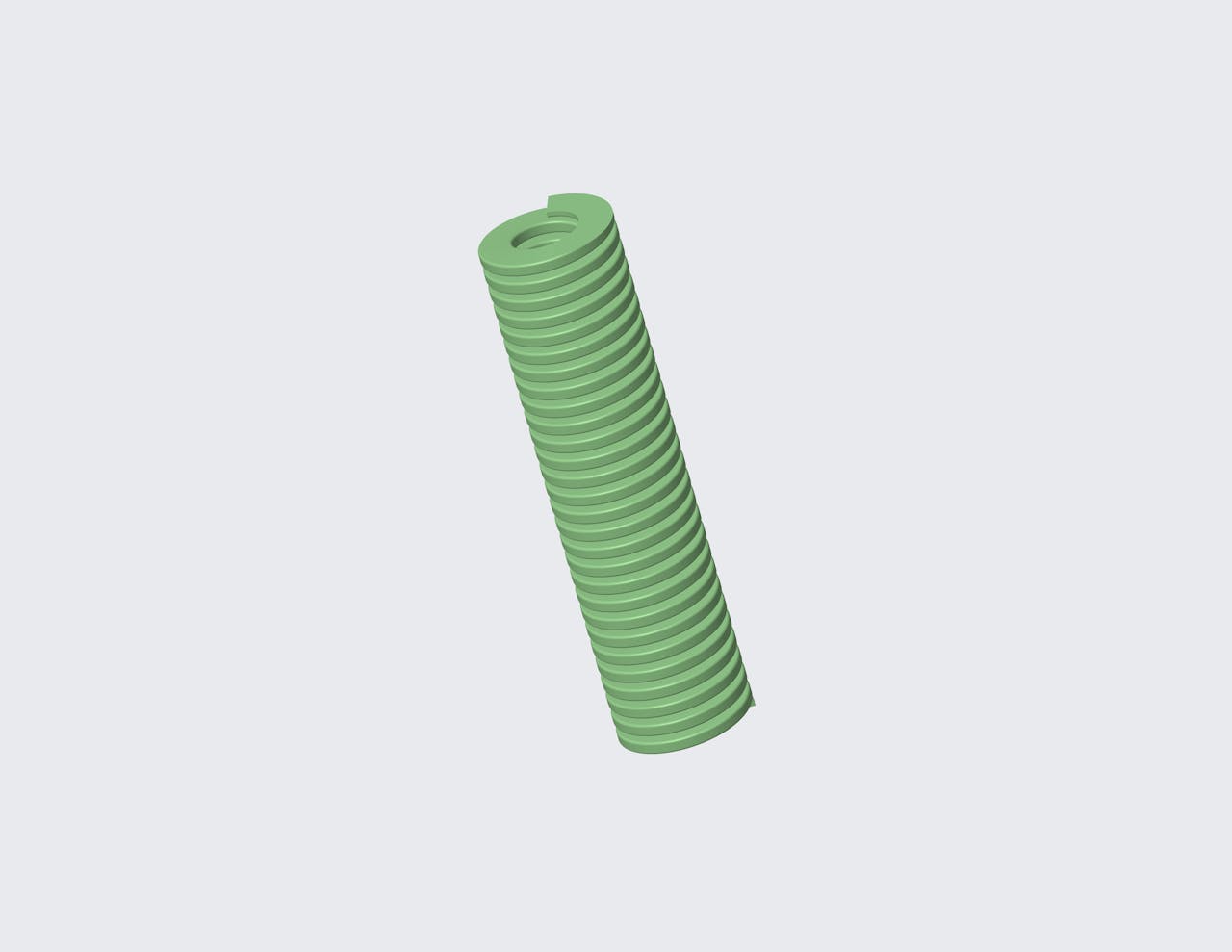

D-304624CS - 152 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 152 Millimeter long and has a 33.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.4961 in
Deflection 2 1.7953 in
Deflection 3 2.3937 in
Display Name D-304624
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 5.9843 in
Hole Size 1.2598 in
Load 1 288.4442 lbf
Load 2 345.9982 lbf
Load 3 461.5558 lbf
Load At Max Deflection 500.8993 lbf
Material Chrome Silicon
Max Deflection 2.5984 in
Measurement Units Metric
Rate 193.0326 lbs/in
Rod Size 0.6299 in
SKU D-304624CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 38 mm
Deflection 2 45.6 mm
Deflection 3 60.8 mm
Display Name D-304624
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 152 mm
Hole Size 32 mm
Load 1 1283 N
Load 2 1539 N
Load 3 2053 N
Load At Max Deflection 2228 N
Material Chrome Silicon
Max Deflection 66 mm
Measurement Units Metric
Rate 33.8 N/mm
Rod Size 16 mm
SKU D-304624CS
