Century Spring

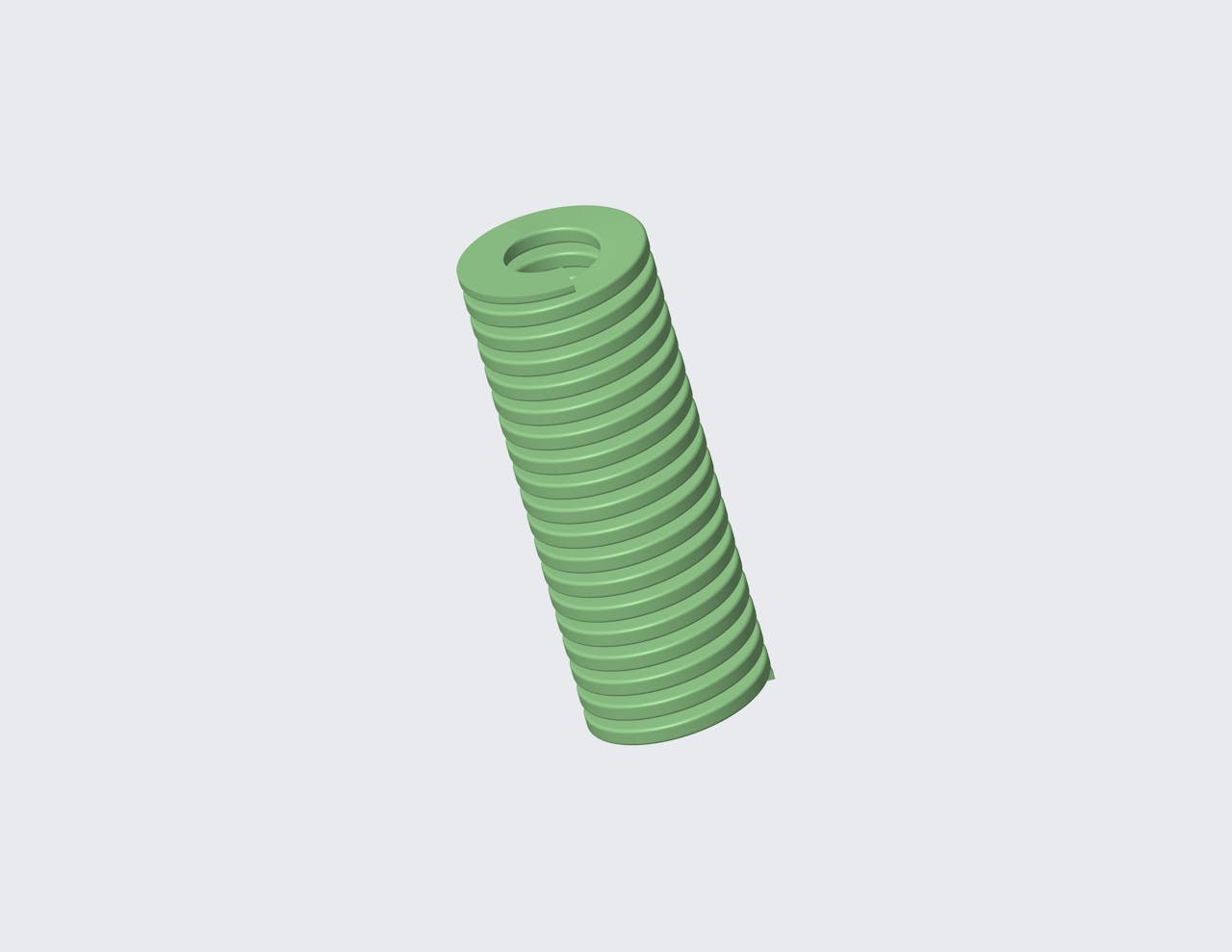

D-304616CS - 102 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 102 Millimeter long and has a 51.6 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.0039 in
Deflection 2 1.2047 in
Deflection 3 1.6063 in
Display Name D-304616
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 4.0157 in
Hole Size 1.2598 in
Load 1 295.6385 lbf
Load 2 354.7662 lbf
Load 3 473.0216 lbf
Load At Max Deflection 513.714 lbf
Material Chrome Silicon
Max Deflection 1.7441 in
Measurement Units Metric
Rate 294.6887 lbs/in
Rod Size 0.6299 in
SKU D-304616CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 25.5 mm
Deflection 2 30.6 mm
Deflection 3 40.8 mm
Display Name D-304616
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 102 mm
Hole Size 32 mm
Load 1 1315 N
Load 2 1578 N
Load 3 2104 N
Load At Max Deflection 2285 N
Material Chrome Silicon
Max Deflection 44.3 mm
Measurement Units Metric
Rate 51.6 N/mm
Rod Size 16 mm
SKU D-304616CS
