Century Spring

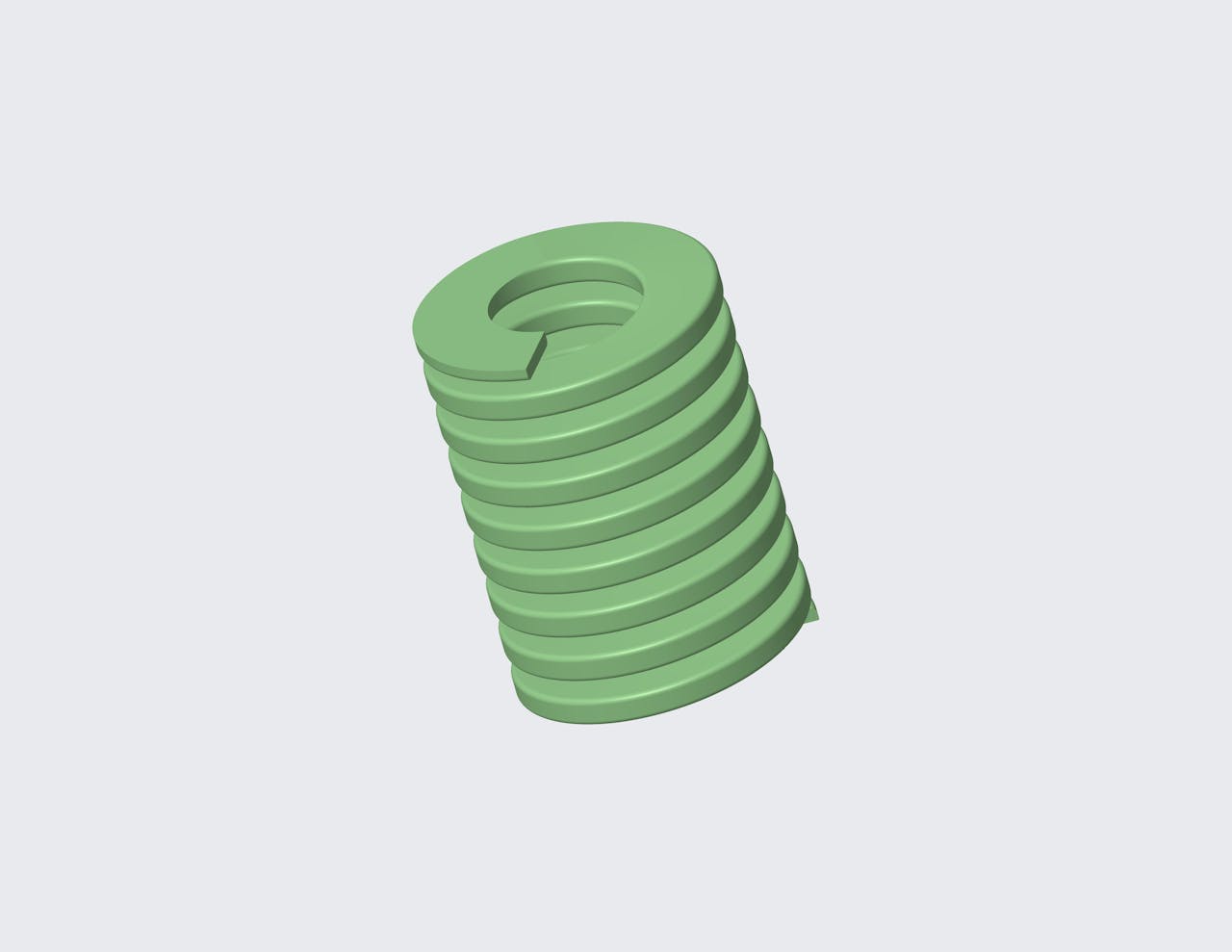

D-304608CS - 51 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 51 Millimeter long and has a 116.2 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5039 in
Deflection 2 0.6024 in
Deflection 3 0.8031 in
Display Name D-304608
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 2.0079 in
Hole Size 1.2598 in
Load 1 333.1835 lbf
Load 2 399.7302 lbf
Load 3 533.0486 lbf
Load At Max Deflection 606.3399 lbf
Material Chrome Silicon
Max Deflection 0.9134 in
Measurement Units Metric
Rate 663.6208 lbs/in
Rod Size 0.6299 in
SKU D-304608CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 12.8 mm
Deflection 2 15.3 mm
Deflection 3 20.4 mm
Display Name D-304608
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 51 mm
Hole Size 32 mm
Load 1 1482 N
Load 2 1778 N
Load 3 2371 N
Load At Max Deflection 2697 N
Material Chrome Silicon
Max Deflection 23.2 mm
Measurement Units Metric
Rate 116.2 N/mm
Rod Size 16 mm
SKU D-304608CS
