Century Spring

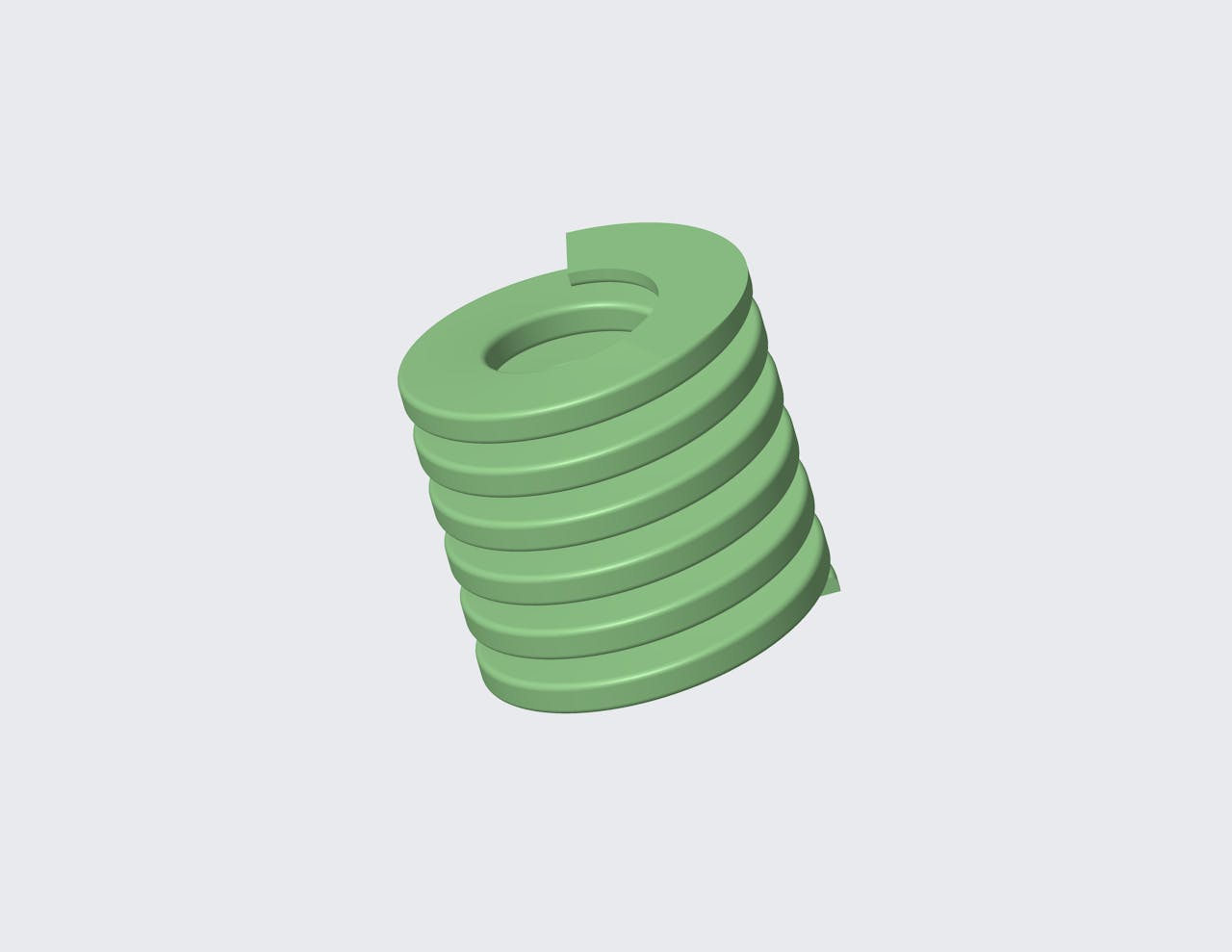

D-304606CS - 38 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 38 Millimeter long and has a 166.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.374 in
Deflection 2 0.4488 in
Deflection 3 0.5984 in
Display Name D-304606
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 1.4961 in
Hole Size 1.2598 in
Load 1 356.3399 lbf
Load 2 427.6079 lbf
Load 3 570.1439 lbf
Load At Max Deflection 652.6529 lbf
Material Chrome Silicon
Max Deflection 0.685 in
Measurement Units Metric
Rate 952.5985 lbs/in
Rod Size 0.6299 in
SKU D-304606CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 9.5 mm
Deflection 2 11.4 mm
Deflection 3 15.2 mm
Display Name D-304606
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 38 mm
Hole Size 32 mm
Load 1 1585 N
Load 2 1902 N
Load 3 2536 N
Load At Max Deflection 2903 N
Material Chrome Silicon
Max Deflection 17.4 mm
Measurement Units Metric
Rate 166.8 N/mm
Rod Size 16 mm
SKU D-304606CS
