Century Spring

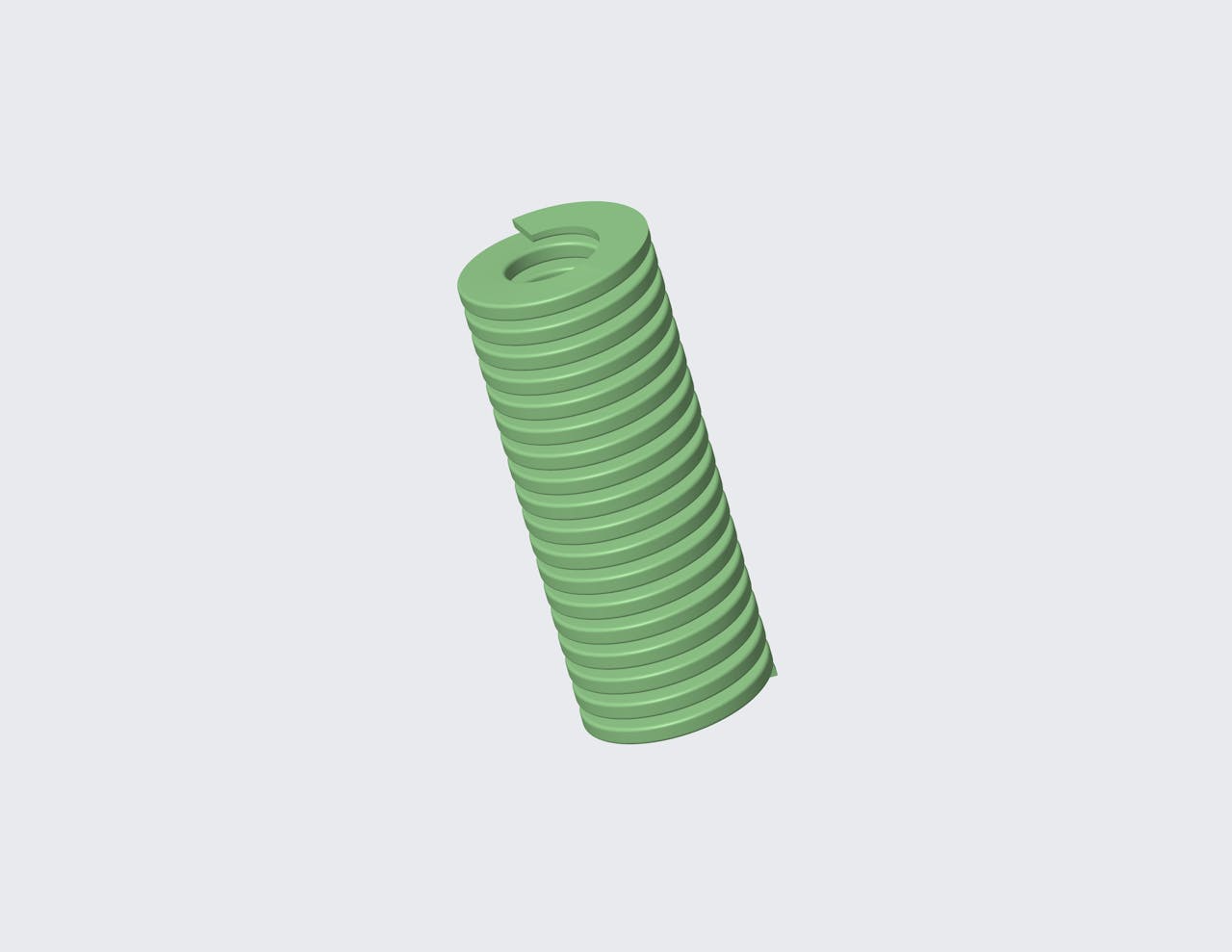

D-304512CS - 76 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 76 Millimeter long and has a 49 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.748 in
Deflection 2 0.8976 in
Deflection 3 1.1969 in
Display Name D-304512
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 2.9921 in
Hole Size 0.9843 in
Load 1 209.0827 lbf
Load 2 250.8993 lbf
Load 3 334.5324 lbf
Load At Max Deflection 353.1924 lbf
Material Chrome Silicon
Max Deflection 1.2638 in
Measurement Units Metric
Rate 279.8401 lbs/in
Rod Size 0.4921 in
SKU D-304512CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 19 mm
Deflection 2 22.8 mm
Deflection 3 30.4 mm
Display Name D-304512
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 76 mm
Hole Size 25 mm
Load 1 930 N
Load 2 1116 N
Load 3 1488 N
Load At Max Deflection 1571 N
Material Chrome Silicon
Max Deflection 32.1 mm
Measurement Units Metric
Rate 49 N/mm
Rod Size 12.5 mm
SKU D-304512CS
