Century Spring

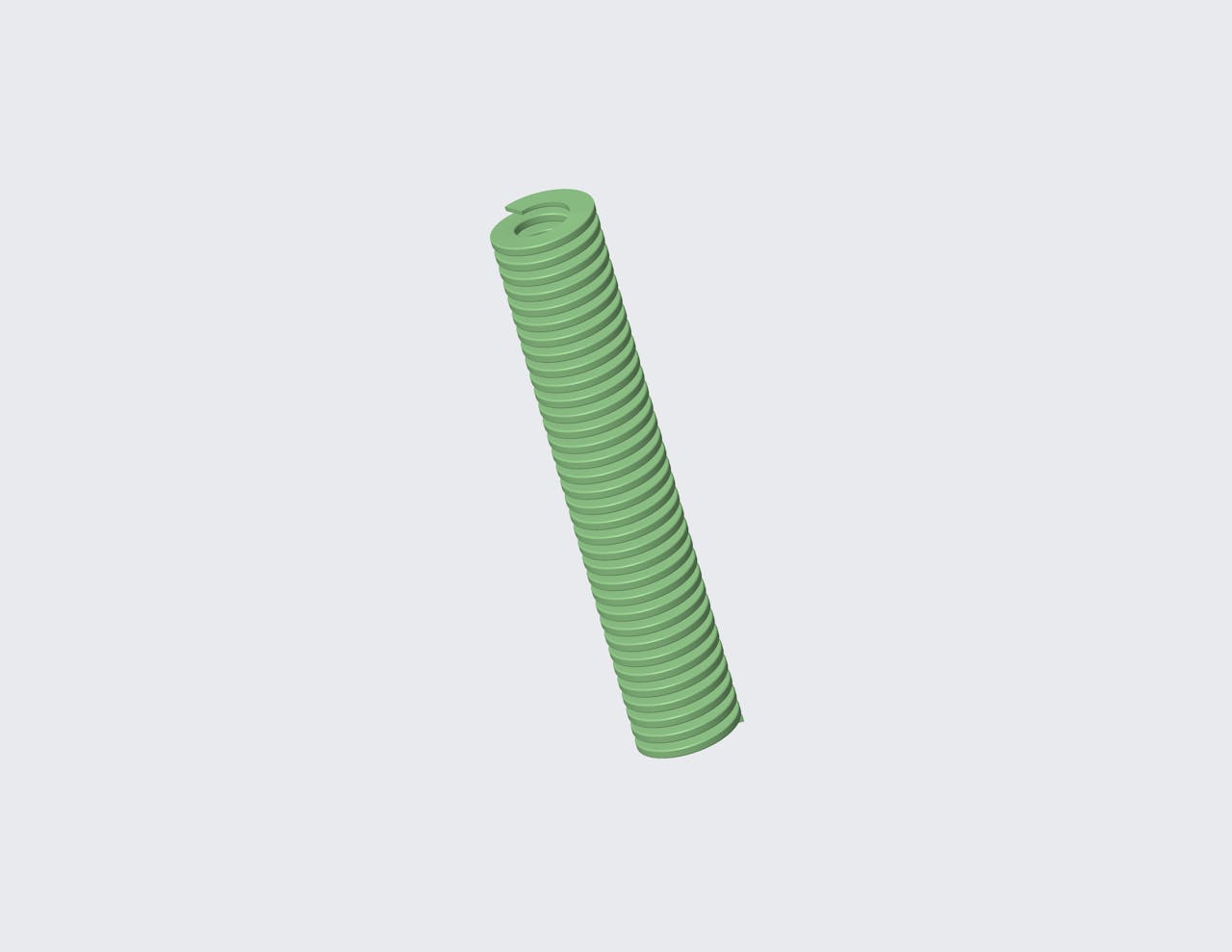

D-304316CS - 102 Millimeter Medium Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Medium duty. This spring is 102 Millimeter long and has a 13.3 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.0039 in
Deflection 2 1.2047 in
Deflection 3 1.6063 in
Display Name D-304316
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 4.0157 in
Hole Size 0.6299 in
Load 1 76.214 lbf
Load 2 91.277 lbf
Load 3 121.8525 lbf
Load At Max Deflection 157.5989 lbf
Material Chrome Silicon
Max Deflection 2.0787 in
Measurement Units Metric
Rate 75.9566 lbs/in
Rod Size 0.3346 in
SKU D-304316CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 25.5 mm
Deflection 2 30.6 mm
Deflection 3 40.8 mm
Display Name D-304316
Duty Load Medium
Finish Powder Coat
Finish Color Blue
Free Length 102 mm
Hole Size 16 mm
Load 1 339 N
Load 2 406 N
Load 3 542 N
Load At Max Deflection 701 N
Material Chrome Silicon
Max Deflection 52.8 mm
Measurement Units Metric
Rate 13.3 N/mm
Rod Size 8.5 mm
SKU D-304316CS
