Century Spring

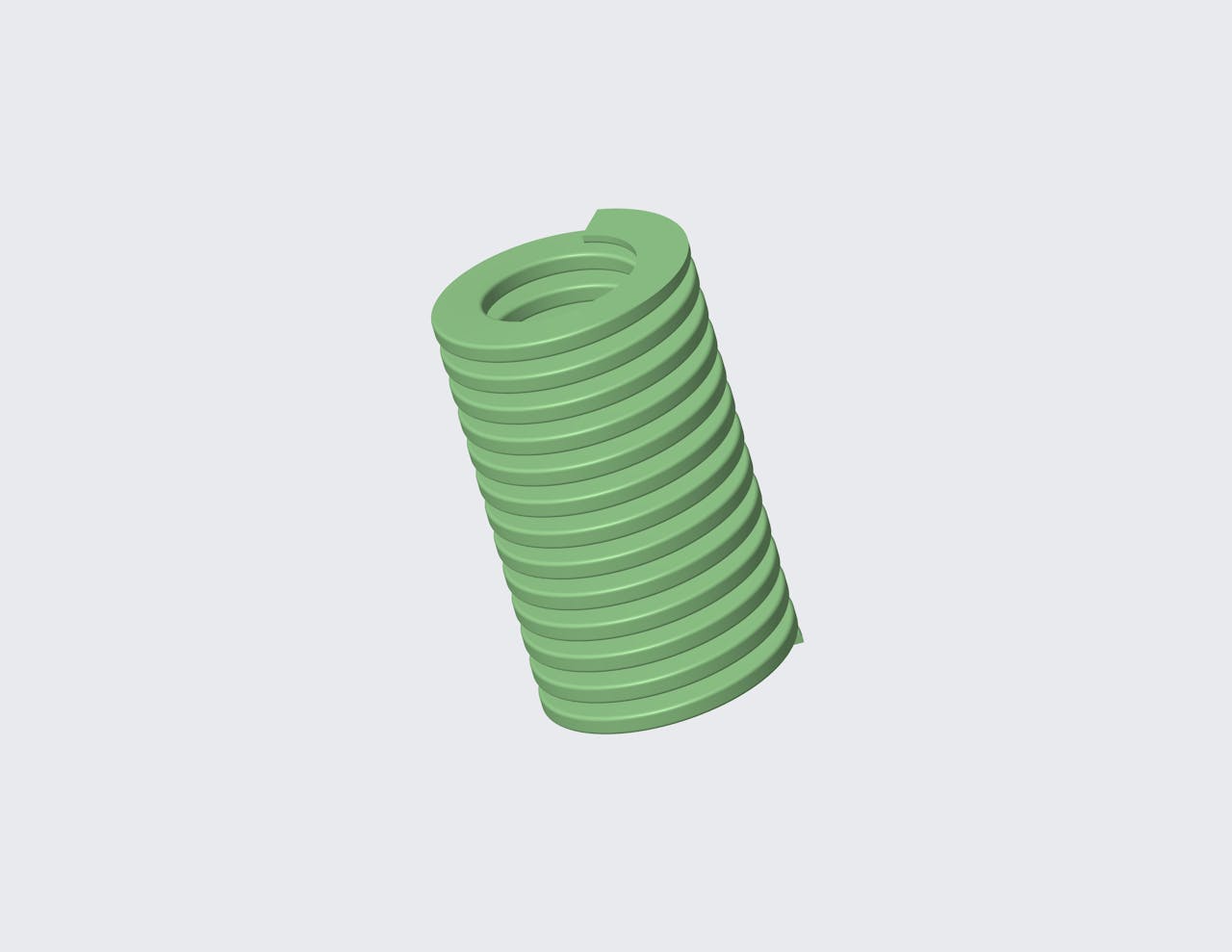

D-303920CS - 127 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 127 Millimeter long and has a 105.7 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.252 in
Deflection 2 1.5 in
Deflection 3 2 in
Display Name D-303920
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 5 in
Hole Size 2.4803 in
Load 1 754.2716 lbf
Load 2 905.1259 lbf
Load 3 1206.8345 lbf
Load At Max Deflection 1479.991 lbf
Material Chrome Silicon
Max Deflection 2.4528 in
Measurement Units Metric
Rate 603.6551 lbs/in
Rod Size 1.4961 in
SKU D-303920CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 31.8 mm
Deflection 2 38.1 mm
Deflection 3 50.8 mm
Display Name D-303920
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 127 mm
Hole Size 63 mm
Load 1 3355 N
Load 2 4026 N
Load 3 5368 N
Load At Max Deflection 6583 N
Material Chrome Silicon
Max Deflection 62.3 mm
Measurement Units Metric
Rate 105.7 N/mm
Rod Size 38 mm
SKU D-303920CS
