Century Spring

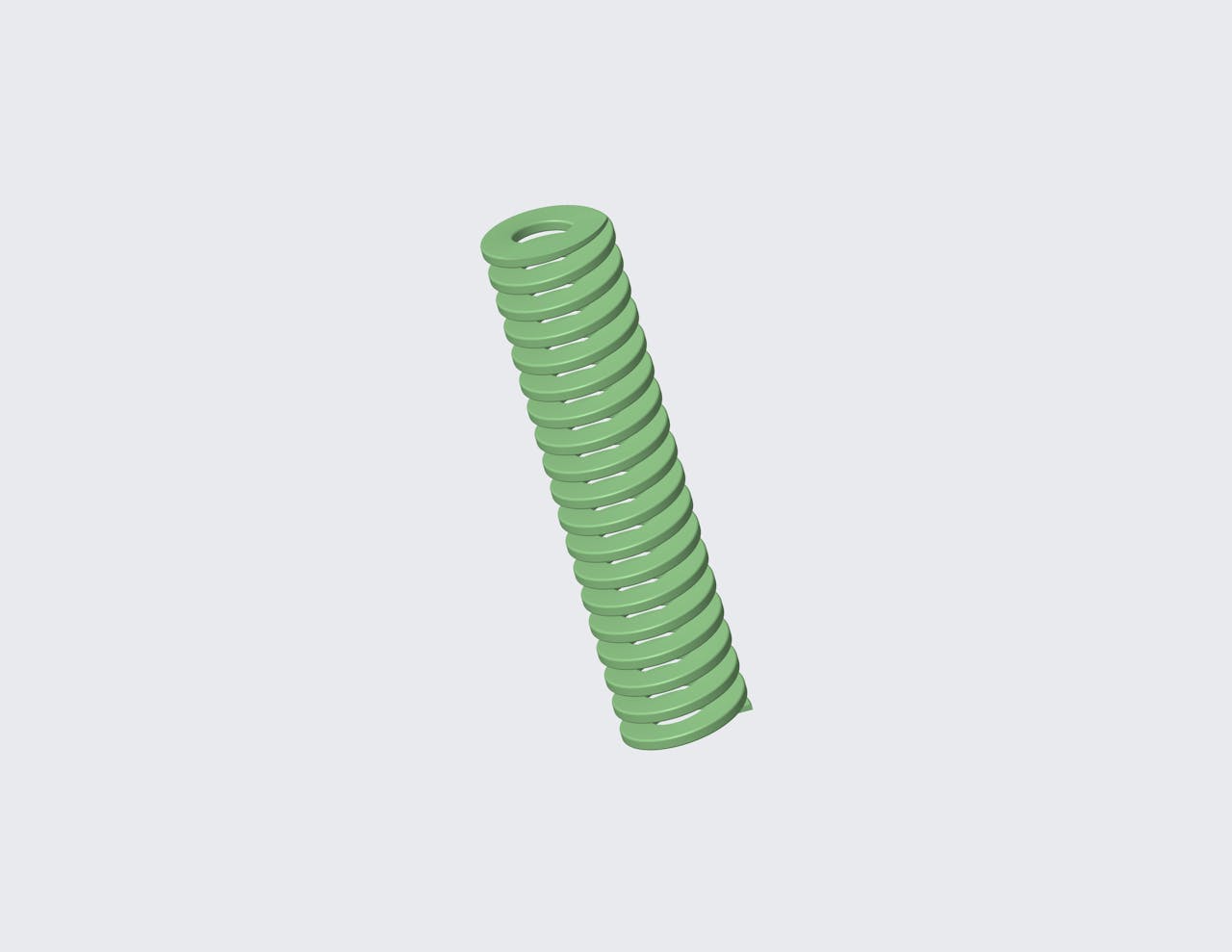

D-303840CS - 254 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 254 Millimeter long and has a 35.7 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2.5 in
Deflection 2 3 in
Deflection 3 4 in
Display Name D-303840
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 10 in
Hole Size 1.9685 in
Load 1 508.9928 lbf
Load 2 610.8363 lbf
Load 3 814.5234 lbf
Load At Max Deflection 1289.1187 lbf
Material Chrome Silicon
Max Deflection 6.3307 in
Measurement Units Metric
Rate 203.8835 lbs/in
Rod Size 0.9843 in
SKU D-303840CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 63.5 mm
Deflection 2 76.2 mm
Deflection 3 101.6 mm
Display Name D-303840
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 254 mm
Hole Size 50 mm
Load 1 2264 N
Load 2 2717 N
Load 3 3623 N
Load At Max Deflection 5734 N
Material Chrome Silicon
Max Deflection 160.8 mm
Measurement Units Metric
Rate 35.7 N/mm
Rod Size 25 mm
SKU D-303840CS
