Century Spring

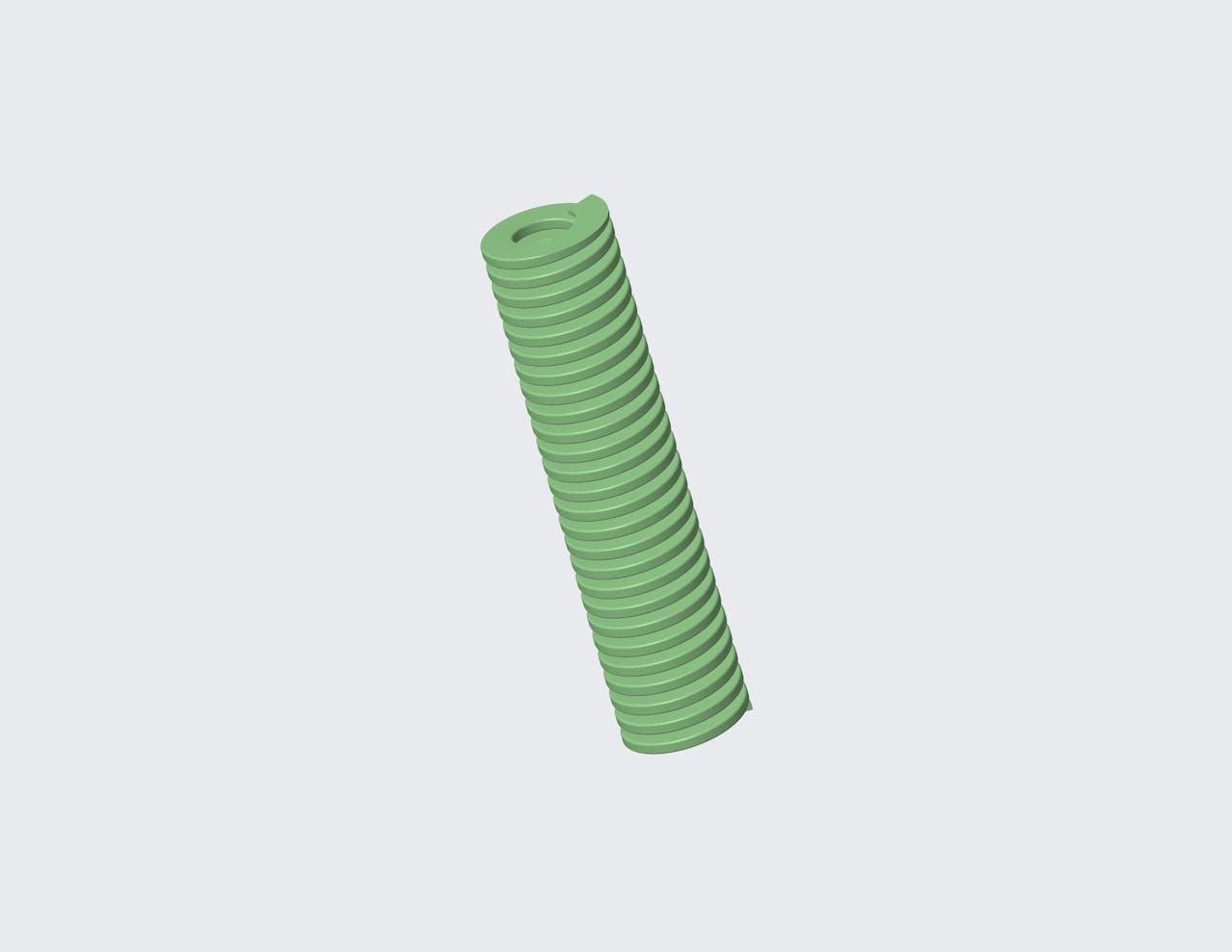

D-303732CS - 203 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 203 Millimeter long and has a 23.5 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 2 in
Deflection 2 2.3976 in
Deflection 3 3.1969 in
Display Name D-303732
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 7.9921 in
Hole Size 1.5748 in
Load 1 267.7608 lbf
Load 2 321.268 lbf
Load 3 428.2824 lbf
Load At Max Deflection 542.2662 lbf
Material Chrome Silicon
Max Deflection 4.0472 in
Measurement Units Metric
Rate 134.209 lbs/in
Rod Size 0.7874 in
SKU D-303732CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 50.8 mm
Deflection 2 60.9 mm
Deflection 3 81.2 mm
Display Name D-303732
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 203 mm
Hole Size 40 mm
Load 1 1191 N
Load 2 1429 N
Load 3 1905 N
Load At Max Deflection 2412 N
Material Chrome Silicon
Max Deflection 102.8 mm
Measurement Units Metric
Rate 23.5 N/mm
Rod Size 20 mm
SKU D-303732CS
