Century Spring

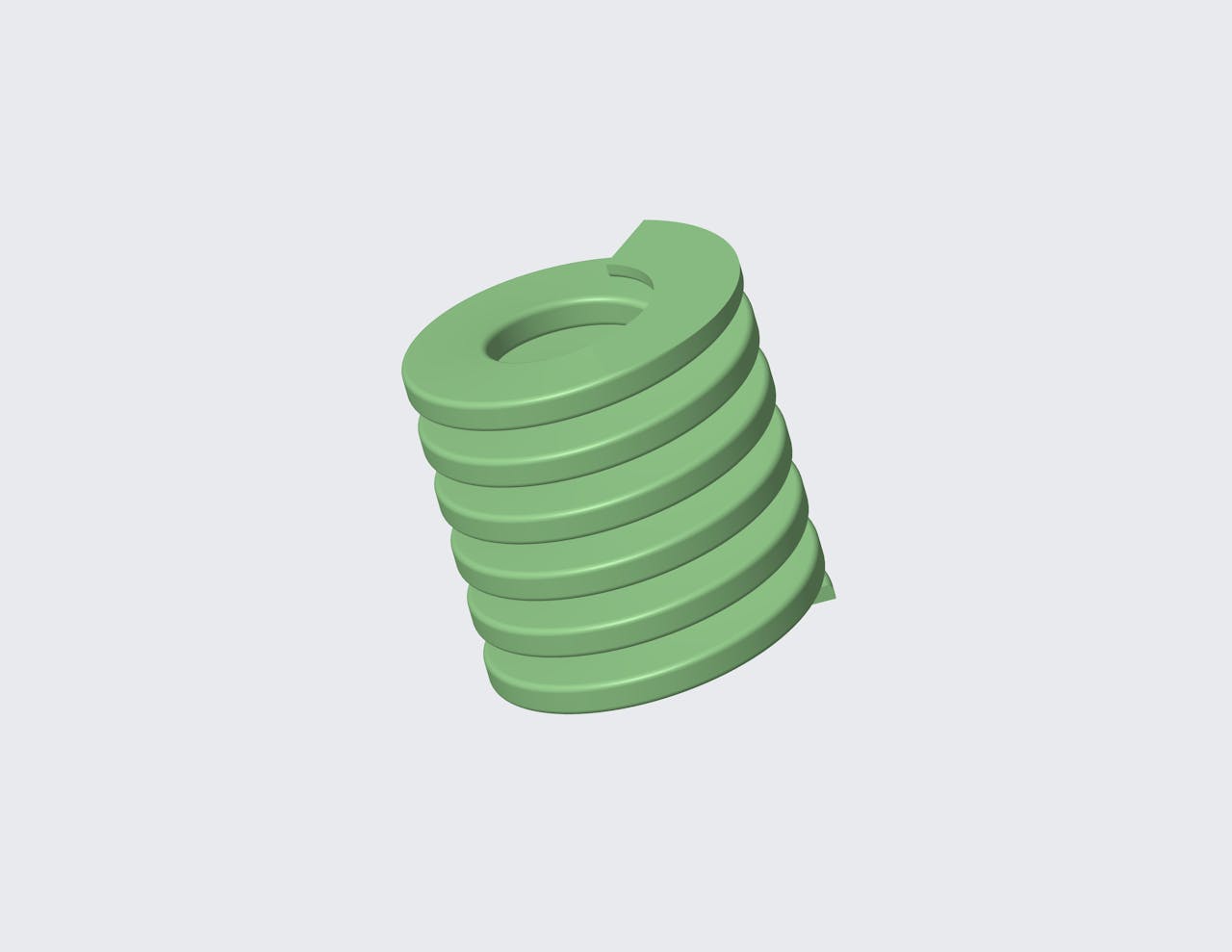

D-303708CS - 51 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 51 Millimeter long and has a 104.6 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5039 in
Deflection 2 0.6024 in
Deflection 3 0.8031 in
Display Name D-303708
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 2.0079 in
Hole Size 1.5748 in
Load 1 299.6853 lbf
Load 2 359.7122 lbf
Load 3 479.5414 lbf
Load At Max Deflection 592.4011 lbf
Material Chrome Silicon
Max Deflection 0.9921 in
Measurement Units Metric
Rate 597.3729 lbs/in
Rod Size 0.7874 in
SKU D-303708CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 12.8 mm
Deflection 2 15.3 mm
Deflection 3 20.4 mm
Display Name D-303708
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 51 mm
Hole Size 40 mm
Load 1 1333 N
Load 2 1600 N
Load 3 2133 N
Load At Max Deflection 2635 N
Material Chrome Silicon
Max Deflection 25.2 mm
Measurement Units Metric
Rate 104.6 N/mm
Rod Size 20 mm
SKU D-303708CS
