Century Spring

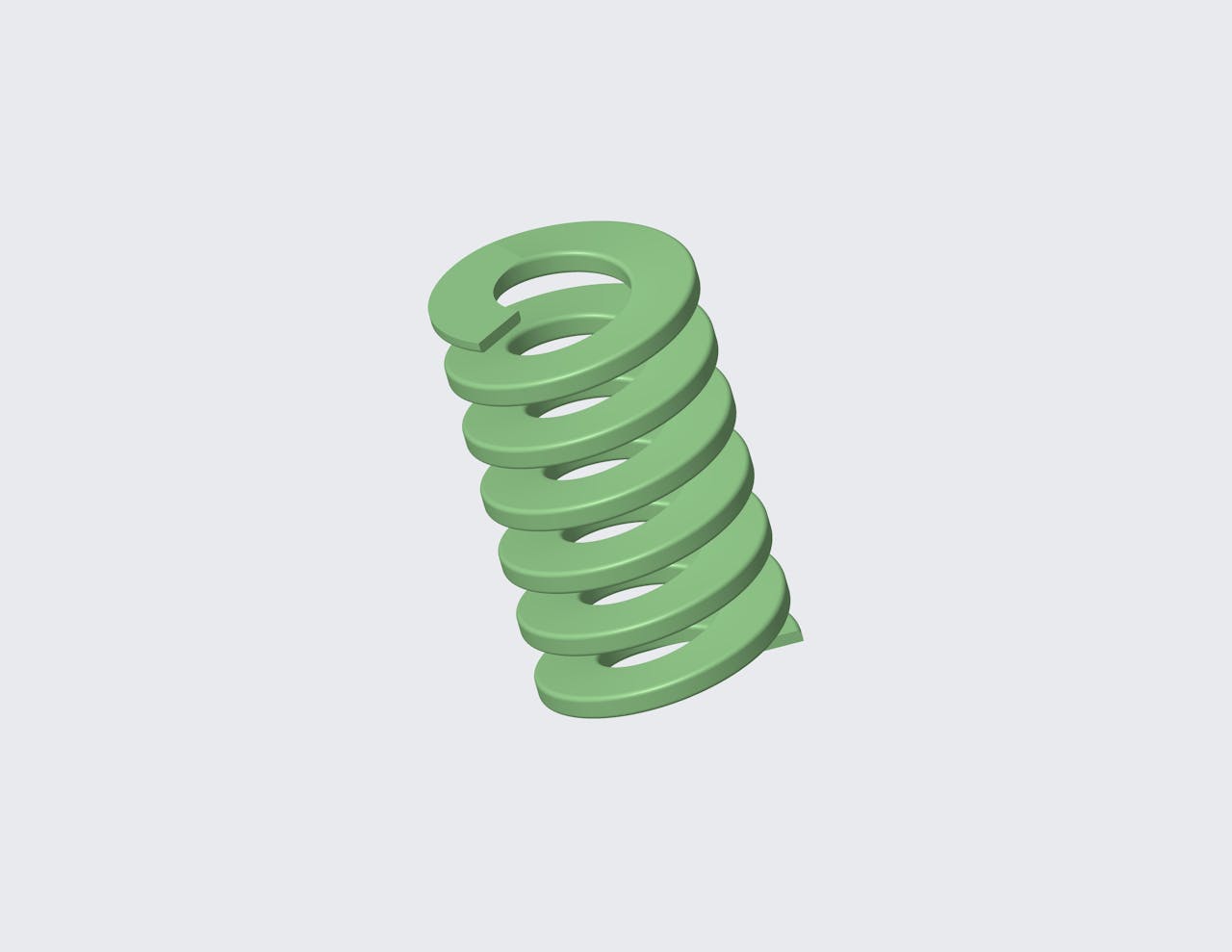

D-303610CS - 64 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 64 Millimeter long and has a 55.1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.6299 in
Deflection 2 0.7559 in
Deflection 3 1.0079 in
Display Name D-303610
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 2.5197 in
Hole Size 1.2598 in
Load 1 198.0665 lbf
Load 2 237.6349 lbf
Load 3 316.9964 lbf
Load At Max Deflection 507.4191 lbf
Material Chrome Silicon
Max Deflection 1.6142 in
Measurement Units Metric
Rate 314.6773 lbs/in
Rod Size 0.6299 in
SKU D-303610CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 16 mm
Deflection 2 19.2 mm
Deflection 3 25.6 mm
Display Name D-303610
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 64 mm
Hole Size 32 mm
Load 1 881 N
Load 2 1057 N
Load 3 1410 N
Load At Max Deflection 2257 N
Material Chrome Silicon
Max Deflection 41 mm
Measurement Units Metric
Rate 55.1 N/mm
Rod Size 16 mm
SKU D-303610CS
