Century Spring

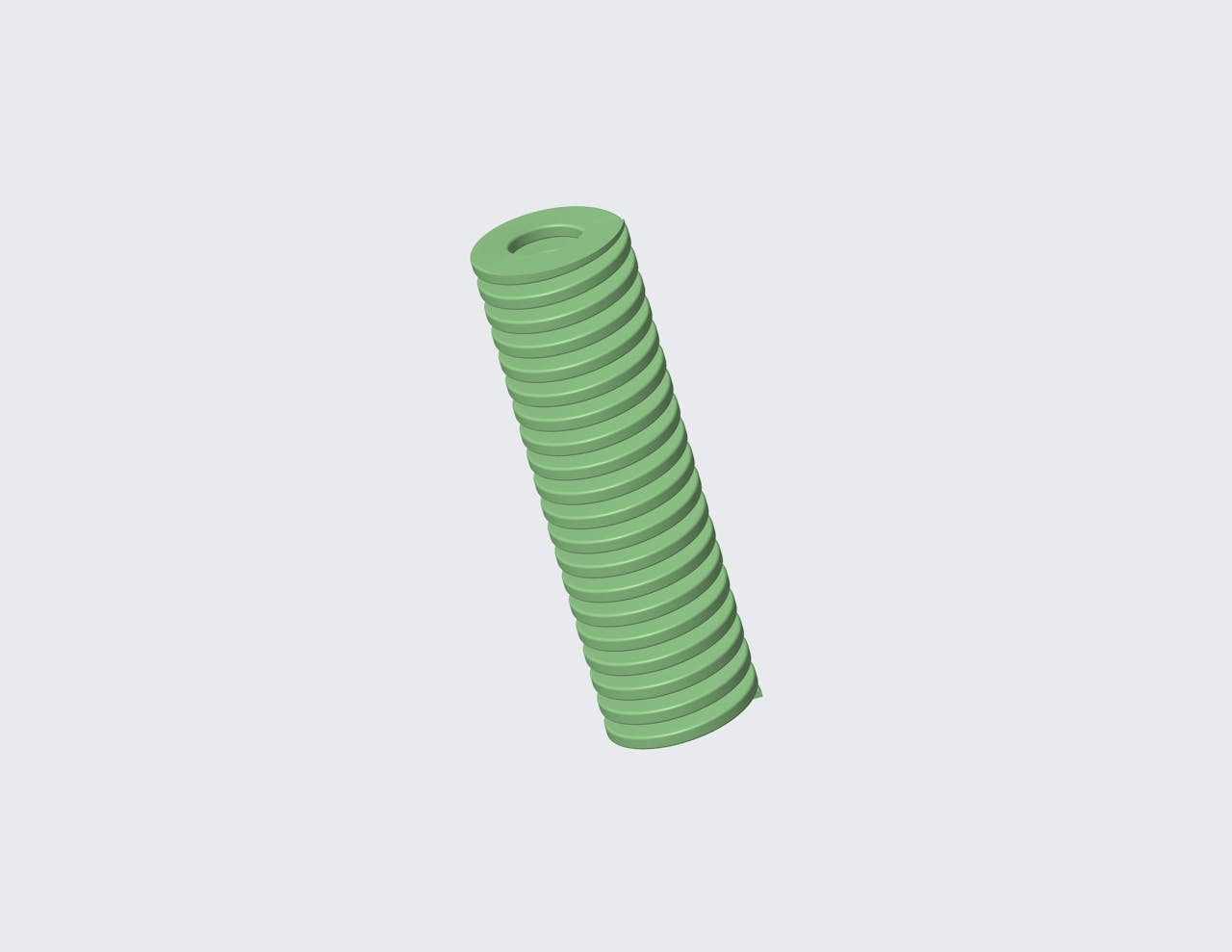

D-303516CS - 102 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 102 Millimeter long and has a 20.6 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.0039 in
Deflection 2 1.2047 in
Deflection 3 1.6063 in
Display Name D-303516
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 4.0157 in
Hole Size 0.9843 in
Load 1 118.2554 lbf
Load 2 141.8615 lbf
Load 3 189.0737 lbf
Load At Max Deflection 248.4263 lbf
Material Chrome Silicon
Max Deflection 2.1102 in
Measurement Units Metric
Rate 117.6471 lbs/in
Rod Size 0.4921 in
SKU D-303516CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 25.5 mm
Deflection 2 30.6 mm
Deflection 3 40.8 mm
Display Name D-303516
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 102 mm
Hole Size 25 mm
Load 1 526 N
Load 2 631 N
Load 3 841 N
Load At Max Deflection 1105 N
Material Chrome Silicon
Max Deflection 53.6 mm
Measurement Units Metric
Rate 20.6 N/mm
Rod Size 12.5 mm
SKU D-303516CS
