Century Spring

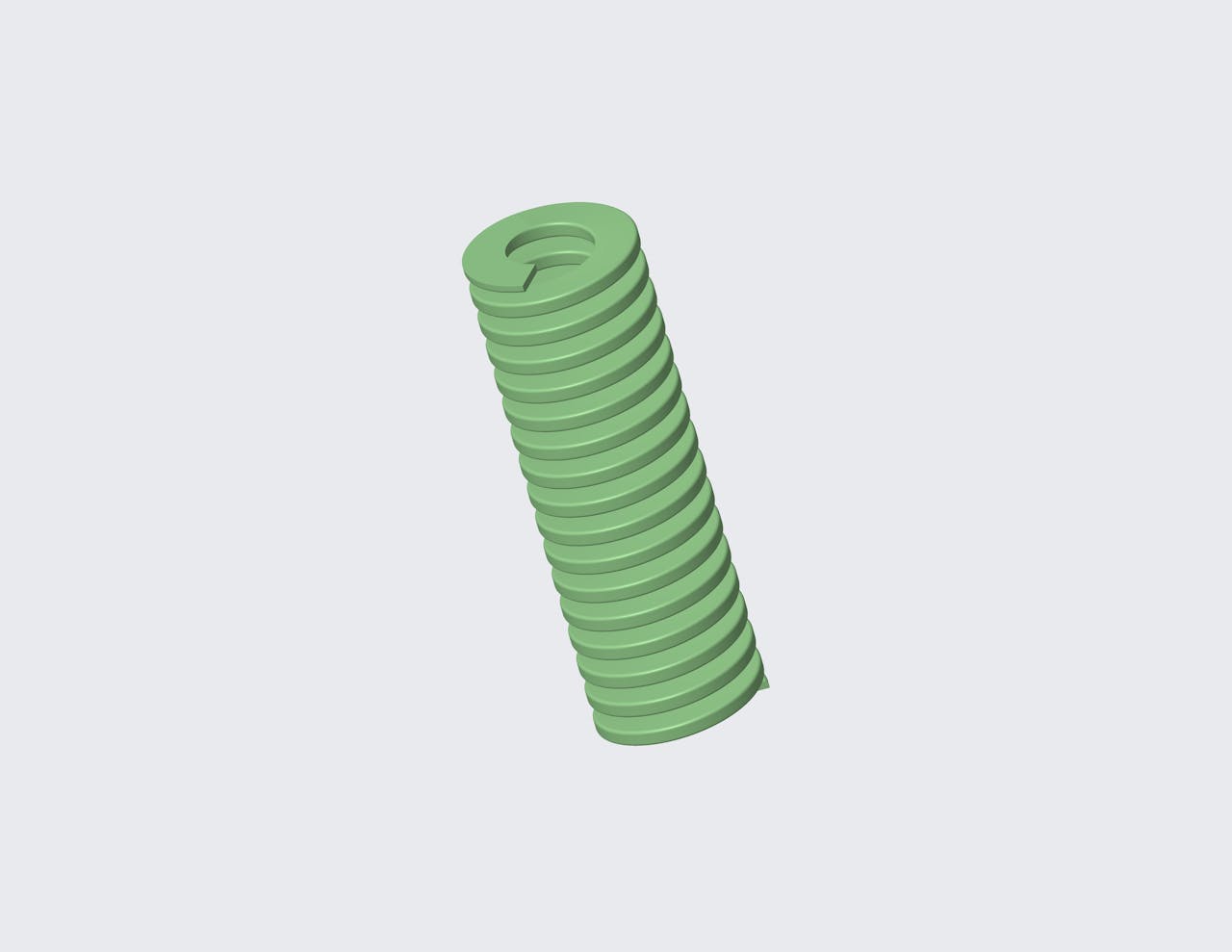

D-303514CS - 89 Millimeter Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Light duty. This spring is 89 Millimeter long and has a 24.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.878 in
Deflection 2 1.0512 in
Deflection 3 1.4016 in
Display Name D-303514
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 3.5039 in
Hole Size 0.9843 in
Load 1 123.8759 lbf
Load 2 148.6061 lbf
Load 3 198.0665 lbf
Load At Max Deflection 268.2104 lbf
Material Chrome Silicon
Max Deflection 1.8976 in
Measurement Units Metric
Rate 141.6334 lbs/in
Rod Size 0.4921 in
SKU D-303514CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 22.3 mm
Deflection 2 26.7 mm
Deflection 3 35.6 mm
Display Name D-303514
Duty Load Light
Finish Powder Coat
Finish Color Green
Free Length 89 mm
Hole Size 25 mm
Load 1 551 N
Load 2 661 N
Load 3 881 N
Load At Max Deflection 1193 N
Material Chrome Silicon
Max Deflection 48.2 mm
Measurement Units Metric
Rate 24.8 N/mm
Rod Size 12.5 mm
SKU D-303514CS
