Century Spring

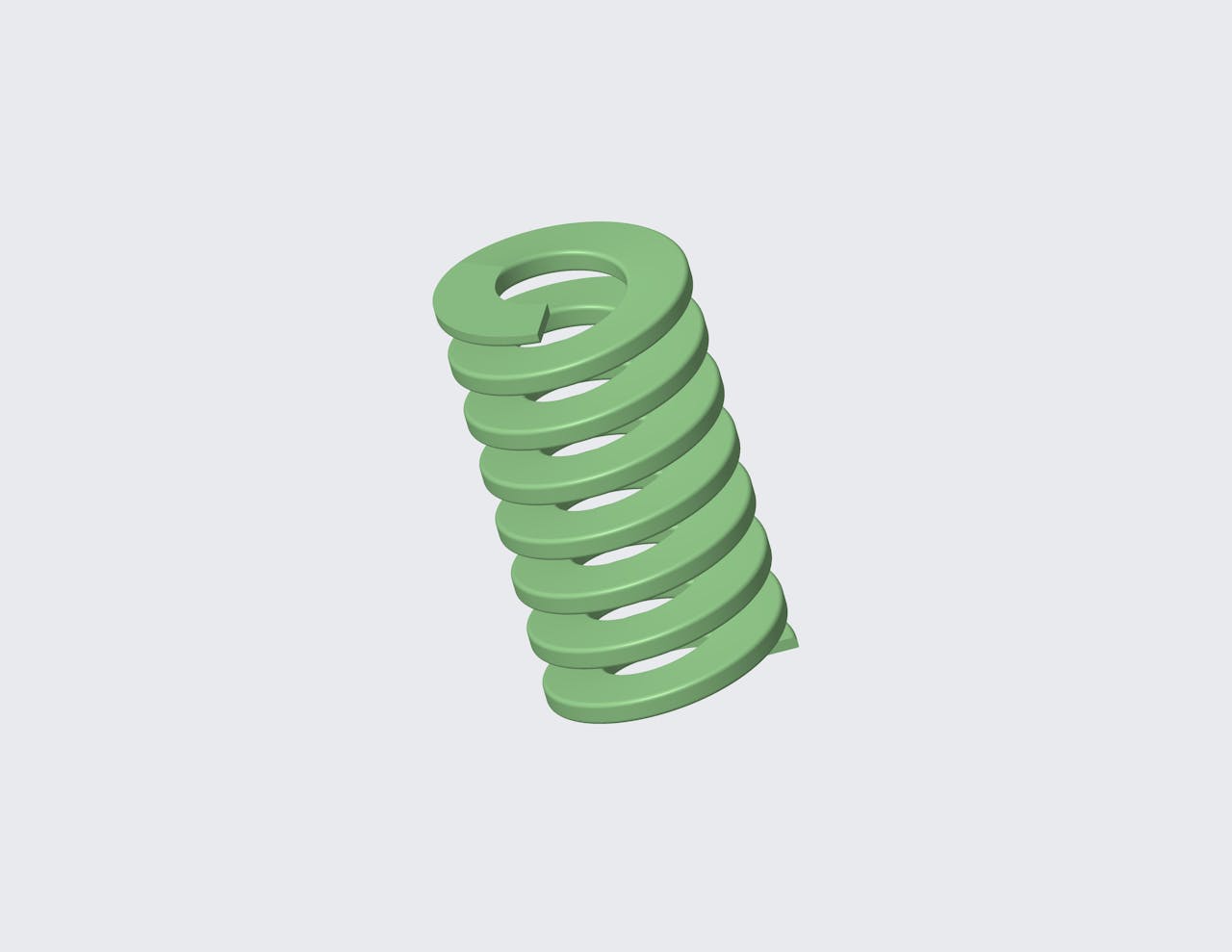

D-302818CS - 114 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 114 Millimeter long and has a 46.1 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 1.3465 in
Deflection 2 1.7953 in
Deflection 3 2.2441 in
Display Name D-302818
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 4.4882 in
Hole Size 1.9685 in
Load 1 354.5414 lbf
Load 2 472.5719 lbf
Load 3 590.8273 lbf
Load At Max Deflection 759.6673 lbf
Material Chrome Silicon
Max Deflection 2.8858 in
Measurement Units Metric
Rate 263.2781 lbs/in
Rod Size 0.9843 in
SKU D-302818CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 34.2 mm
Deflection 2 45.6 mm
Deflection 3 57 mm
Display Name D-302818
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 114 mm
Hole Size 50 mm
Load 1 1577 N
Load 2 2102 N
Load 3 2628 N
Load At Max Deflection 3379 N
Material Chrome Silicon
Max Deflection 73.3 mm
Measurement Units Metric
Rate 46.1 N/mm
Rod Size 25 mm
SKU D-302818CS
