Century Spring

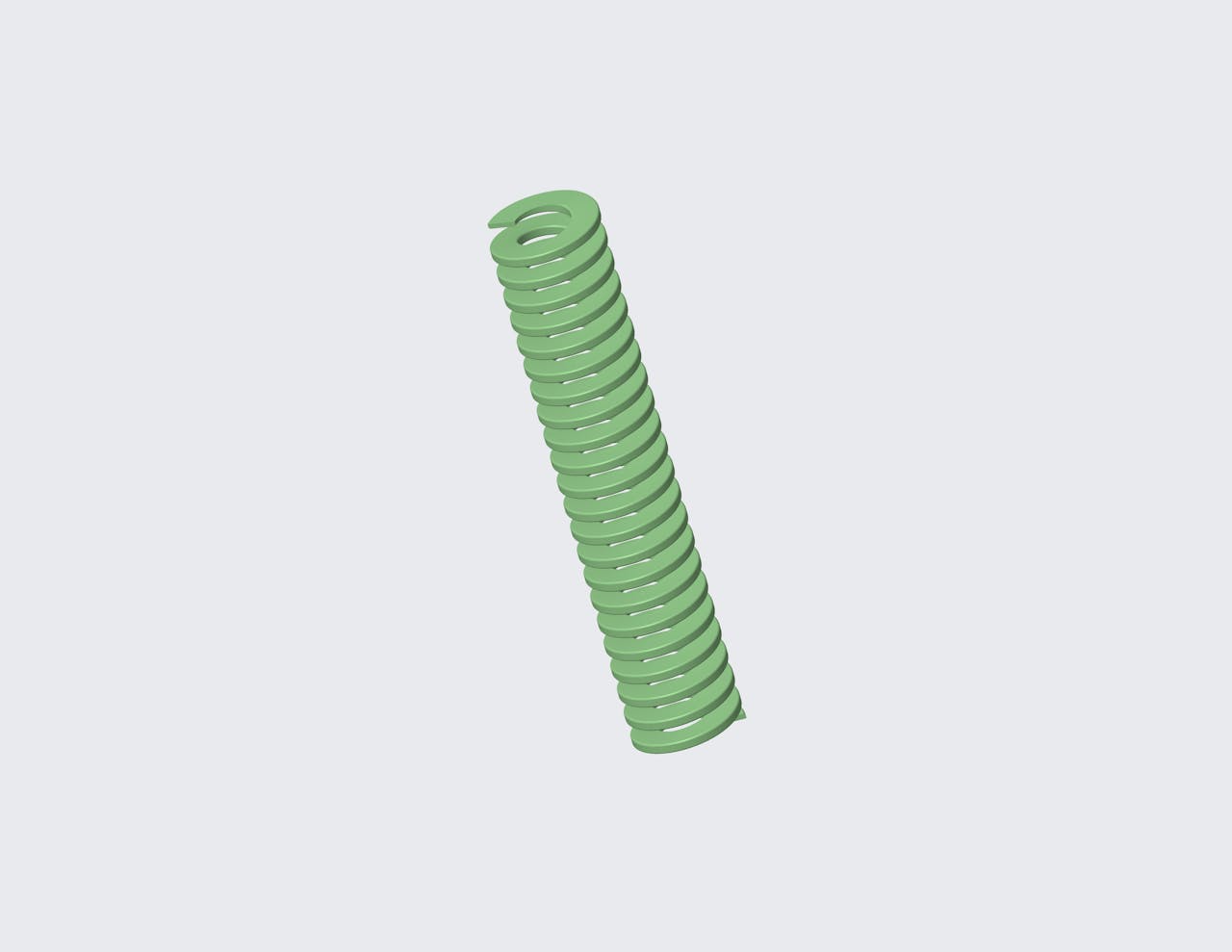

D-302740CS - 254 Millimeter Ultra Light Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Light duty. This spring is 254 Millimeter long and has a 9.8 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 3 in
Deflection 2 4 in
Deflection 3 5.0039 in
Display Name D-302740
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 10 in
Hole Size 1.5748 in
Load 1 167.9406 lbf
Load 2 223.9209 lbf
Load 3 279.9011 lbf
Load At Max Deflection 366.6817 lbf
Material Chrome Silicon
Max Deflection 6.5512 in
Measurement Units Metric
Rate 55.968 lbs/in
Rod Size 0.7874 in
SKU D-302740CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 76.2 mm
Deflection 2 101.6 mm
Deflection 3 127.1 mm
Display Name D-302740
Duty Load Ultra Light
Finish Powder Coat
Finish Color Light Green
Free Length 254 mm
Hole Size 40 mm
Load 1 747 N
Load 2 996 N
Load 3 1245 N
Load At Max Deflection 1631 N
Material Chrome Silicon
Max Deflection 166.4 mm
Measurement Units Metric
Rate 9.8 N/mm
Rod Size 20 mm
SKU D-302740CS
