Century Spring

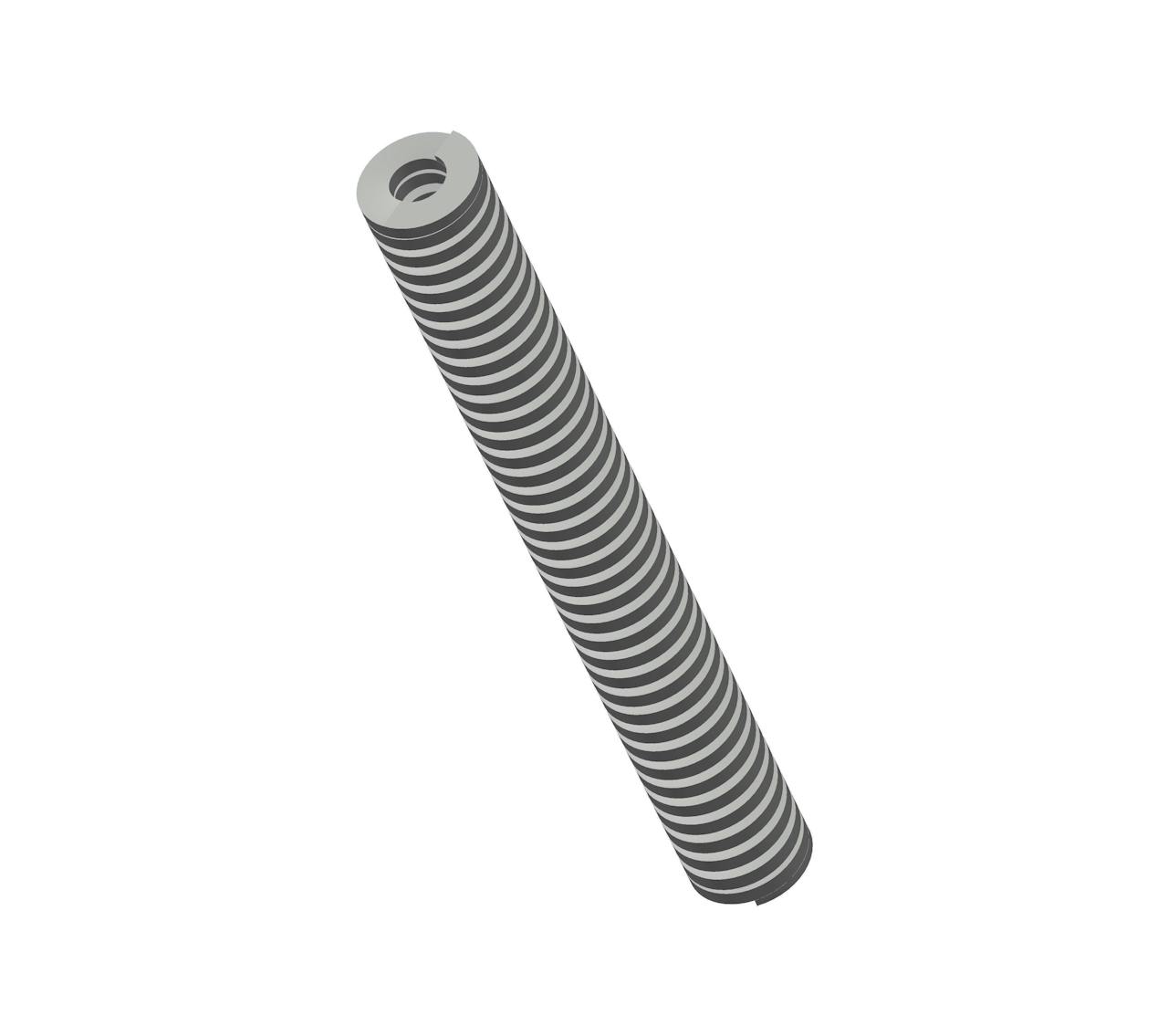

D-18CS - 5 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

5 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 125 lb
Brand Century Spring
Deflection For Average Life 1.25 in
Display Name D-18
Duty Load Medium
Finish None
Free Length 5 in
Hole Size 0.625 in
Material Oil Tempered
Maximum Deflection 2 in
Maximum Deflection Force 200 lb
Measurement Units Standard
Rate 100 lbs/in
Rod Size 0.25 in
SKU D-18CS
Wire Diameter 0.156 in x 0.078 in
Specs (in metric)
Label Value
Average Life Deflection Force 56.69 kg
Brand Century Spring
Deflection For Average Life 31.75 mm
Display Name D-18
Duty Load Medium
Finish None
Free Length 127 mm
Hole Size 15.88 mm
Material Oil Tempered
Maximum Deflection 50.8 mm
Maximum Deflection Force 90.7 kg
Measurement Units Standard
Rate 17.51 N/mm
Rod Size 6.35 mm
SKU D-18CS
Wire Diameter 3.96 mm x 1.98 mm
