Century Spring

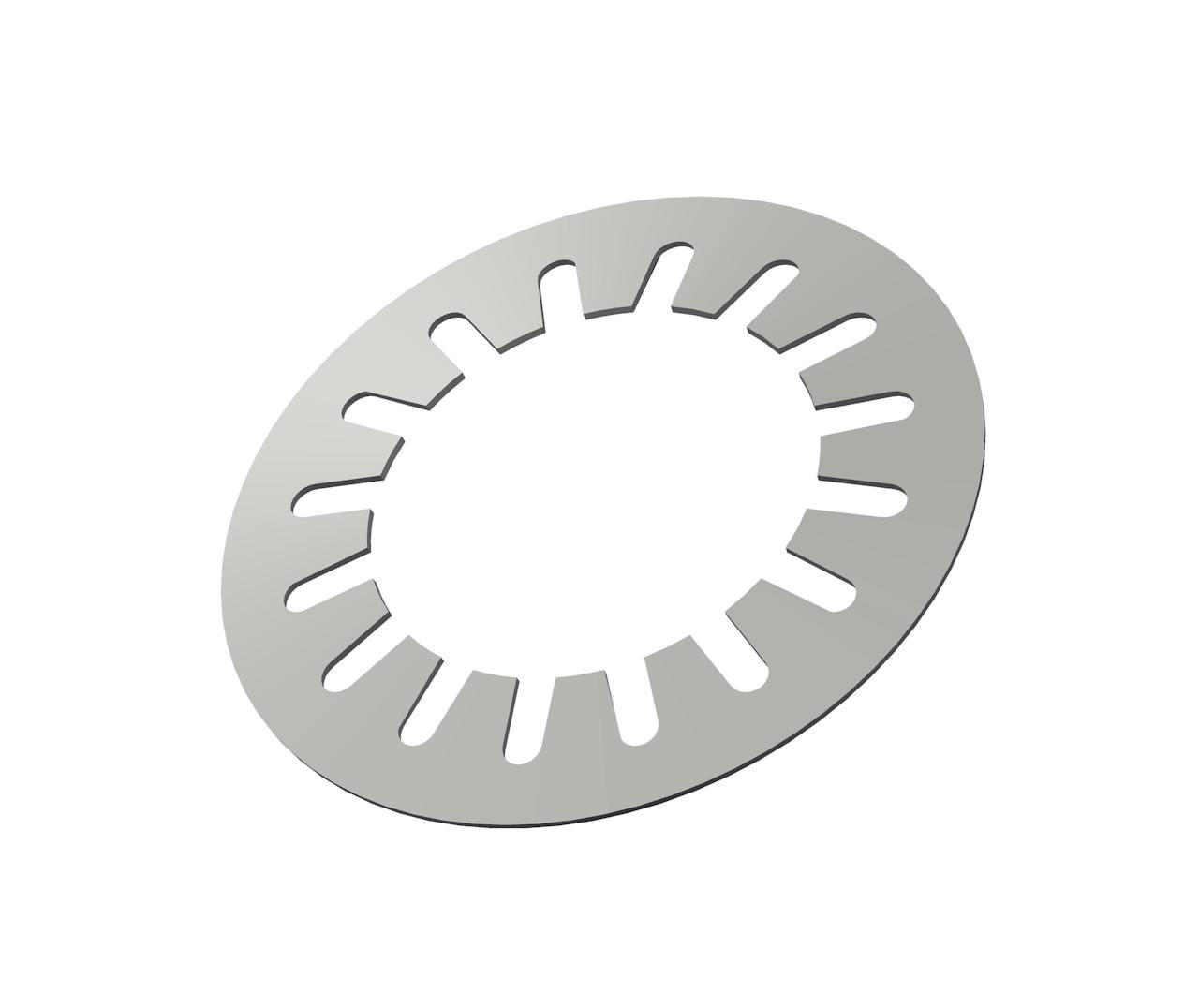

CSW-242750CS - 0.803 Inch ID 1.362 Inch OD Slotted Disc Spring

Inventory Status
Estimated Lead Time

Slotted disc spring manufactured from Spring Steel with an inside diameter of 0.803 Inch and an outside diameter of 1.362 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Ball Bearing Outside 1.378 in
Ball Bearing Size 6300
Brand Century Spring
Calculated Load at Approximate Deflection 7 lb
Deflection 0.039 in
Display Name CSW-242750
Finish None
H 0.051 in
Inside Diameter 0.803 in
Inside Diameter 3 0.394 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 1.362 in
Outside Height 0.065 in
SKU CSW-242750CS
T 0.014 in
h/t 0.043 in
Specs (in metric)
Label Value
Ball Bearing Outside 35 mm
Ball Bearing Size 6300
Brand Century Spring
Calculated Load at Approximate Deflection 3.17 kg
Deflection 0.99 mm
Display Name CSW-242750
Finish None
H 1.3 mm
Inside Diameter 20.4 mm
Inside Diameter 3 10.01 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 34.59 mm
Outside Height 1.65 mm
SKU CSW-242750CS
T 0.36 mm
h/t 1.09 mm
