Century Spring

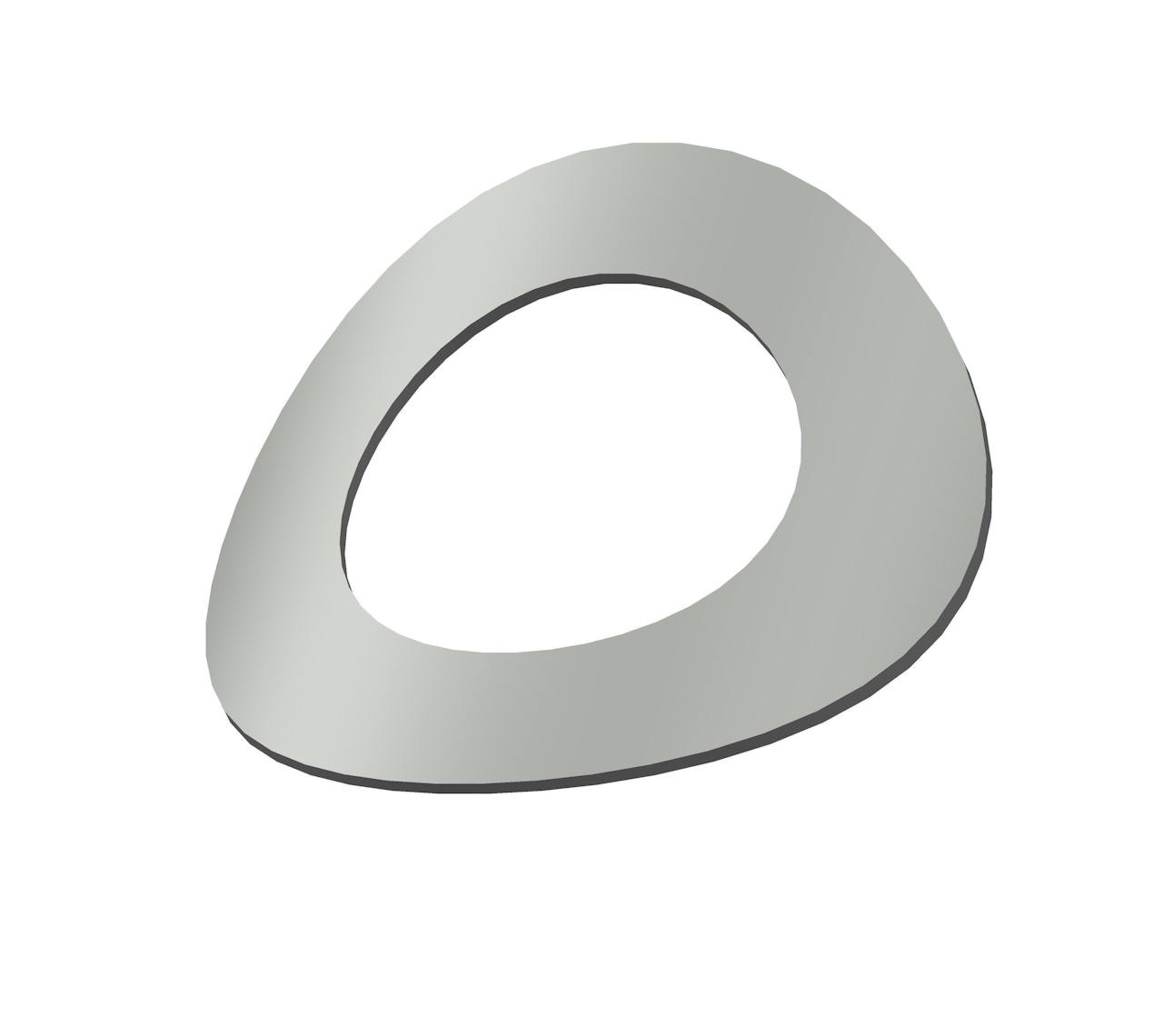

CRV-25368CS - 0.438 Inch ID 0.74 Inch OD Curved Disc Spring

Inventory Status
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.438 Inch and an outside diameter of 0.74 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 3/8
Brand Century Spring
Calculated Load at Approximate Deflection 13.4 lb
Deflection 0.045 in
Display Name CRV-25368
Finish None
Inside Diameter 0.438 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.74 in
Outside Height 0.14 in
SKU CRV-25368CS
T 0.015 in
Specs (in metric)
Label Value
Bolt Size 3/8
Brand Century Spring
Calculated Load at Approximate Deflection 6.08 kg
Deflection 1.14 mm
Display Name CRV-25368
Finish None
Inside Diameter 11.13 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 18.8 mm
Outside Height 3.56 mm
SKU CRV-25368CS
T 0.38 mm
