Century Spring

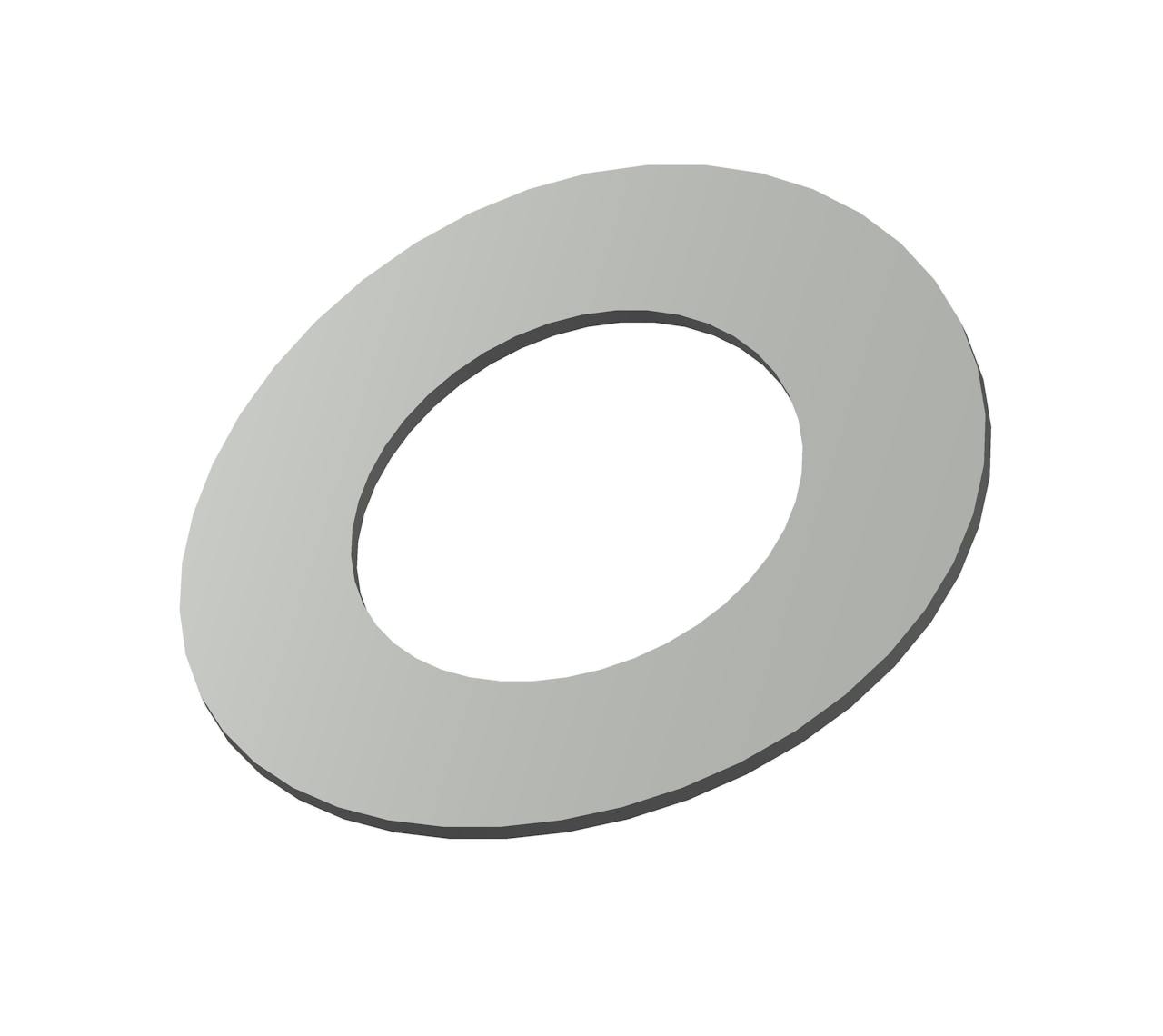

CRV-25354CS - 0.385 Inch ID 0.687 Inch OD Curved Disc Spring

Inventory Status
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.385 Inch and an outside diameter of 0.687 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 3/8
Brand Century Spring
Calculated Load at Approximate Deflection 10.9 lb
Deflection 0.024 in
Display Name CRV-25354
Finish None
Inside Diameter 0.385 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.687 in
Outside Height 0.04 in
SKU CRV-25354CS
T 0.016 in
Specs (in metric)
Label Value
Bolt Size 3/8
Brand Century Spring
Calculated Load at Approximate Deflection 4.94 kg
Deflection 0.61 mm
Display Name CRV-25354
Finish None
Inside Diameter 9.78 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 17.45 mm
Outside Height 1.02 mm
SKU CRV-25354CS
T 0.41 mm
