Century Spring

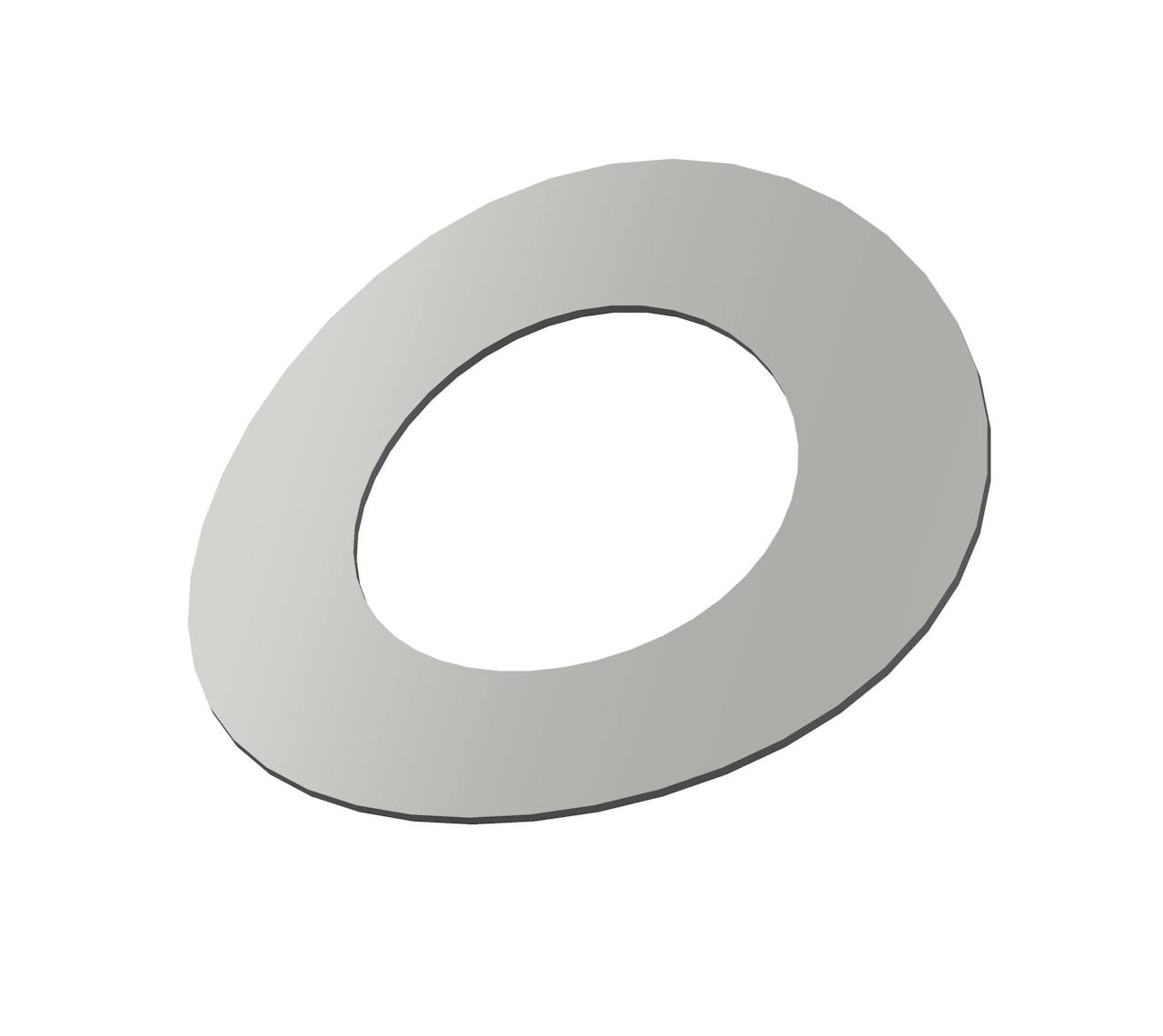

CRV-24739CS - 0.203 Inch ID 0.365 Inch OD Curved Disc Spring

Inventory Status
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.203 Inch and an outside diameter of 0.365 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size #10
Brand Century Spring
Calculated Load at Approximate Deflection 1.3 lb
Deflection 0.027 in
Display Name CRV-24739
Finish None
Inside Diameter 0.203 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.365 in
Outside Height 0.032 in
SKU CRV-24739CS
T 0.005 in
Specs (in metric)
Label Value
Bolt Size #10
Brand Century Spring
Calculated Load at Approximate Deflection 0.59 kg
Deflection 0.69 mm
Display Name CRV-24739
Finish None
Inside Diameter 5.16 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 9.27 mm
Outside Height 0.81 mm
SKU CRV-24739CS
T 0.13 mm
