Century Spring

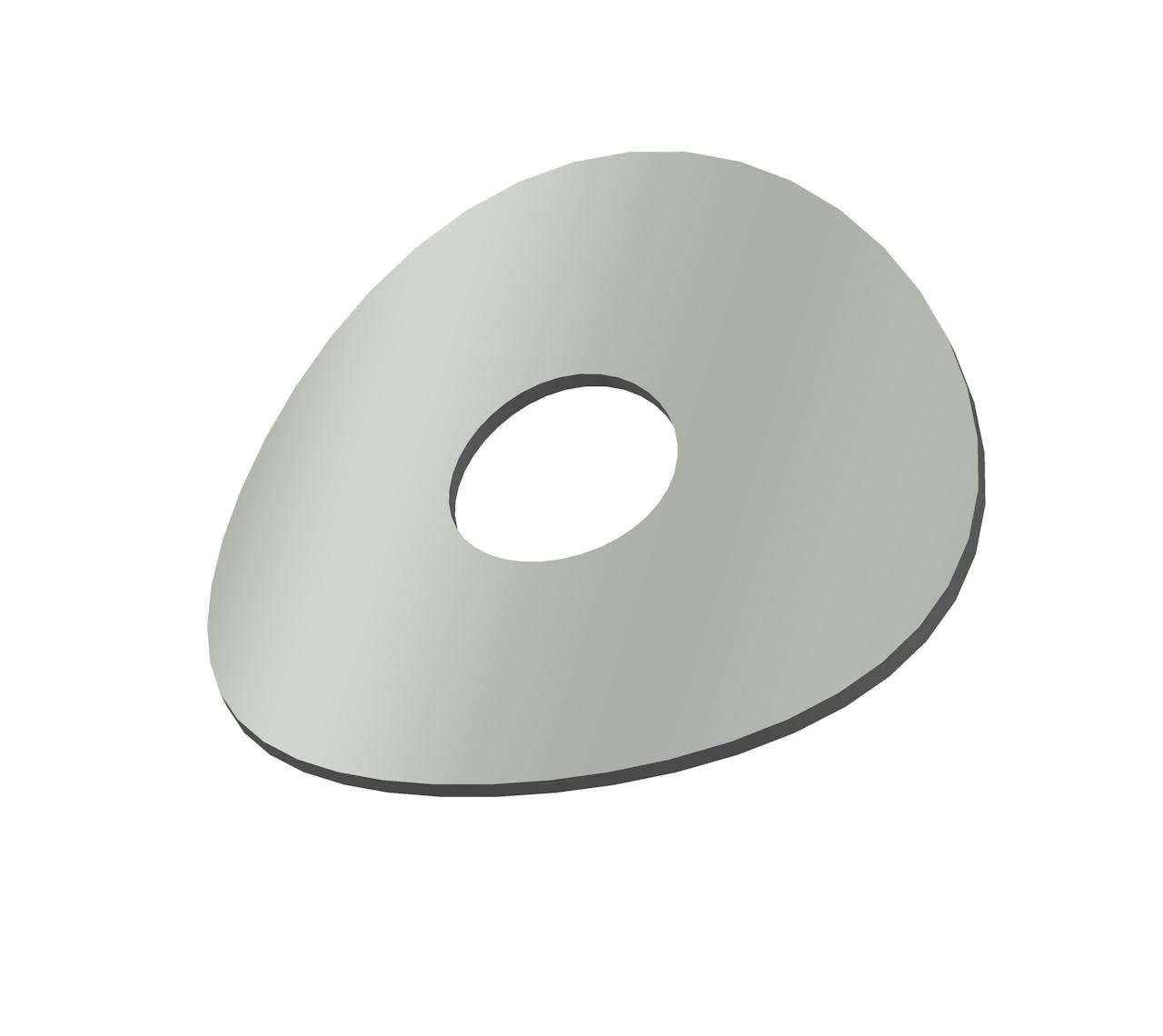

CRV-24465CS - 0.095 Inch ID 0.32 Inch OD Curved Disc Spring

Inventory Status
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.095 Inch and an outside diameter of 0.32 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size #2
Brand Century Spring
Calculated Load at Approximate Deflection 6.6 lb
Deflection 0.016 in
Display Name CRV-24465
Finish None
Inside Diameter 0.095 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.32 in
Outside Height 0.055 in
SKU CRV-24465CS
T 0.008 in
Specs (in metric)
Label Value
Bolt Size #2
Brand Century Spring
Calculated Load at Approximate Deflection 2.99 kg
Deflection 0.41 mm
Display Name CRV-24465
Finish None
Inside Diameter 2.41 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 8.13 mm
Outside Height 1.4 mm
SKU CRV-24465CS
T 0.2 mm
