Century Spring

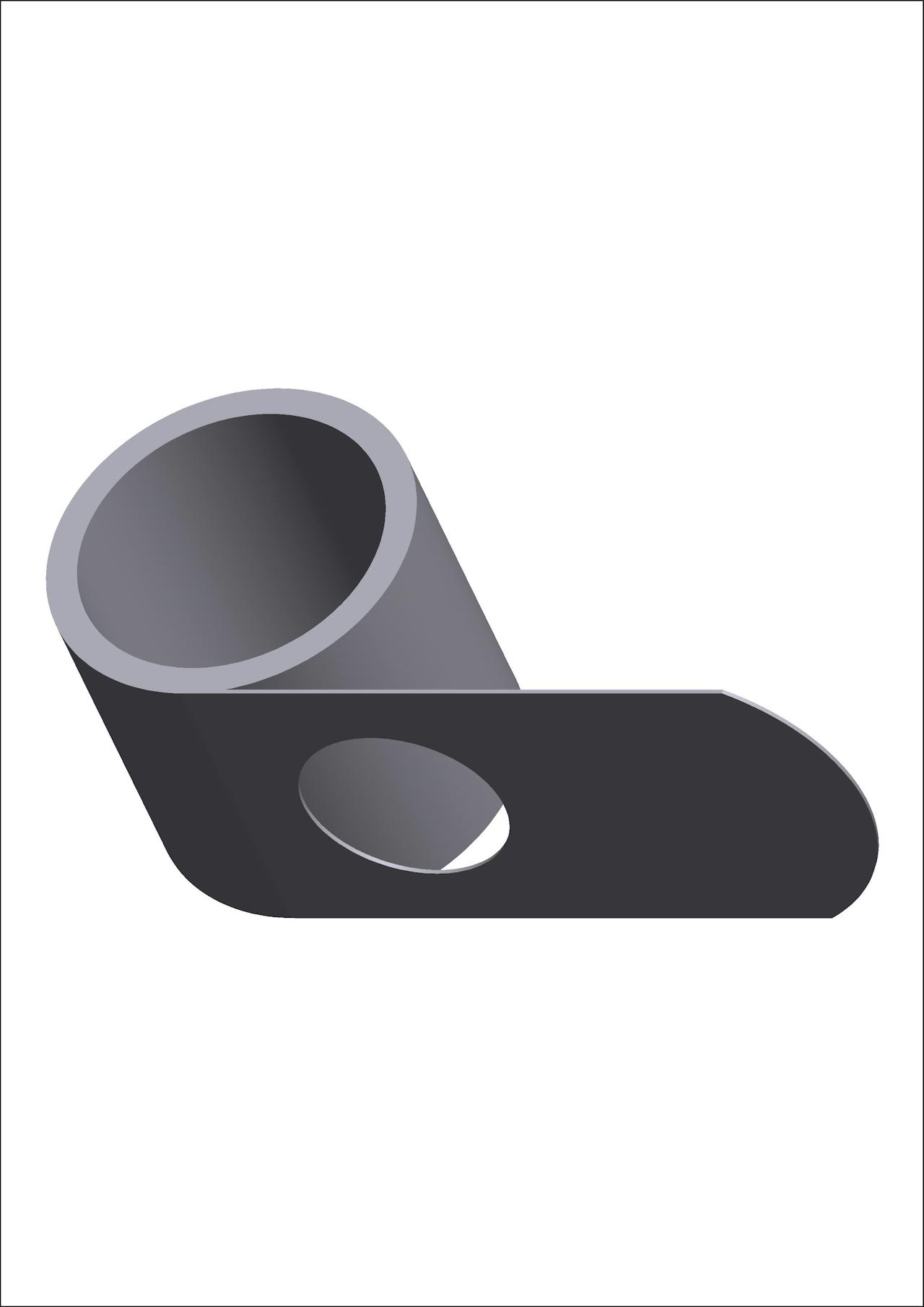

CF83CS - 0.312 Inch x 15 Inch Constant Force Spring

Inventory Status
Estimated Lead Time

0.83 Pound constant force spring - 0.312 Inch by 15 Inch with a hole diameter of 0.33 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CF83
Drum Diameter 0.336 in
Finish None
Hole Diameter 0.33 in
Inside Diameter 0.28 in
Length 15 in
Load 0.83 lb
Material Spring Steel
Measurement Units Standard
Number of Holes 1
SKU CF83CS
Thickness 0.004 in
Width 0.312 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CF83
Drum Diameter 8.53 mm
Finish None
Hole Diameter 8.38 mm
Inside Diameter 7.11 mm
Length 381 mm
Load 0.38 kg
Material Spring Steel
Measurement Units Standard
Number of Holes 1
SKU CF83CS
Thickness 0.1 mm
Width 7.92 mm
