Century Spring

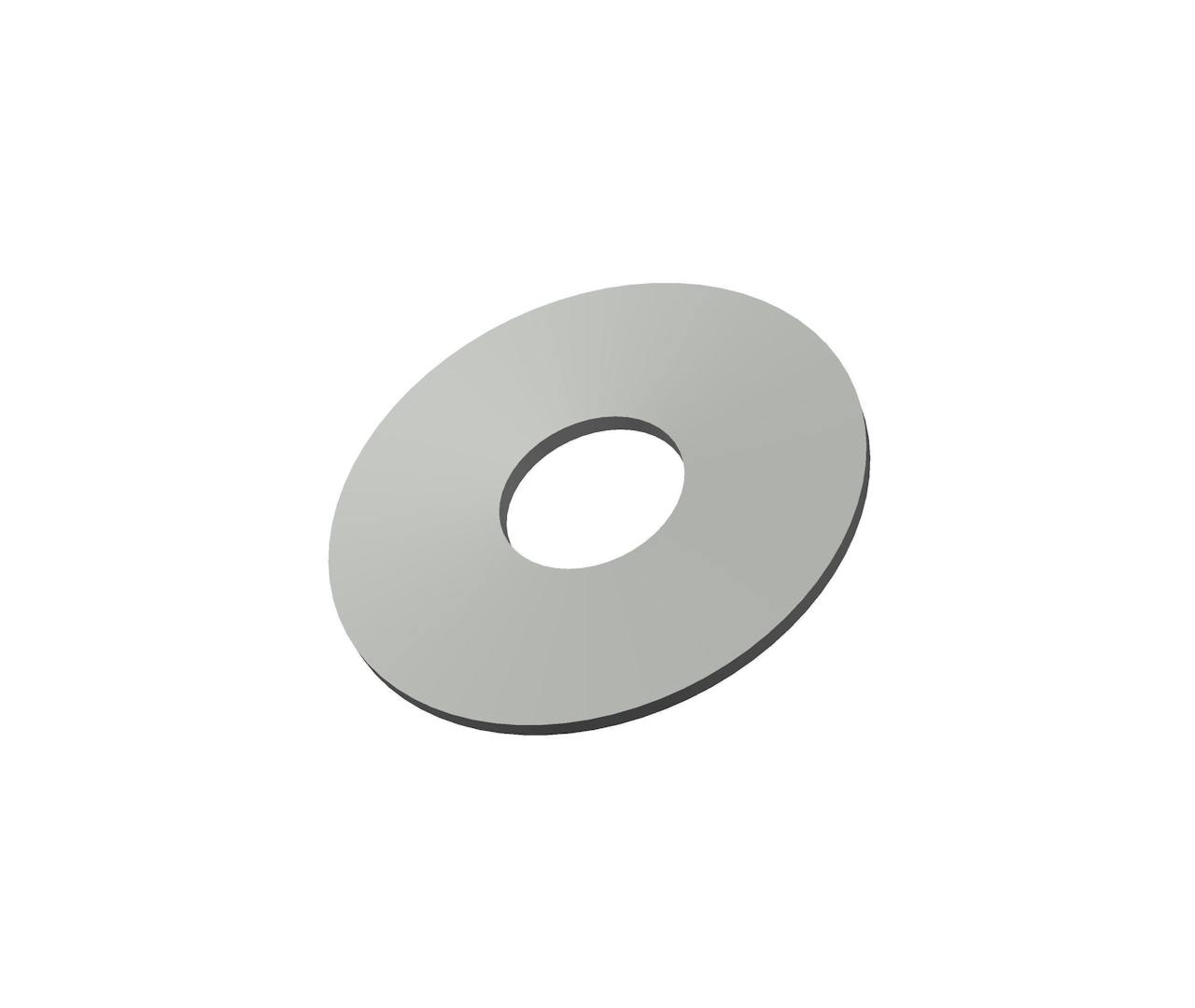

CDS-561919CS - 0.19 Inch ID 0.562 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.19 Inch and an outside diameter of 0.562 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 0.1875
Brand Century Spring
Display Name CDS-561919
Finish Phosphate
H 0.018 in
Inside Diameter 0.19 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.018 in
Maximum Force at 100% Height 67 lb
Measurement Units Standard
Outside Diameter 0.562 in
Outside Height 0.037 in
SKU CDS-561919CS
T 0.019 in
Specs (in metric)
Label Value
Bolt Size 0.19
Brand Century Spring
Display Name CDS-561919
Finish Phosphate
H 0.46 mm
Inside Diameter 4.83 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.46 mm
Maximum Force at 100% Height 30.39 kg
Measurement Units Standard
Outside Diameter 14.27 mm
Outside Height 0.94 mm
SKU CDS-561919CS
T 0.48 mm
