Century Spring

CDS-105043CS - 0.512 Inch ID 1 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.512 Inch and an outside diameter of 1 Inch.

Download CAD
Unit System

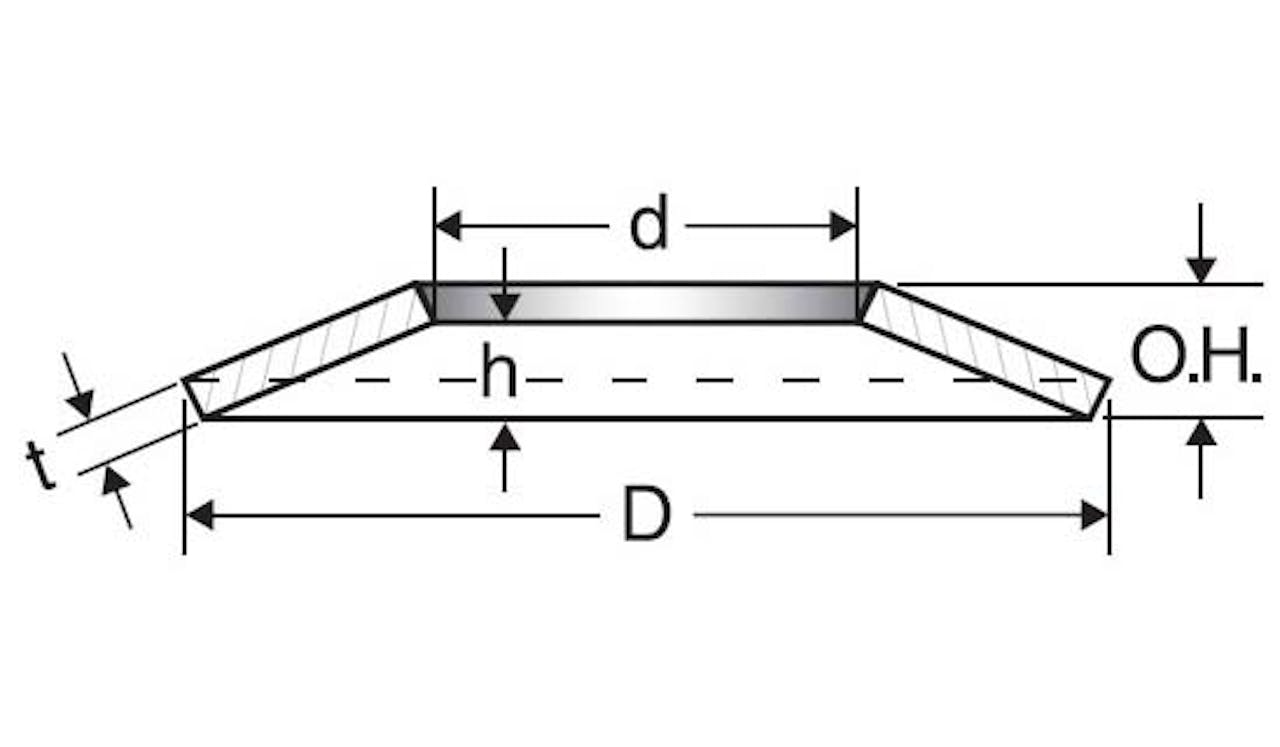

Specs (in standard)
Label Value
Bolt Size 0.5
Brand Century Spring
Display Name CDS-105043
Finish Phosphate
H 0.028 in
Inside Diameter 0.512 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.028 in
Maximum Force at 100% Height 431 lb
Measurement Units Standard
Outside Diameter 1 in
Outside Height 0.071 in
SKU CDS-105043CS
T 0.043 in
Specs (in metric)
Label Value
Bolt Size 0.5
Brand Century Spring
Display Name CDS-105043
Finish Phosphate
H 0.71 mm
Inside Diameter 13 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.71 mm
Maximum Force at 100% Height 195.46 kg
Measurement Units Standard
Outside Diameter 25.4 mm
Outside Height 1.8 mm
SKU CDS-105043CS
T 1.09 mm
