Century Spring

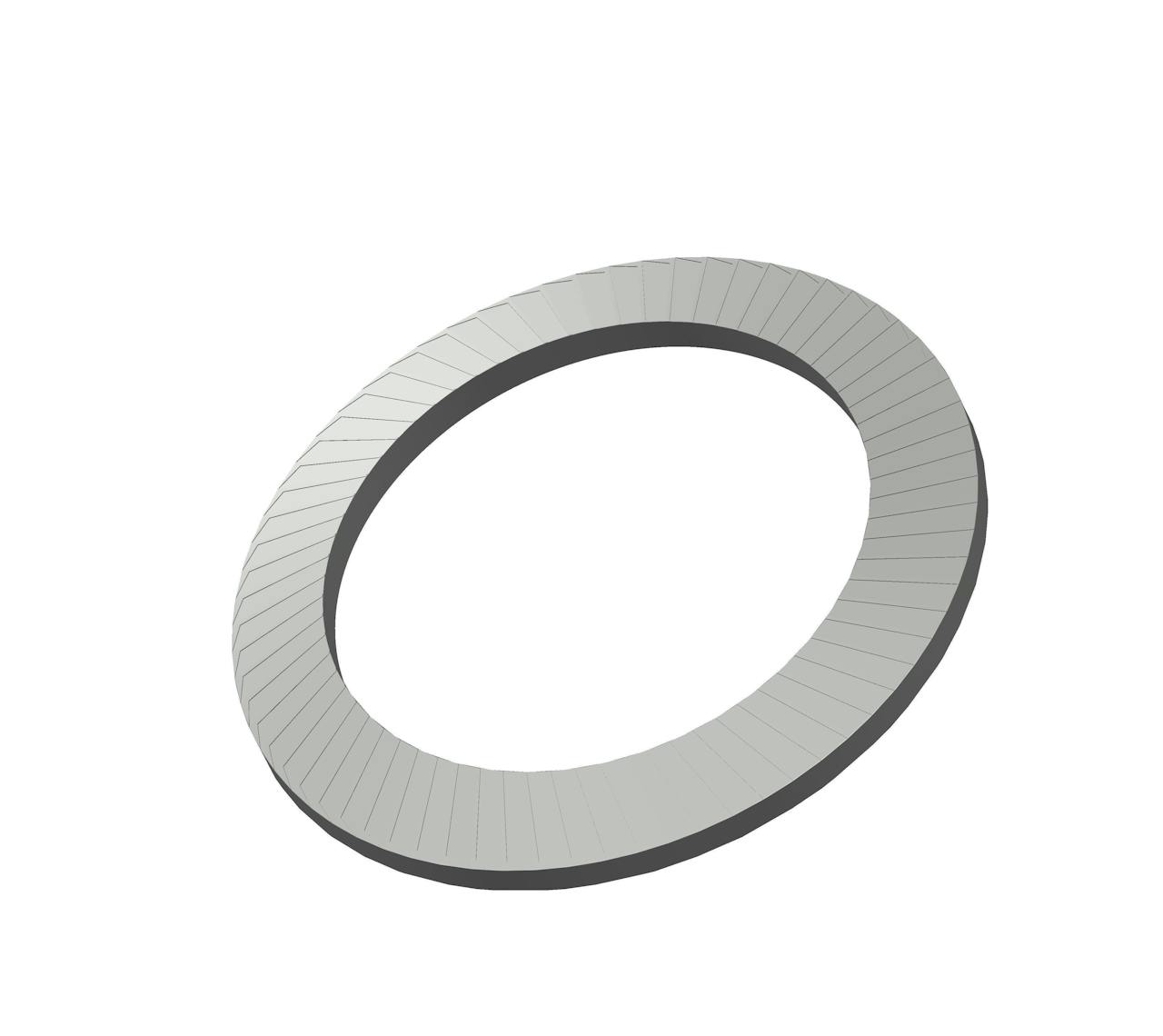

CCS027CS - 1.126 Inch ID 1.535 Inch OD Serrated Disc Spring

Inventory Status
Estimated Lead Time

Serrated disc spring manufactured from Spring Steel with an inside diameter of 1.126 Inch and an outside diameter of 1.535 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CCS027
Finish None
H 0.093 in
Inside Diameter 1.126 in
Material Spring Steel
Max H 0.122 in
Measurement Units Standard
Outside Diameter 1.535 in
Outside Height 0.122 in
SKU CCS027CS
Series Light Series
T 0.071 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CCS027
Finish None
H 2.36 mm
Inside Diameter 28.6 mm
Material Spring Steel
Max H 3.1 mm
Measurement Units Standard
Outside Diameter 38.99 mm
Outside Height 3.1 mm
SKU CCS027CS
Series Light Series
T 1.8 mm
