Century Spring

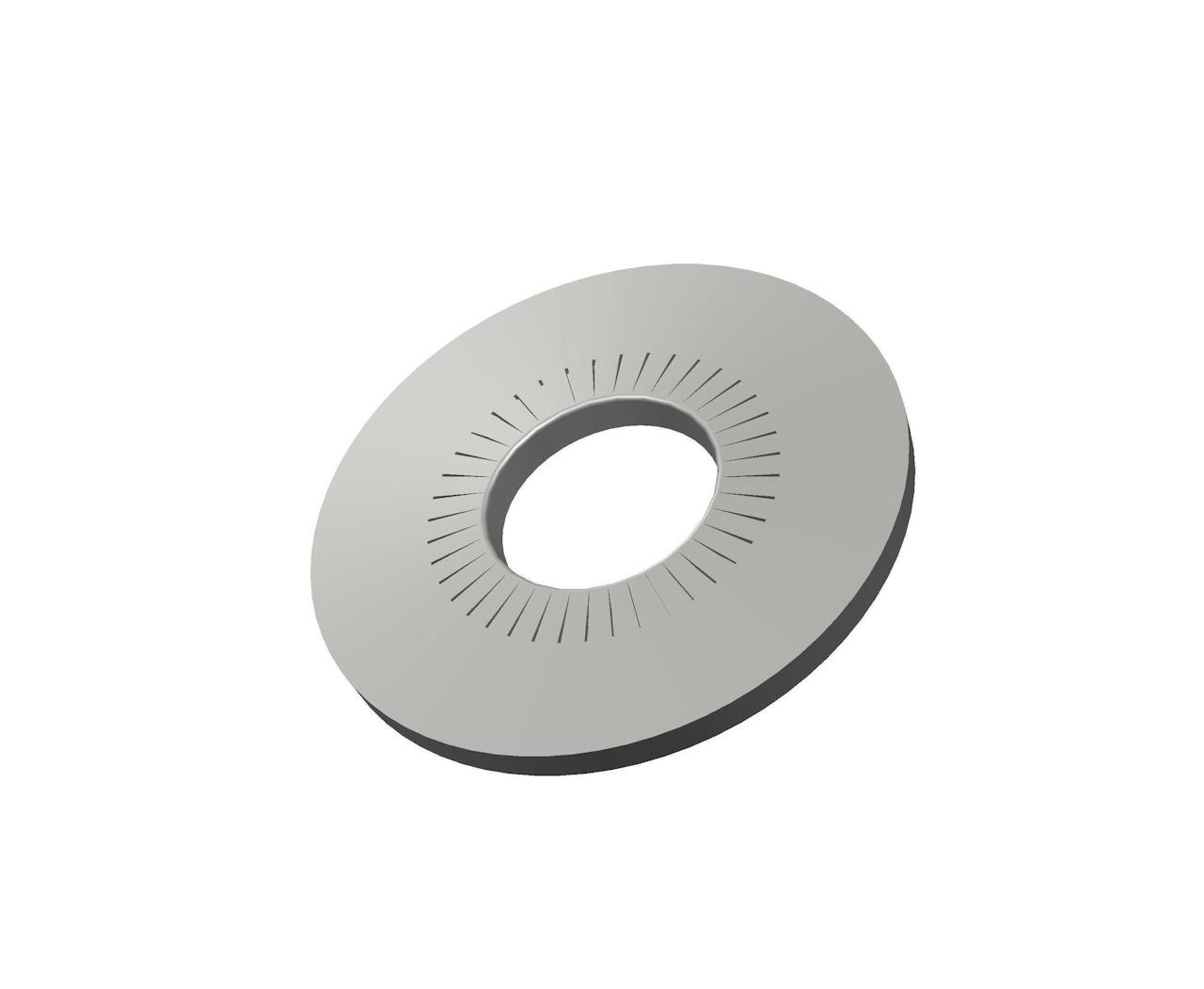

CBS-750822CS - 0.323 Inch ID 0.877 Inch OD Contact Disc Spring

Inventory Status
Estimated Lead Time

Contact disc spring manufactured from Carbon Steel with an inside diameter of 0.323 Inch and an outside diameter of 0.877 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 0.313
Brand Century Spring
Display Name CBS-750822
Finish None
Inside Diameter 0.323 in
Load at Flat 1610 lb
Material Carbon Steel
Measurement Units Standard
Outside Diameter 0.877 in
Outside Height 0.095 in
SKU CBS-750822CS
Screw Size 10
T 0.055 in
Type Wide
Specs (in metric)
Label Value
Bolt Size 0.31
Brand Century Spring
Display Name CBS-750822
Finish None
Inside Diameter 8.2 mm
Load at Flat 730.16 kg
Material Carbon Steel
Measurement Units Standard
Outside Diameter 22.28 mm
Outside Height 2.41 mm
SKU CBS-750822CS
Screw Size 10
T 1.4 mm
Type Wide
