Maryland Precision Spring

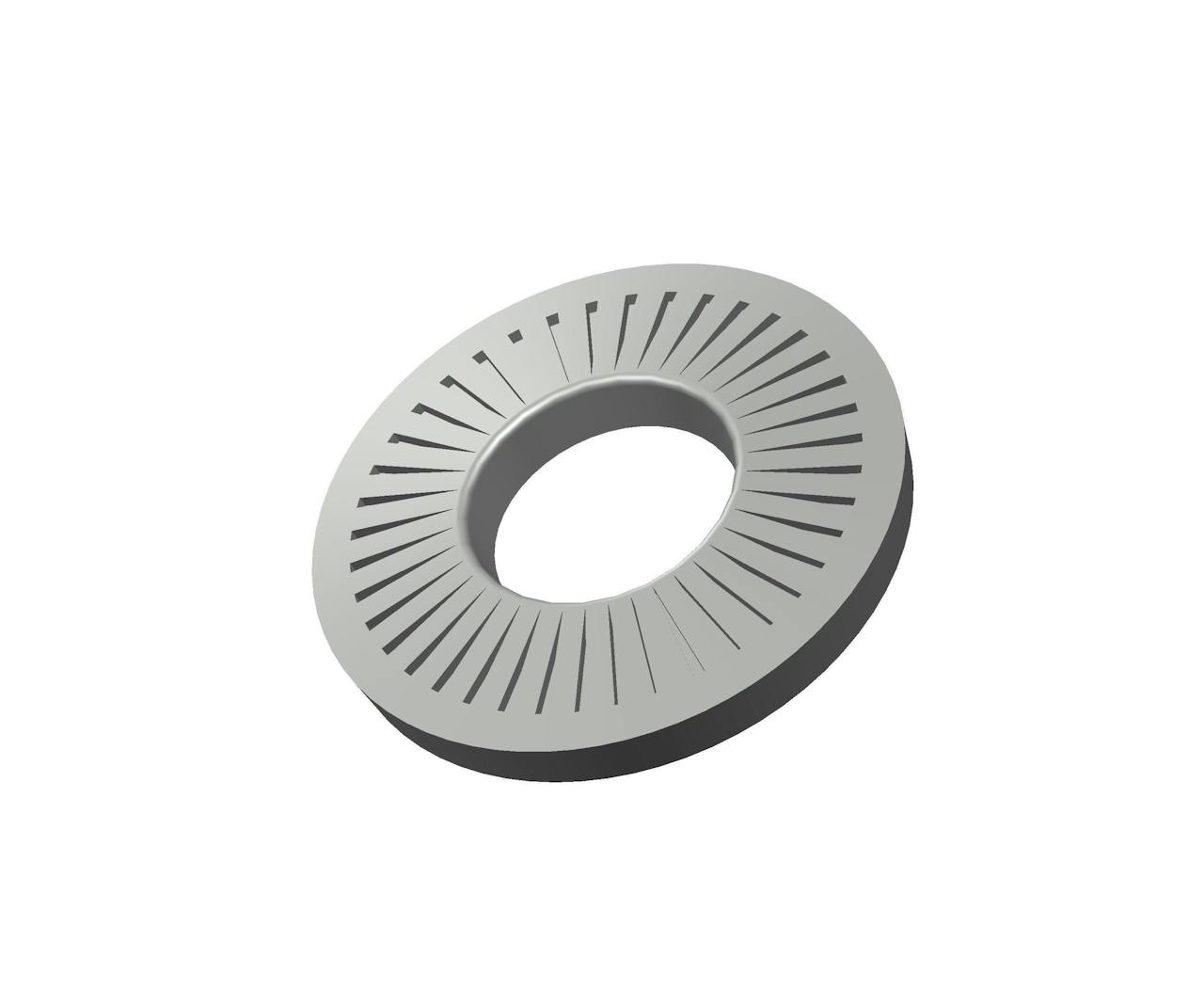

C65-05-11 - 0.201 Inch ID 0.481 Inch OD Contact Disc Spring

Inventory Status
Estimated Lead Time

Contact disc spring manufactured from Carbon Steel with an inside diameter of 0.201 Inch and an outside diameter of 0.481 Inch.

Unit System
Specs (in standard)
Label Value
Bolt Size #10
Brand Maryland Precision Spring
Display Name C65-05-11
Finish Plain
Inside Diameter 0.201 in
Load at Flat 2420 lb
Material Carbon Steel
Measurement Units Standard
Outside Diameter 0.481 in
Outside Height 0.073 in
SKU C65-05-11
Screw Size 5
T 0.05 in
Type Regular
Specs (in metric)
Label Value
Bolt Size #10
Brand Maryland Precision Spring
Display Name C65-05-11
Finish Plain
Inside Diameter 5.11 mm
Load at Flat 1097.51 kg
Material Carbon Steel
Measurement Units Standard
Outside Diameter 12.22 mm
Outside Height 1.85 mm
SKU C65-05-11
Screw Size 5
T 1.27 mm
Type Regular
