Century Spring

BB-R-4CS - 0.406 Inch ID 0.618 Inch OD 1075 Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

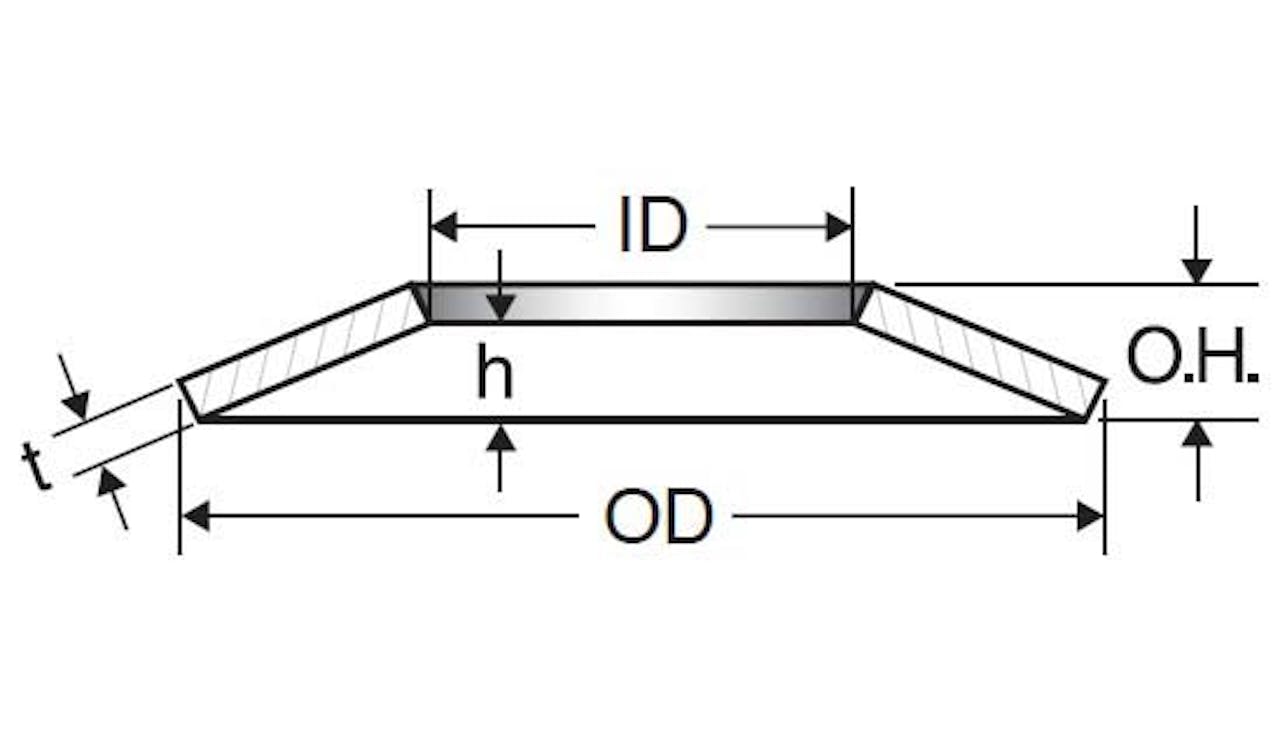

Disc spring manufactured from 1075 Steel with an inside diameter of 0.406 Inch and an outside diameter of 0.618 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Ball Bearing Size R-4
Brand Century Spring
Deflection at 75% Height 0.009 in
Display Name BB-R-4
Finish None
Inside Diameter 0.406 in
Load at 75% Height 6.8 lb
Material 1075 Steel
Measurement Units Standard
Outside Diameter 0.618 in
Outside Height 0.022 in
SKU BB-R-4CS
T 0.01 in
Specs (in metric)
Label Value
Ball Bearing Size R-4
Brand Century Spring
Deflection at 75% Height 0.23 mm
Display Name BB-R-4
Finish None
Inside Diameter 10.31 mm
Load at 75% Height 3.08 kg
Material 1075 Steel
Measurement Units Standard
Outside Diameter 15.7 mm
Outside Height 0.56 mm
SKU BB-R-4CS
T 0.25 mm
