Century Spring

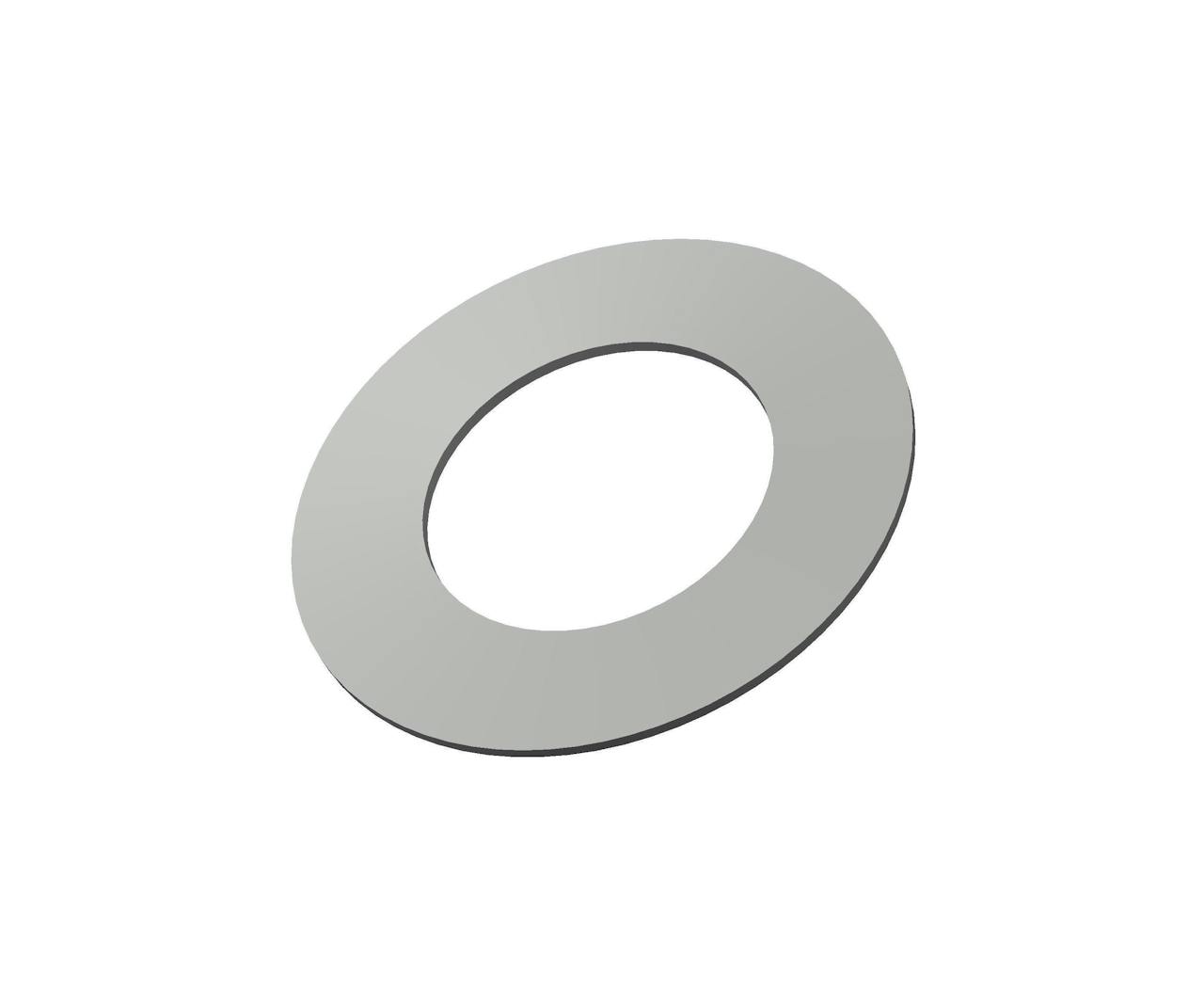

BB-624CS - 0.283 Inch ID 0.504 Inch OD 1075 Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 Steel with an inside diameter of 0.283 Inch and an outside diameter of 0.504 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Ball Bearing Size 624, EL-4
Brand Century Spring
Deflection at 75% Height 0.008 in
Display Name BB-624
Finish None
Inside Diameter 0.283 in
Load at 75% Height 6.7 lb
Material 1075 Steel
Measurement Units Standard
Outside Diameter 0.504 in
Outside Height 0.02 in
SKU BB-624CS
T 0.01 in
Specs (in metric)
Label Value
Ball Bearing Size 624, EL-4
Brand Century Spring
Deflection at 75% Height 0.2 mm
Display Name BB-624
Finish None
Inside Diameter 7.19 mm
Load at 75% Height 3.04 kg
Material 1075 Steel
Measurement Units Standard
Outside Diameter 12.8 mm
Outside Height 0.51 mm
SKU BB-624CS
T 0.25 mm
