Century Spring

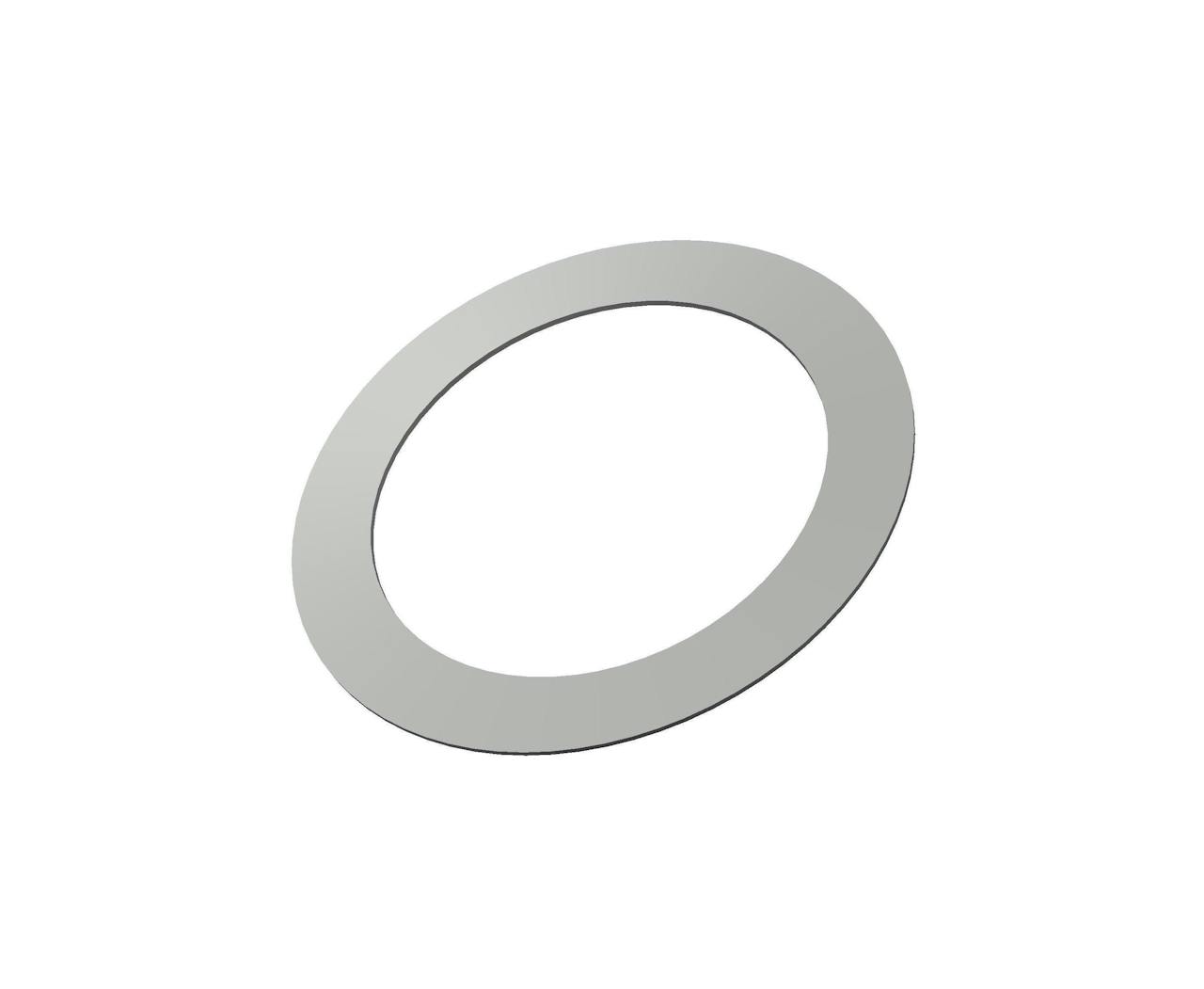

BB-6011CS - 2.579 Inch ID 3.524 Inch OD 1075 Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 Steel with an inside diameter of 2.579 Inch and an outside diameter of 3.524 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Ball Bearing Size 6011, 6210
Brand Century Spring
Deflection at 75% Height 0.048 in
Display Name BB-6011
Finish None
Inside Diameter 2.579 in
Load at 75% Height 76.9 lb
Material 1075 Steel
Measurement Units Standard
Outside Diameter 3.524 in
Outside Height 0.098 in
SKU BB-6011CS
T 0.035 in
Specs (in metric)
Label Value
Ball Bearing Size 6011, 6210
Brand Century Spring
Deflection at 75% Height 1.22 mm
Display Name BB-6011
Finish None
Inside Diameter 65.51 mm
Load at 75% Height 34.88 kg
Material 1075 Steel
Measurement Units Standard
Outside Diameter 89.51 mm
Outside Height 2.49 mm
SKU BB-6011CS
T 0.89 mm
