Century Spring

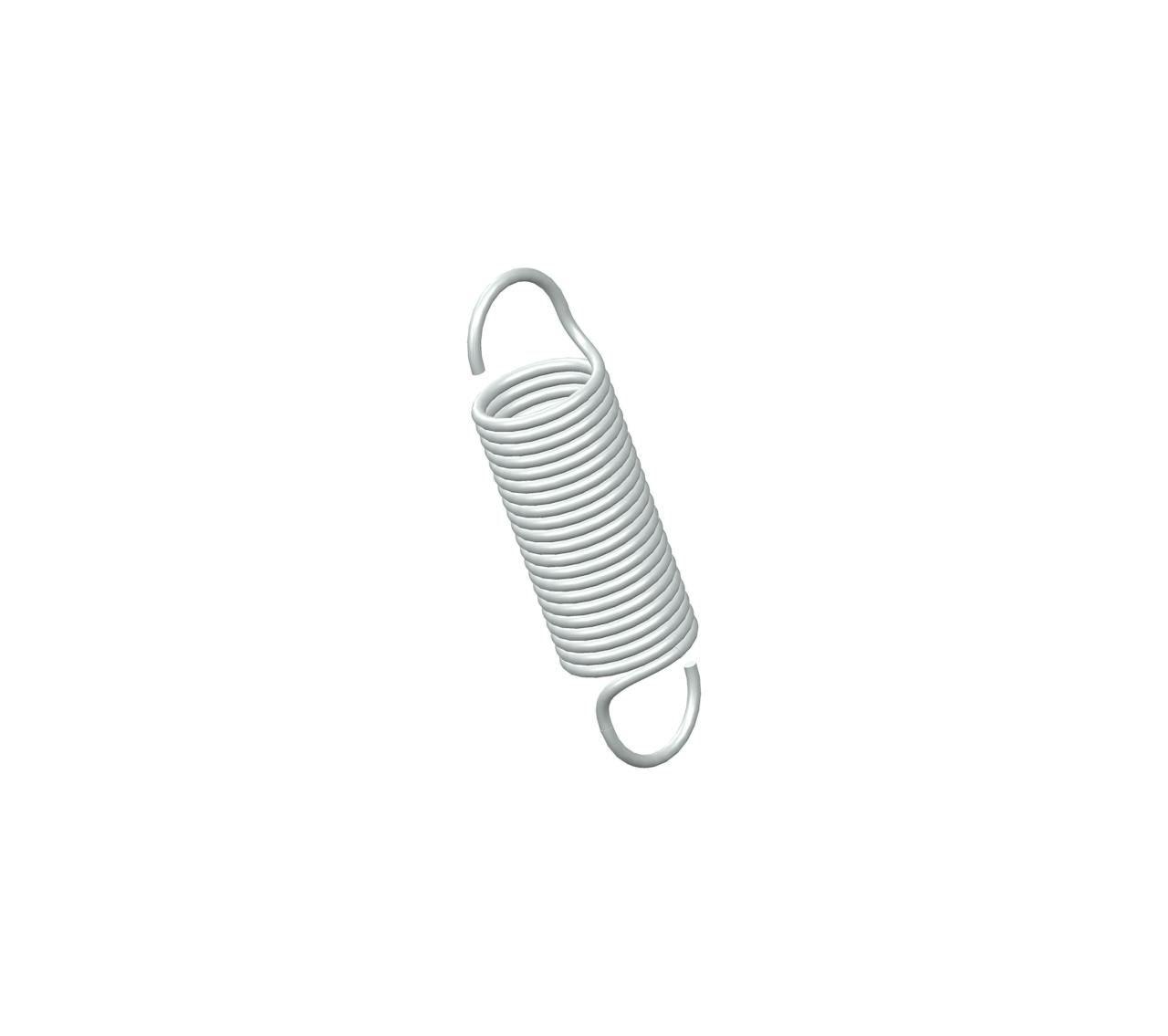

B6-18CS - 1 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 0.3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B6-18
Ends Machine Hook
Finish None
Initial Tension 0.3 lb
Length 1 in
Material 302/304 Stainless Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 1.5 lbs/in
SKU B6-18CS
Sugg Max Deflection 1.2 in
Sugg Max Load 2.1 lbf
Wind Direction Left
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B6-18
Ends Machine Hook
Finish None
Initial Tension 0.14 kg
Length 25.4 mm
Material 302/304 Stainless Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 0.26 N/mm
SKU B6-18CS
Sugg Max Deflection 30.48 mm
Sugg Max Load 9.34 N
Wind Direction Left
Wire Diameter 0.64 mm
