Century Spring

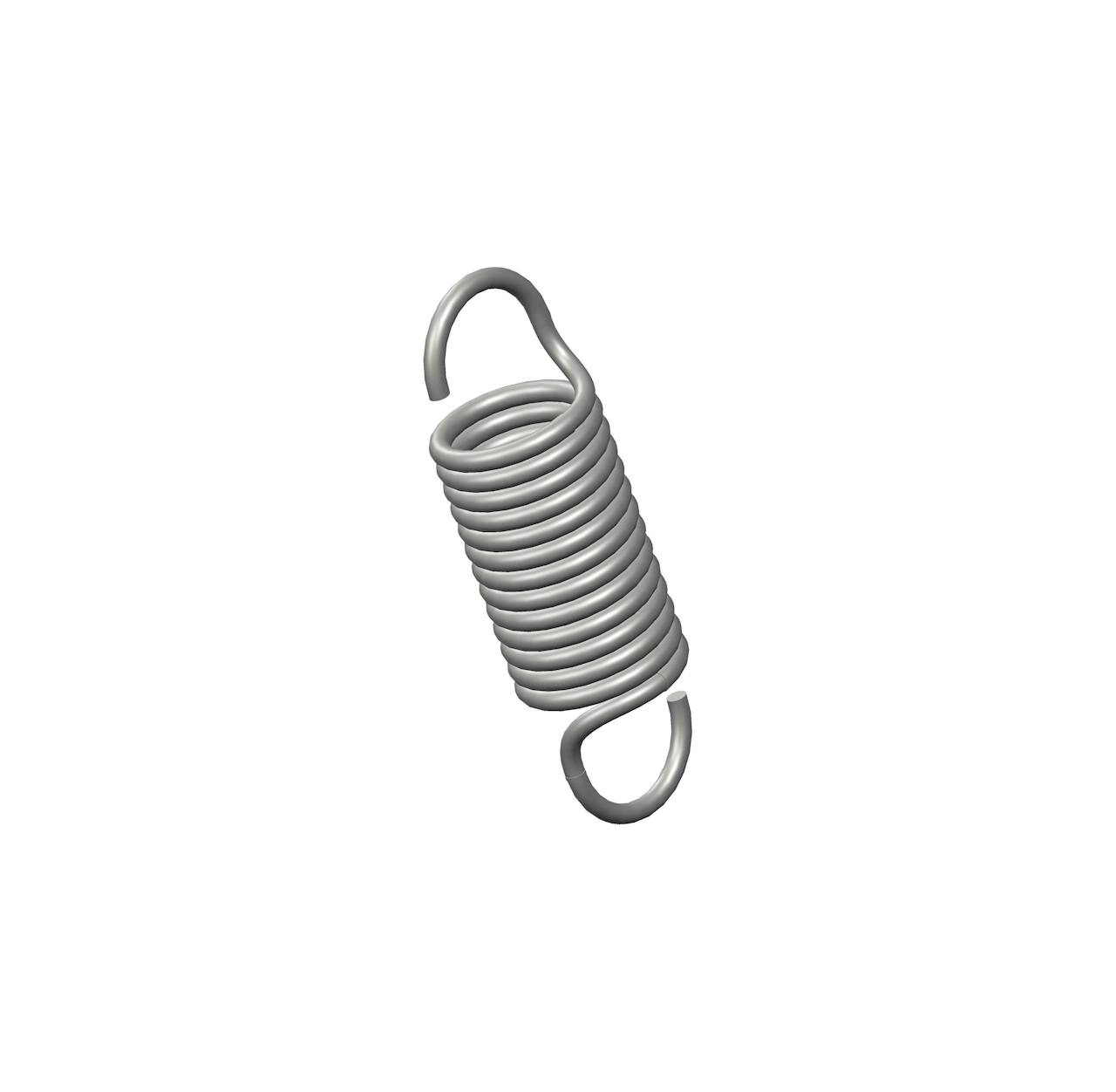

B5-32CS - 1.28 Inch Spring Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B5-32
Ends Machine Hook
Finish None
Initial Tension 2 lb
Length 1.28 in
Material Spring Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 9.6 lbs/in
SKU B5-32CS
Sugg Max Deflection 0.79 in
Sugg Max Load 9.2 lbf
Wind Direction Left
Wire Diameter 0.045 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B5-32
Ends Machine Hook
Finish None
Initial Tension 0.91 kg
Length 32.51 mm
Material Spring Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 1.68 N/mm
SKU B5-32CS
Sugg Max Deflection 20.07 mm
Sugg Max Load 40.92 N
Wind Direction Left
Wire Diameter 1.14 mm
