Maryland Precision Spring

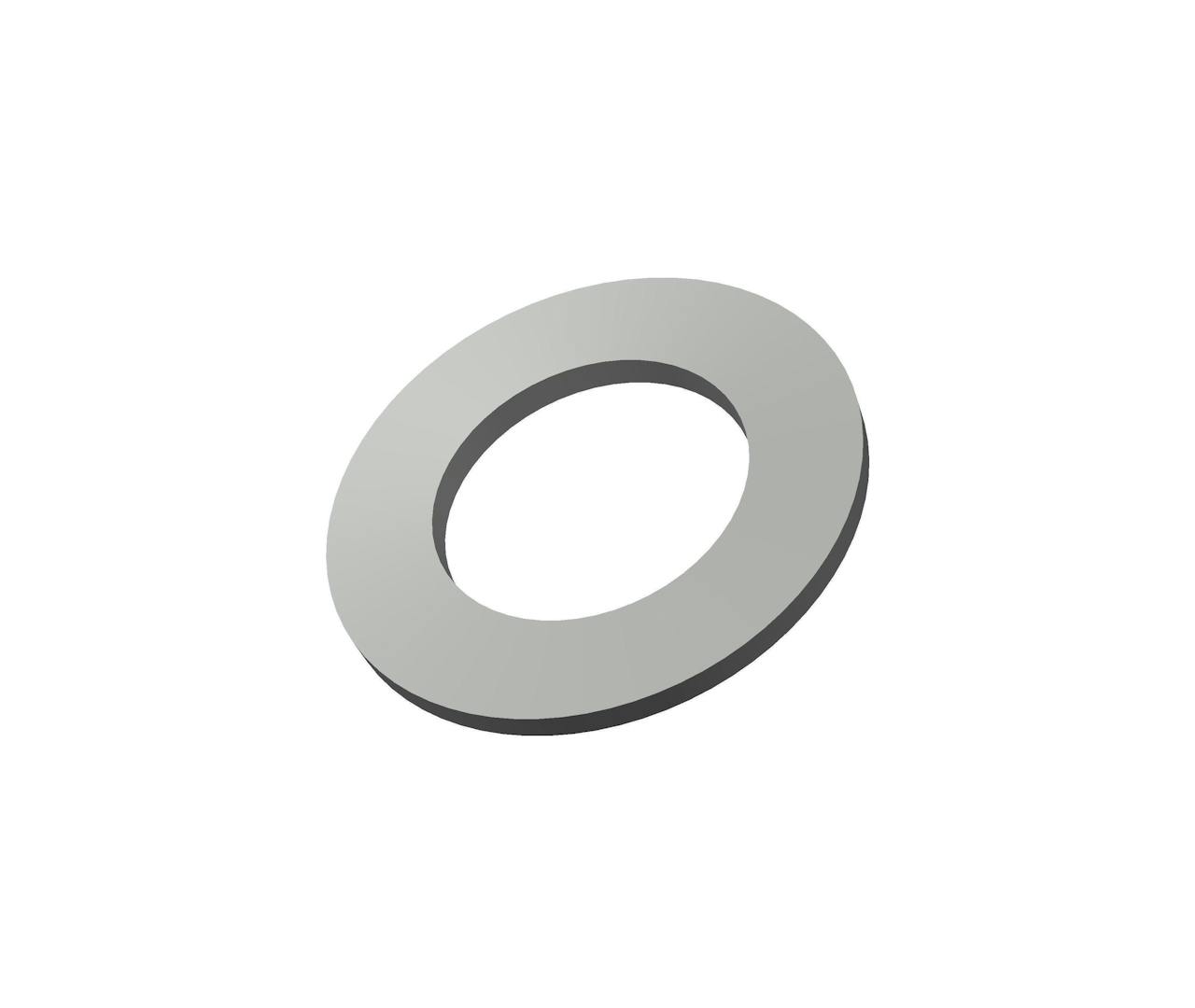

AM-704140 - 1.595 Inch ID 2.76 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 1.595 Inch and an outside diameter of 2.76 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 2024 lb
Deflection at 100% Height 0.0641 in
Deflection at 50% Height 0.032 in
Deflection at 75% Height 0.048 in
Display Name AM-704140
Finish None
Inside Diameter 1.595 in
Load at 100% Height 7304 lb
Load at 50% Height 3878 lb
Load at 75% Height 5619 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 2.76 in
Outside Height 0.2205 in
SKU AM-704140
T 0.1575 in
h/t 0.407 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 917.91 kg
Deflection at 100% Height 1.63 mm
Deflection at 50% Height 0.81 mm
Deflection at 75% Height 1.22 mm
Display Name AM-704140
Finish None
Inside Diameter 40.51 mm
Load at 100% Height 3312.47 kg
Load at 50% Height 1758.73 kg
Load at 75% Height 2548.3 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 70.1 mm
Outside Height 5.6 mm
SKU AM-704140
T 4 mm
h/t 10.34 mm
