Maryland Precision Spring

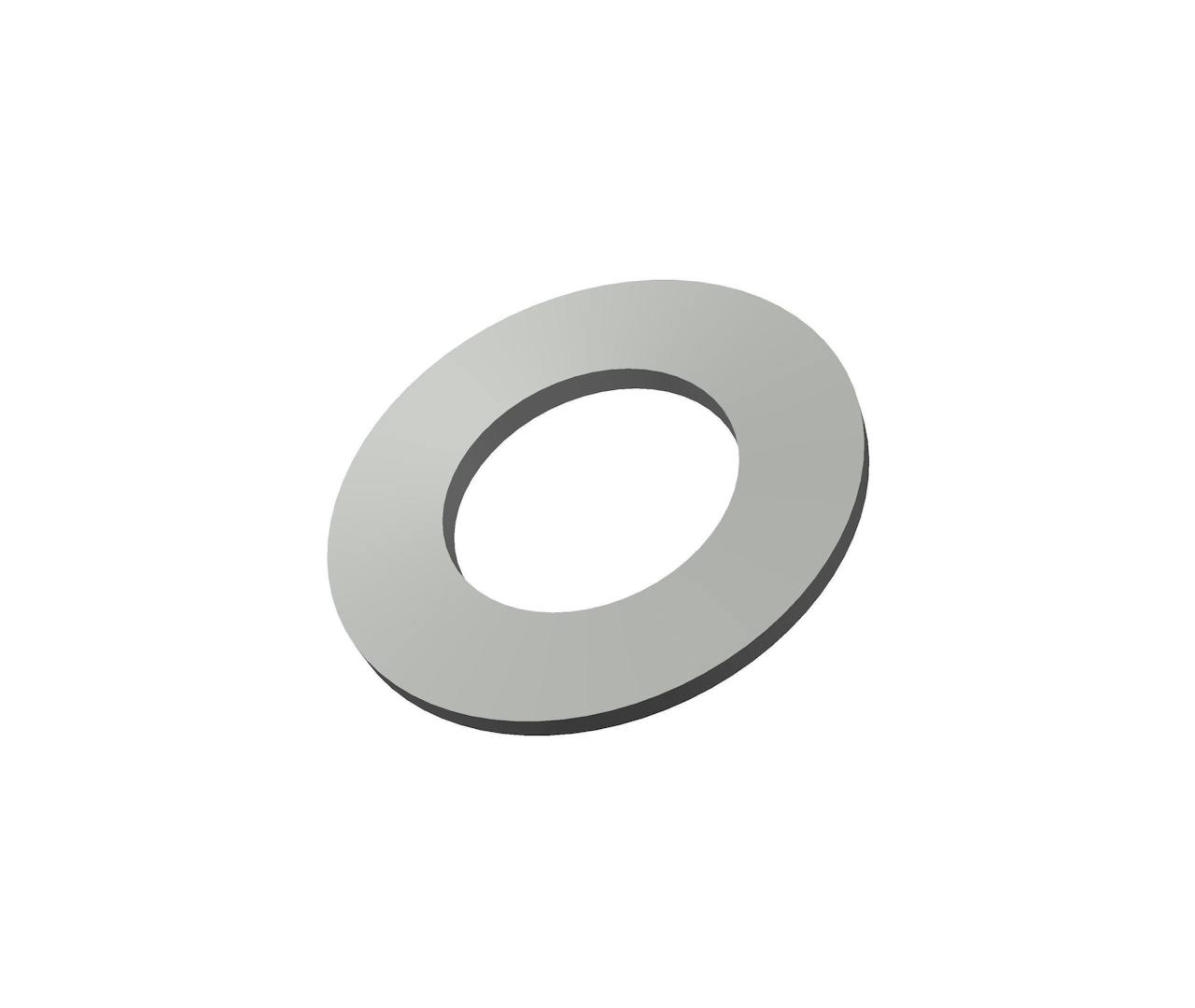

AM-1508180 - 3.19 Inch ID 5.91 Inch OD 1075 High Carbon Steel Disc Spring Washer

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 3.19 Inch and an outside diameter of 5.91 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 8090 lb
Deflection at 100% Height 0.1682 in
Deflection at 50% Height 0.0841 in
Deflection at 75% Height 0.1262 in
Display Name AM-1508180
Finish None
Inside Diameter 3.19 in
Load at 100% Height 26669 lb
Load at 50% Height 14960 lb
Load at 75% Height 21018 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 5.91 in
Outside Height 0.4606 in
SKU AM-1508180
T 0.295 in
h/t 0.57 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 3668.93 kg
Deflection at 100% Height 4.27 mm
Deflection at 50% Height 2.14 mm
Deflection at 75% Height 3.21 mm
Display Name AM-1508180
Finish None
Inside Diameter 81.03 mm
Load at 100% Height 12094.78 kg
Load at 50% Height 6784.58 kg
Load at 75% Height 9531.97 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 150.11 mm
Outside Height 11.7 mm
SKU AM-1508180
T 7.49 mm
h/t 14.48 mm
