Maryland Precision Spring

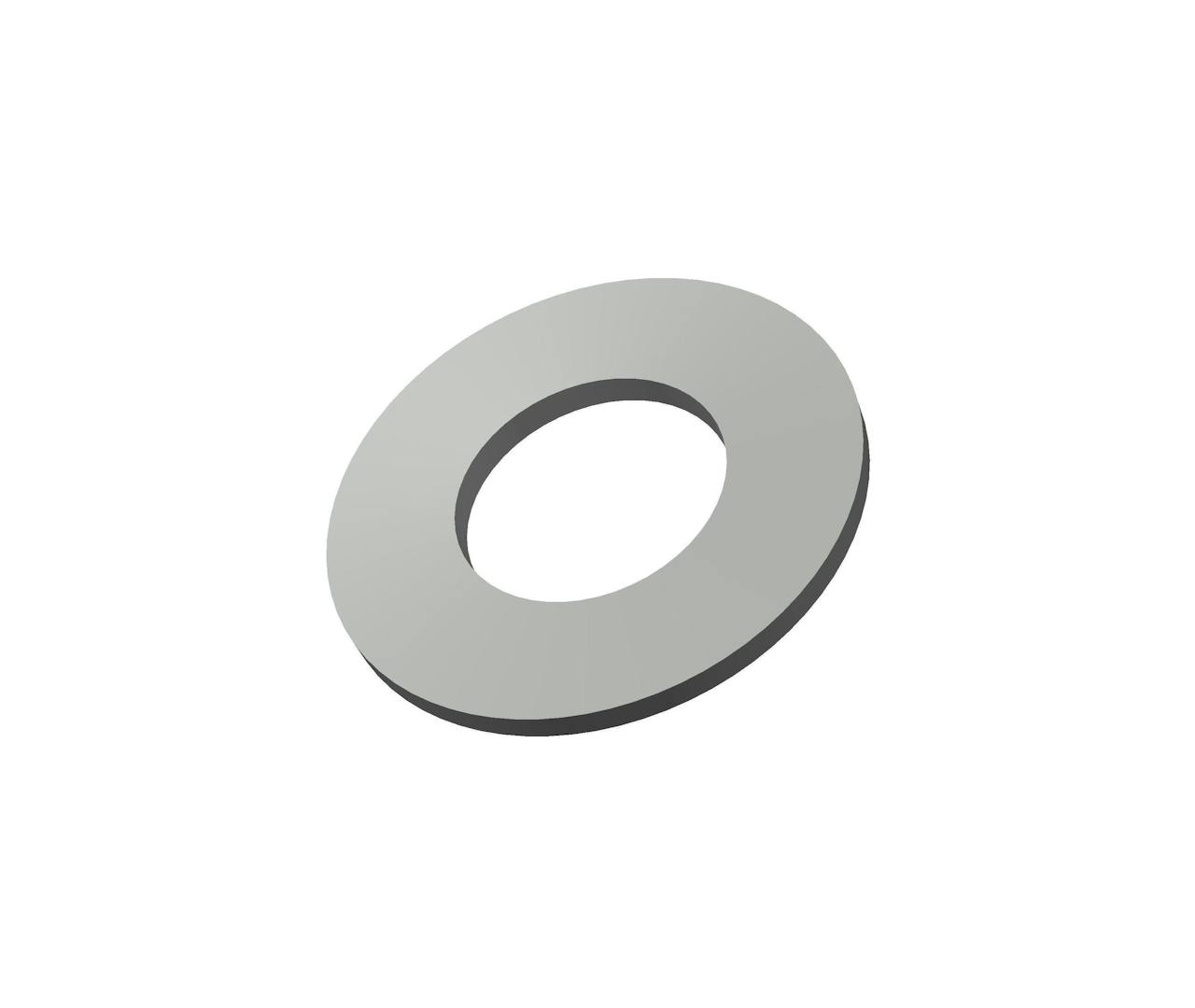

AM-136207 - 0.244 Inch ID 0.492 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.244 Inch and an outside diameter of 0.492 Inch.

Unit System
Specs (in standard)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 58 lb
Deflection at 100% Height 0.0119 in
Deflection at 50% Height 0.006 in
Deflection at 75% Height 0.009 in
Display Name AM-136207
Finish None
Inside Diameter 0.244 in
Load at 100% Height 206 lb
Load at 50% Height 110 lb
Load at 75% Height 159 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 0.492 in
Outside Height 0.0394 in
SKU AM-136207
T 0.0276 in
h/t 0.433 in
Specs (in metric)
Label Value
Brand Maryland Precision Spring
Calculated Load at Approximate Deflection 26.3 kg
Deflection at 100% Height 0.3 mm
Deflection at 50% Height 0.15 mm
Deflection at 75% Height 0.23 mm
Display Name AM-136207
Finish None
Inside Diameter 6.2 mm
Load at 100% Height 93.42 kg
Load at 50% Height 49.89 kg
Load at 75% Height 72.11 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 12.5 mm
Outside Height 1 mm
SKU AM-136207
T 0.7 mm
h/t 11 mm
