Maryland Precision Spring

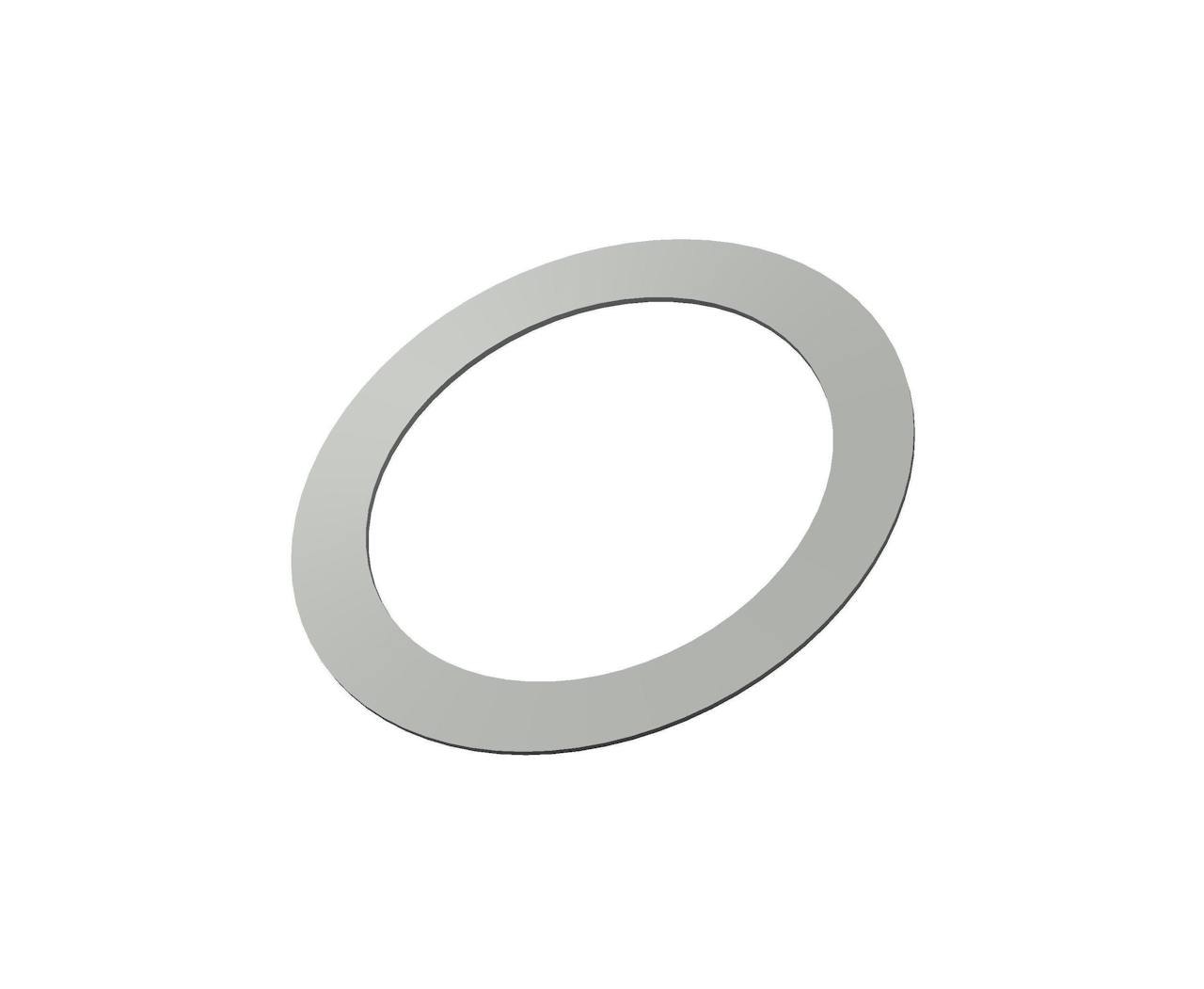

AK-6008 - 1.988 Inch ID 2.657 Inch OD 1075 Steel Disc Spring Washer

Disc spring manufactured from 1075 Steel with an inside diameter of 1.988 Inch and an outside diameter of 2.657 Inch.

Unit System
Specs (in standard)
Label Value
Ball Bearing Size 6008
Brand Maryland Precision Spring
Deflection at 75% Height 0.03 in
Display Name AK-6008
Finish Phosphate
Inside Diameter 1.988 in
Load at 75% Height 37.1 lb
Material 1075 Steel
Measurement Units Standard
Outside Diameter 2.657 in
Outside Height 0.067 in
SKU AK-6008
T 0.028 in
Specs (in metric)
Label Value
Ball Bearing Size 6008
Brand Maryland Precision Spring
Deflection at 75% Height 0.76 mm
Display Name AK-6008
Finish Phosphate
Inside Diameter 50.5 mm
Load at 75% Height 16.83 kg
Material 1075 Steel
Measurement Units Standard
Outside Diameter 67.49 mm
Outside Height 1.7 mm
SKU AK-6008
T 0.71 mm
