Maryland Precision Spring

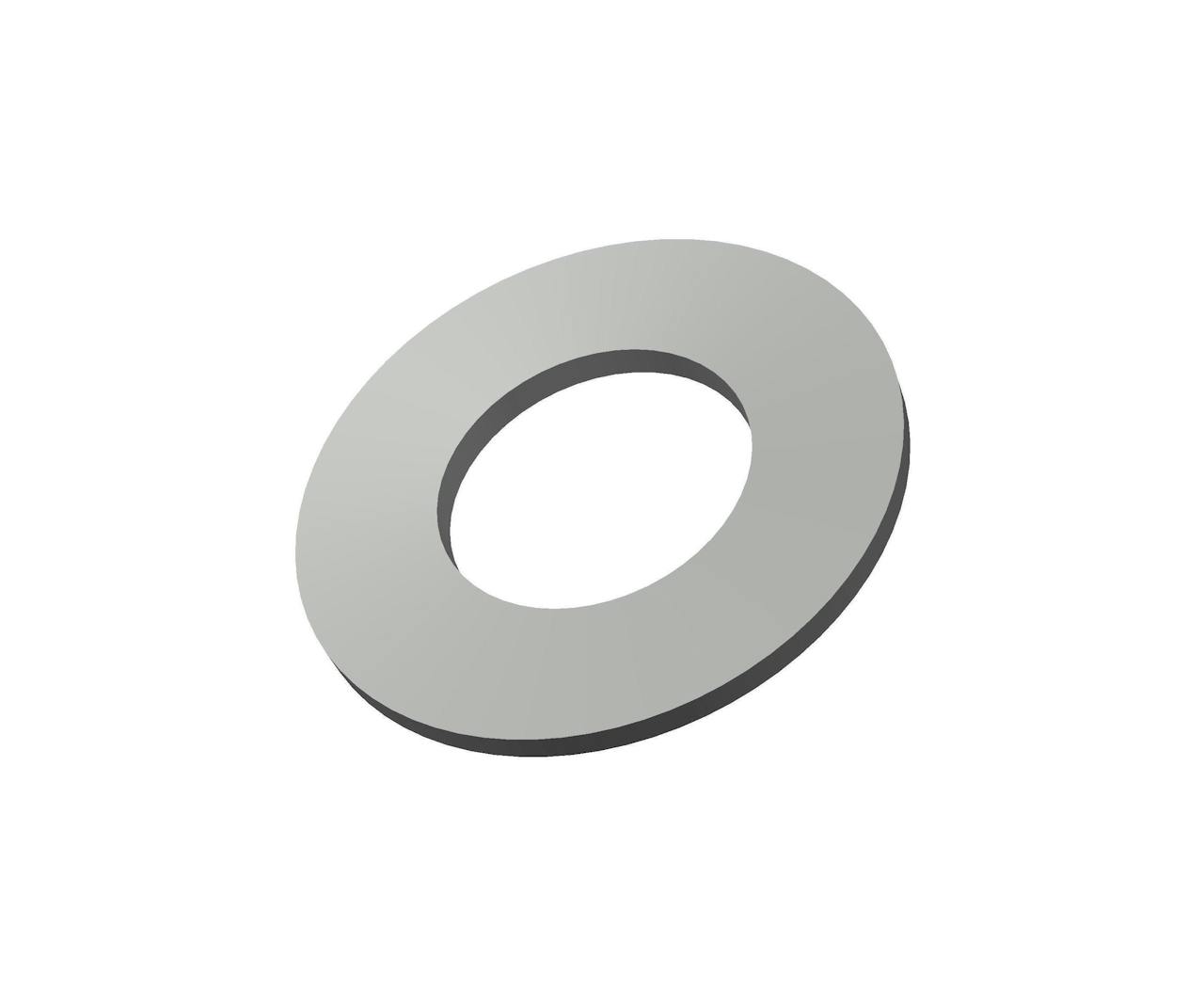

AI-623132 - 0.317 Inch ID 0.625 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.317 Inch and an outside diameter of 0.625 Inch.

Unit System
Specs (in standard)
Label Value
Bolt Size 0.3125
Brand Maryland Precision Spring
Display Name AI-623132
Finish Plain
H 0.016 in
Inside Diameter 0.317 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.016 in
Maximum Force at 100% Height 273 lb
Measurement Units Standard
Outside Diameter 0.625 in
Outside Height 0.048 in
SKU AI-623132
T 0.032 in
Specs (in metric)
Label Value
Bolt Size 0.31
Brand Maryland Precision Spring
Display Name AI-623132
Finish Plain
H 0.41 mm
Inside Diameter 8.05 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.41 mm
Maximum Force at 100% Height 123.81 kg
Measurement Units Standard
Outside Diameter 15.88 mm
Outside Height 1.22 mm
SKU AI-623132
T 0.81 mm
