Maryland Precision Spring

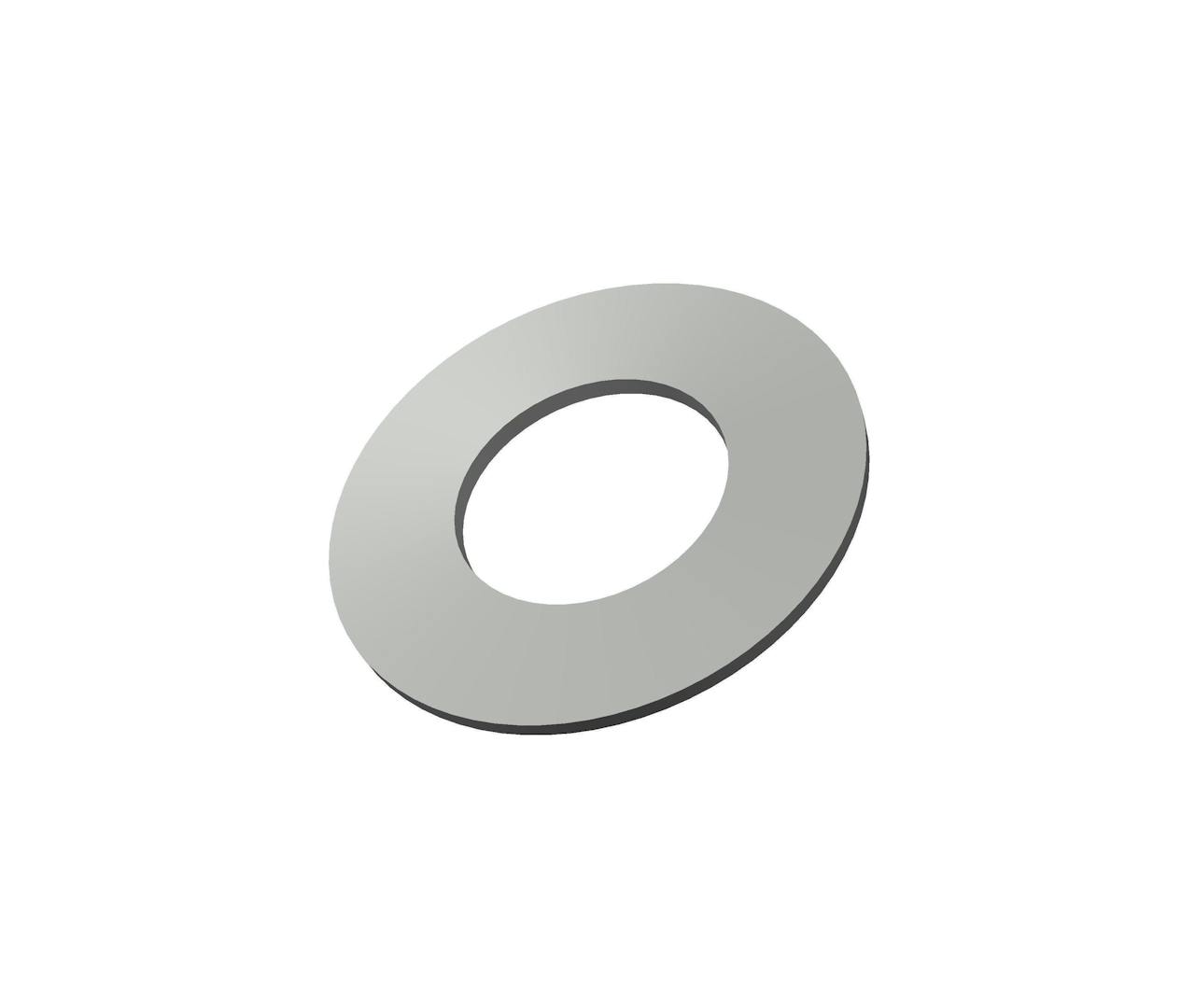

AI-311511 - 0.156 Inch ID 0.312 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.156 Inch and an outside diameter of 0.312 Inch.

Unit System
Specs (in standard)
Label Value
Bolt Size #6
Brand Maryland Precision Spring
Display Name AI-311511
Finish Plain
H 0.011 in
Inside Diameter 0.156 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.011 in
Maximum Force at 100% Height 30 lb
Measurement Units Standard
Outside Diameter 0.312 in
Outside Height 0.022 in
SKU AI-311511
T 0.011 in
Specs (in metric)
Label Value
Bolt Size #6
Brand Maryland Precision Spring
Display Name AI-311511
Finish Plain
H 0.28 mm
Inside Diameter 3.96 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.28 mm
Maximum Force at 100% Height 13.61 kg
Measurement Units Standard
Outside Diameter 7.92 mm
Outside Height 0.56 mm
SKU AI-311511
T 0.28 mm
