Century Spring

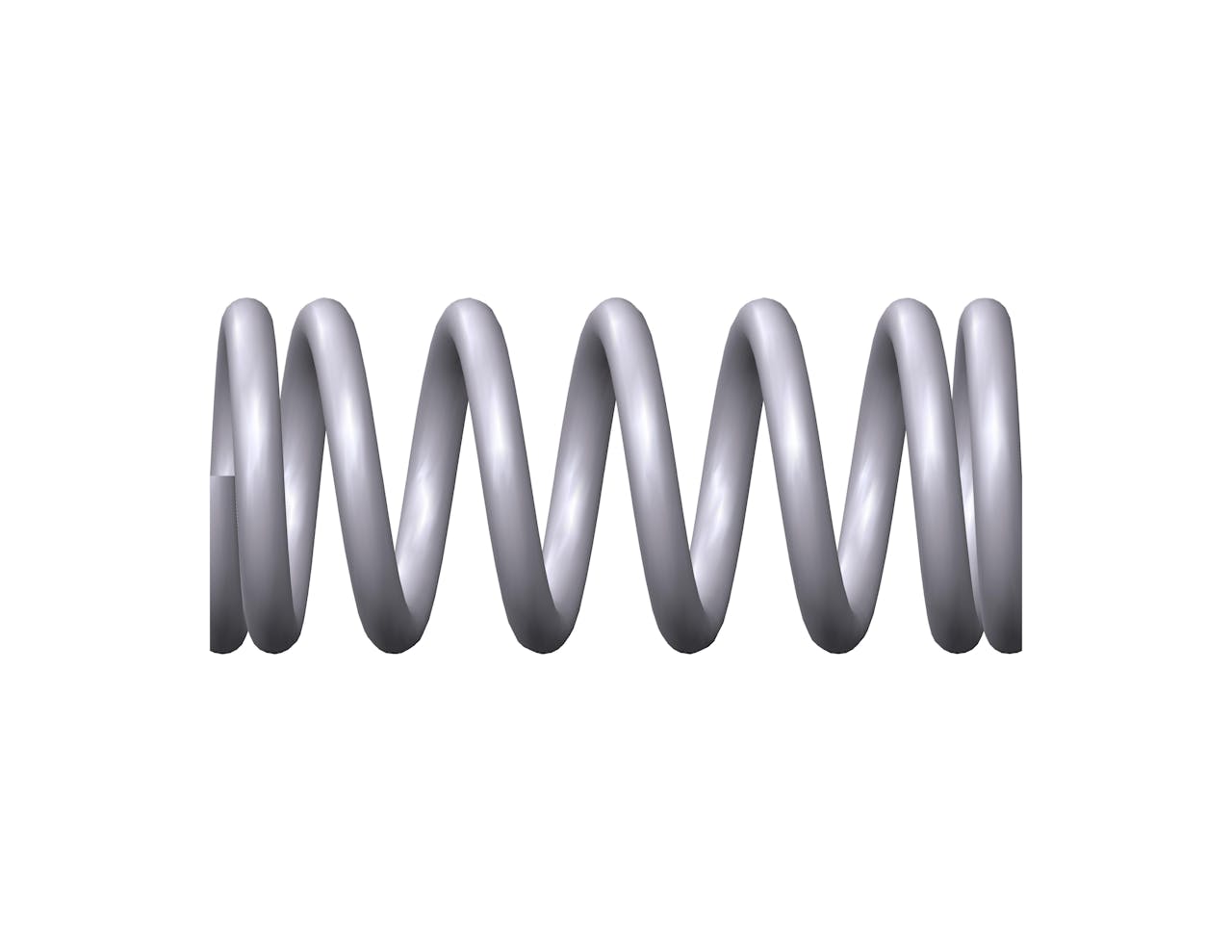

75754CS - 1.299" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 7.5 coils and closed & ground ends. This spring features an O.D. of 0.571", and an I.D. of 0.411".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75754
Ends Closed & Ground
Finish Zinc
Free Length 1.299 in
Inside Diameter 0.411 in
Material Music Wire
Outside Diameter 0.571 in
Part Type Metric
Rate 87.96 lbs/in
SKU 75754CS
Solid Length 0.591 in
Suggested Max Deflection 0.454 in
Suggested Max Load 39.934 lbf
Total Coils 7.5
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75754
Ends Closed & Ground
Finish Zinc
Free Length 32.99 mm
Inside Diameter 10.44 mm
Material Music Wire
Outside Diameter 14.5 mm
Part Type Metric
Rate 15.4 N/mm
SKU 75754CS
Solid Length 15.01 mm
Suggested Max Deflection 11.53 mm
Suggested Max Load 177.63 N
Total Coils 7.5
Wire Diameter 2.03 mm
The 75754 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75754CS compression spring is designed with a free length of 0.886" total of 5.5 coils, and a rate of 123.583 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75754 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
