Century Spring

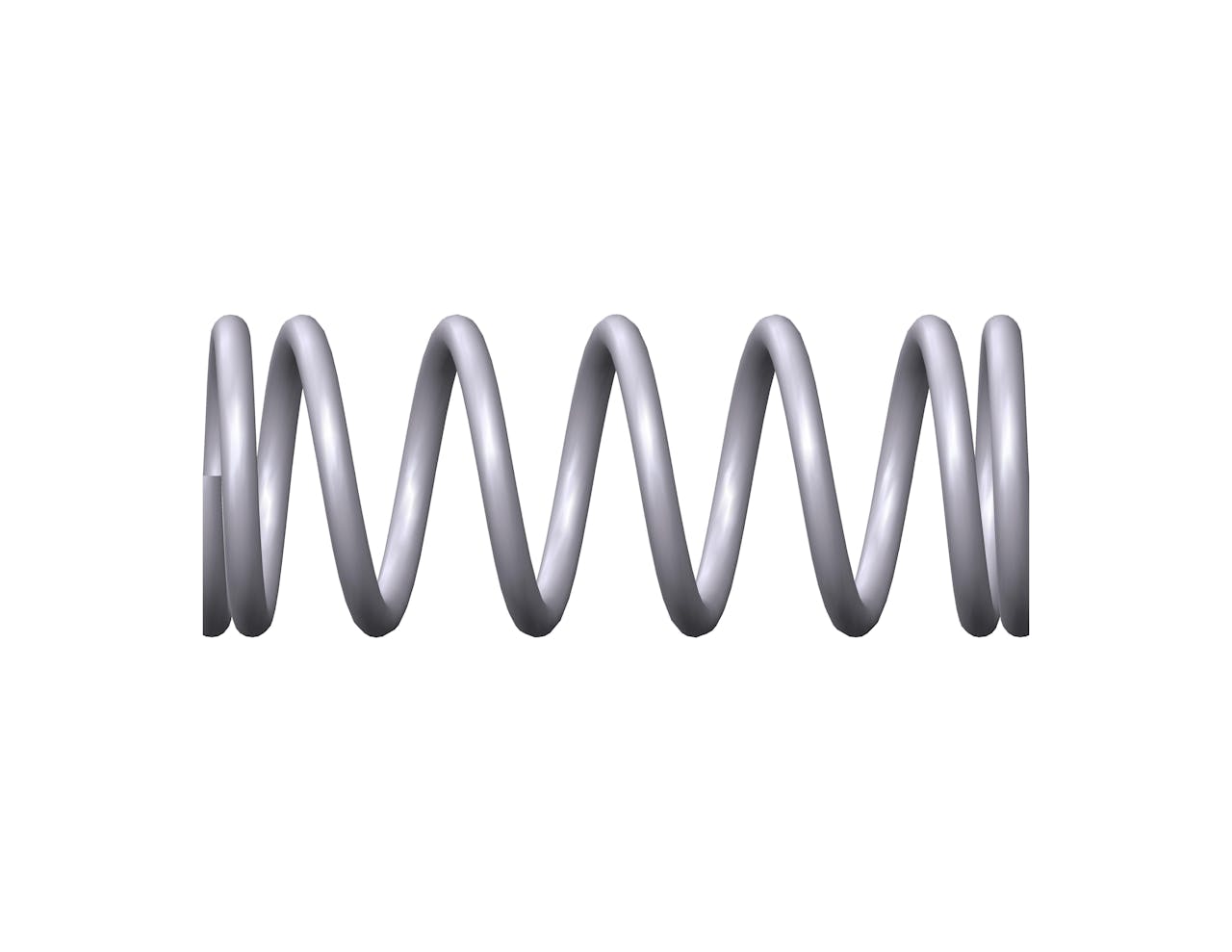

75724CS - 1.417" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 7.5 coils and closed & ground ends. This spring features an O.D. of 0.555", and an I.D. of 0.43".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75724
Ends Closed & Ground
Finish Zinc
Free Length 1.417 in
Inside Diameter 0.43 in
Material Music Wire
Outside Diameter 0.555 in
Part Type Metric
Rate 36.028 lbs/in
SKU 75724CS
Solid Length 0.472 in
Suggested Max Deflection 0.614 in
Suggested Max Load 22.121 lbf
Total Coils 7.5
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75724
Ends Closed & Ground
Finish Zinc
Free Length 35.99 mm
Inside Diameter 10.92 mm
Material Music Wire
Outside Diameter 14.1 mm
Part Type Metric
Rate 6.31 N/mm
SKU 75724CS
Solid Length 11.99 mm
Suggested Max Deflection 15.6 mm
Suggested Max Load 98.39 N
Total Coils 7.5
Wire Diameter 1.59 mm
The 75724 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75724CS compression spring is designed with a free length of 0.945" total of 5.5 coils, and a rate of 47.18 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75724 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
