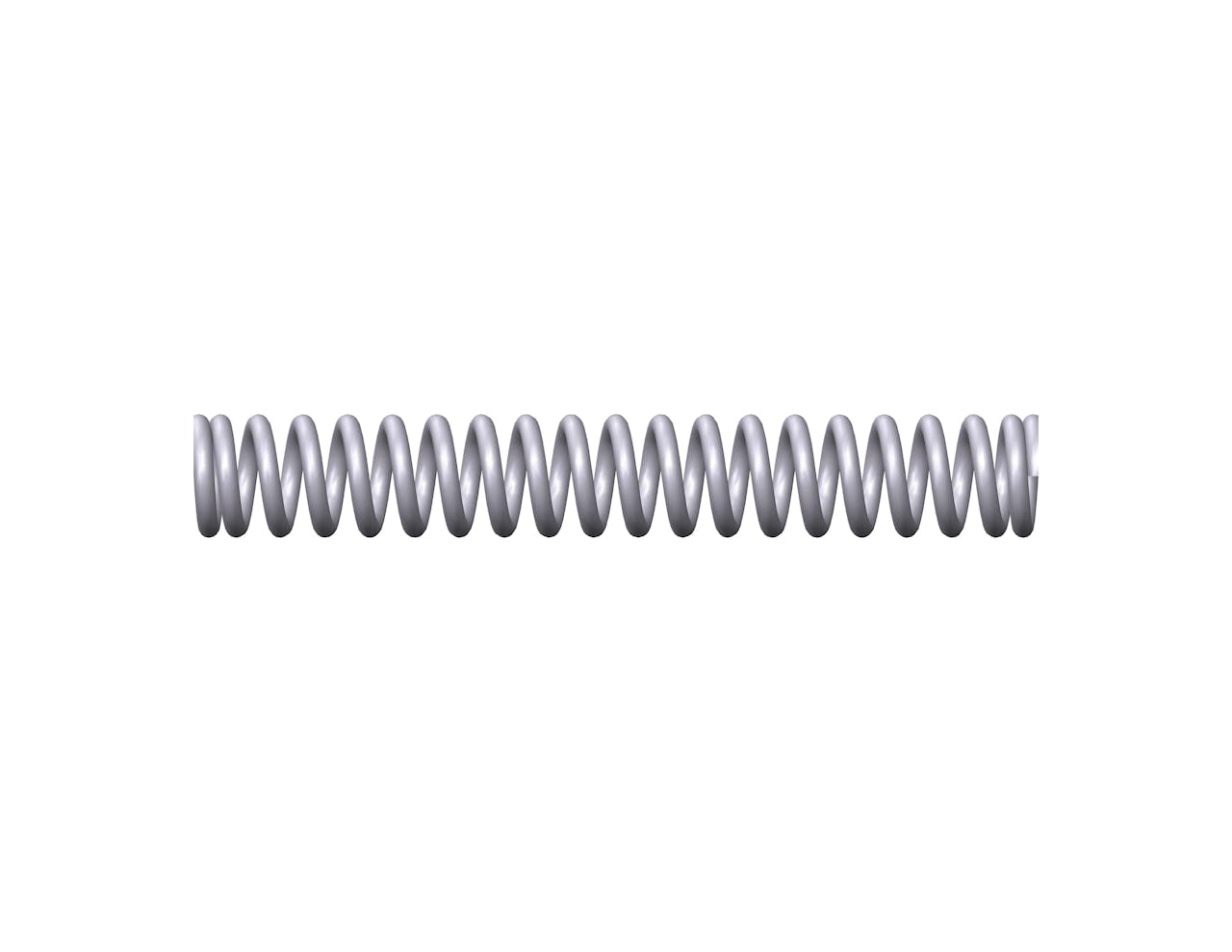

75717CS - 2.579" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 20.5 coils and closed & ground ends. This spring features an O.D. of 0.378", and an I.D. of 0.253".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75717 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 2.579 in |
| Inside Diameter | 0.253 in |
| Material | Music Wire |
| Outside Diameter | 0.378 in |
| Part Type | Metric |
| Rate | 40.86 lbs/in |
| SKU | 75717CS |
| Solid Length | 1.291 in |
| Suggested Max Deflection | 0.768 in |
| Suggested Max Load | 31.38 lbf |
| Total Coils | 20.5 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75717 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 65.51 mm |
| Inside Diameter | 6.43 mm |
| Material | Music Wire |
| Outside Diameter | 9.6 mm |
| Part Type | Metric |
| Rate | 7.15 N/mm |
| SKU | 75717CS |
| Solid Length | 32.79 mm |
| Suggested Max Deflection | 19.51 mm |
| Suggested Max Load | 139.58 N |
| Total Coils | 20.5 |
| Wire Diameter | 1.59 mm |
The 75717CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0625" diameter music wire, the 75717 spring design exhibits reliable strength across its 20.5 active coils, withstanding repeated compression cycles with a maximum load of 31.38 lbf without succumbing to fatigue.
We manufacture the 75717 design to provide a compression spring that is 2.579" long at rest and provides a consistent rate of 40.86 lbs/in along its recommended maximum of 0.768" deflection. For best results, your application should fully accommodate the inner (0.253") and outer (0.378") diameters of this spring and be designed for its closed & ground end configuration.
We manufacture the 75717 design to provide a compression spring that is 2.579" long at rest and provides a consistent rate of 40.86 lbs/in along its recommended maximum of 0.768" deflection. For best results, your application should fully accommodate the inner (0.253") and outer (0.378") diameters of this spring and be designed for its closed & ground end configuration.
